STEERING BALL JOINT FOR JOHN DEERE AL161301

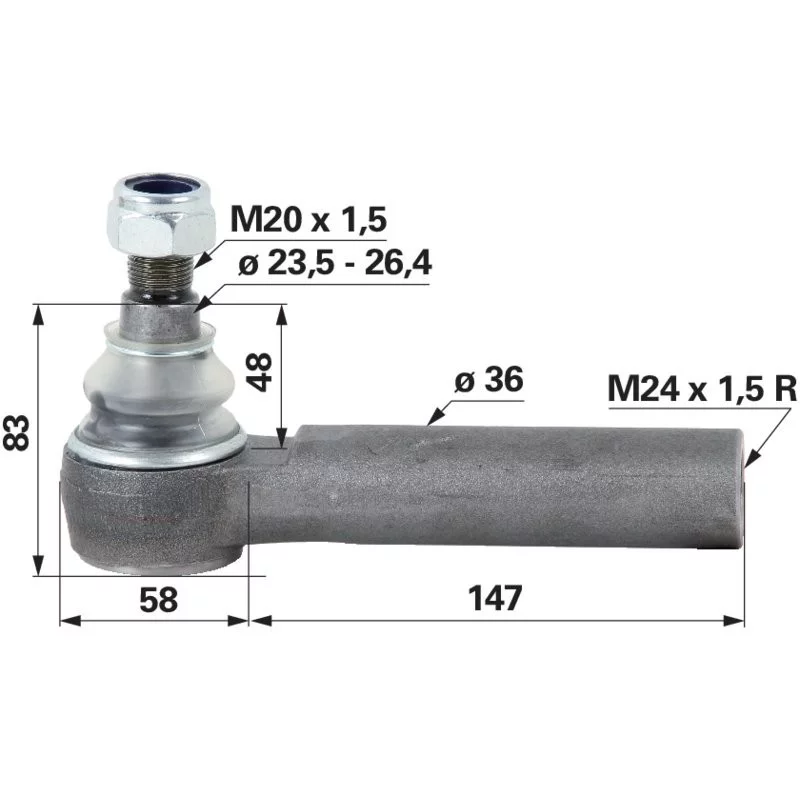

Steering Ball Joint for John Deere Tractors, Part Number AL161301

The steering ball joint with part number AL161301 is a connecting component designed for use in numerous John Deere applications. It is intended for buyers who need to replace a worn steering ball joint and should carefully verify compatibility based on tractor model and comparison part numbers. This part number is listed for several tractor families, with variations depending on region and model.

What is the function of this ball joint in the steering system?

A steering ball joint is located within the steering linkage. Its general function is to connect a control component to a moving pivot point on the front axle. On a tractor, this part operates in an area subjected to stress during every maneuver, whether turning or driving straight.

When a ball joint needs to be replaced, correctly identifying the part number is essential. For this type of part, the specific tractor model, series, version suffix, and sometimes the region of use are just as important as the part designation itself.

Documented John Deere Applications for This Part Number

This ball joint is designed for use on many John Deere tractors. A detailed list of the main compatible models is included with the data sheet. Other specific applications are also listed in the source:

• 04 (China): 1204 (China), 1404 (China), JD1354-A (China)
• 6003: 6403 (Mexico, South Africa, Asia), 6403 (North America), 6603 (North America)
• 6B: 6110B (China), 6120B (Asia), 6135B (Russia and Asia), 6140B (Asia), 6B-1404 (China)
• 6E: 6105E FT4 (Worldwide), 6120E FT4 (Worldwide), 6135E FT4 (Worldwide)

The source also mentions specific European versions: 6515 (Europe) (DANA 730/113, 733/106, 730/135, 733/101, 733/139, 730/133) and 6525 (Europe) (DANA 733/135). For these assemblies, the tractor model and its axle version should be carefully verified before ordering.

Useful part numbers to confirm the correct part

This ball joint can be identified using several reference numbers. In addition to AL161301, the part numbers listed in the source include 551916, AL161338, AL204776, AL204780, AL204774, VPJ3587, 26/495-191, S.58739, S58739, and 87583742.

These part numbers are useful when comparing the removed part, a previous maintenance record, or a part number already noted on your machine. They do not replace verifying the exact model, especially for tractors available in European, North American, Worldwide, Chinese, or Asian versions.

Choose Carefully Before Replacement

To select this steering ball joint, first verify the part number you’re looking for, then confirm the exact tractor application, including any applicable suffixes: L, SE, PR, D, B, E, iT4, or FT4, depending on the documented specifications. If your machine is listed and the part numbers match, you have a clear basis for identifying the correct part.

Compatibility by Brand and Series

John Deere · Tractor

• 6020
• 6020S
• 6020SE
• 6100D
• 6105D iT4
• 6110D
• 6115D
• 6120
• 6120L
• 6120SE
• 6125D
• 6130
• 6130D
• 6130D iT4
• 6140D
• 6215
• 6220
• 6220L
• 6220SE
• 6225
• 6230
• 6230PR
• 6320
• 6320L
• 6320SE
• 6325
• 6330
• 6330PR
• 6415
• 6420
• 6420L
• 6420S
• 6420SE
• 6425
• 6430
• 6430PR
• 6515
• 6520L
• 6525

John Deere

• 04 (China)
• 1204 (China)
• 1404 (China)
• JD1354-A (China)
• 6003
• 6403 (Mexico
• South Africa
• Asia
• 6403 (North America)
• 6603 (North America)
• 6005
• 6215 (Europe)
• 6215 (North America)
• 6225 (Europe)
• 6325 (Europe)
• 6415 (North America)
• 6425 (Europe)
• 6425 (Mexico)
• 6515 (Europe) (DANA 730/113
• 733 /106
• 730/135
• 733/101
• 733/139
• 730/133)
• 6525 (Europe) (DANA 733/135)
• 6020 (Europe)
• 6020S (Europe)
• 6020SE (Europe)
• 6120 (Europe)
• 6120 (North America)
• 6120L (North America)
• 6120SE (Europe)
• 6220 (Europe)
• 6220 (North America)
• 6220L (North America)
• 6220SE (Europe)
• 6320 (Europe)
• 6320 (North America)
• 6320L (North America)
• 6320SE (Europe)
• 6420 (Europe)
• 6420 (North America)
• 6420L (North America)
• 6420S (Europe)
• 6420SE (Europe)
• 6520L (North America)
• 6030
• 6130 (Europe)
• 6230 (Europe)
• 6230 (North America)
• 6230PR (Europe)
• 6230PR (North America)
• 6330 (Europe)
• 6330 (North America)
• 6330PR (Europe)
• 6330PR (North America)
• 6430 (Europe)
• 6430 (North America)
• 6430PR (Europe)
• 6430PR (North America)
• 6B
• 6110B (China)
• 6120B (Asia)
• 6135B (Russia and Asia)
• 6140B (Asia)
• 6B (China)
• 6B-1404 (China)
• 6D
• 6100D (Worldwide)
• 6105D iT4 (North America)
• 6110D (Worldwide)
• 6115D (Worldwide)
• 6125D (Worldwide)
• 6130D (Worldwide)
• 6130D iT4 (North America)
• 6140D (Worldwide)
• 6E
• 6105E FT4 (Worldwide)
• 6120E FT4 (Worldwide)
• 6135E FT4 (Worldwide)

FAQ — Frequently Asked Questions

What is the purpose of a steering ball joint like part number AL161301?

This steering ball joint connects a component of the steering linkage to its pivot point on the tractor. It helps ensure proper steering of the front axle during maneuvers. When it becomes loose or worn, it must be replaced with a part that has the correct part number.

Is this ball joint intended for a John Deere 6230PR (Europe) or 6430PR (North America)?

Yes, both of these applications are explicitly listed for this ball joint. However, when identifying the part, you must ensure that the PR suffixes and the applicable region (Europe or North America) are correct, as the same model base may have different configurations depending on the version.

What other John Deere models are explicitly listed for this ball joint?

In addition to the 6020, 6030, and 6D series and associated models, the source also lists the 1204 (China), 1404 (China), JD1354-A (China), 6403 (North America), 6603 (North America), 6110B (China), 6120B (Asia), 6135B (Russia and Asia), 6140B (Asia), 6105E FT4 (Worldwide), 6120E FT4 (Worldwide), and 6135E FT4 (Worldwide).

What part numbers can be used as references for this steering ball joint?

This ball joint can be identified by several reference numbers, including AL161301, 551916, AL161338, AL204776, AL204780, AL204774, VPJ3587, 26/495-191, S.58739, S58739, and 87583742. The best approach is to cross-reference the part number on the removed part with the exact tractor model.

The original replacement part numbers and brands are provided for comparison purposes only. This does not imply that these are original parts.
