VERIN A GAZ

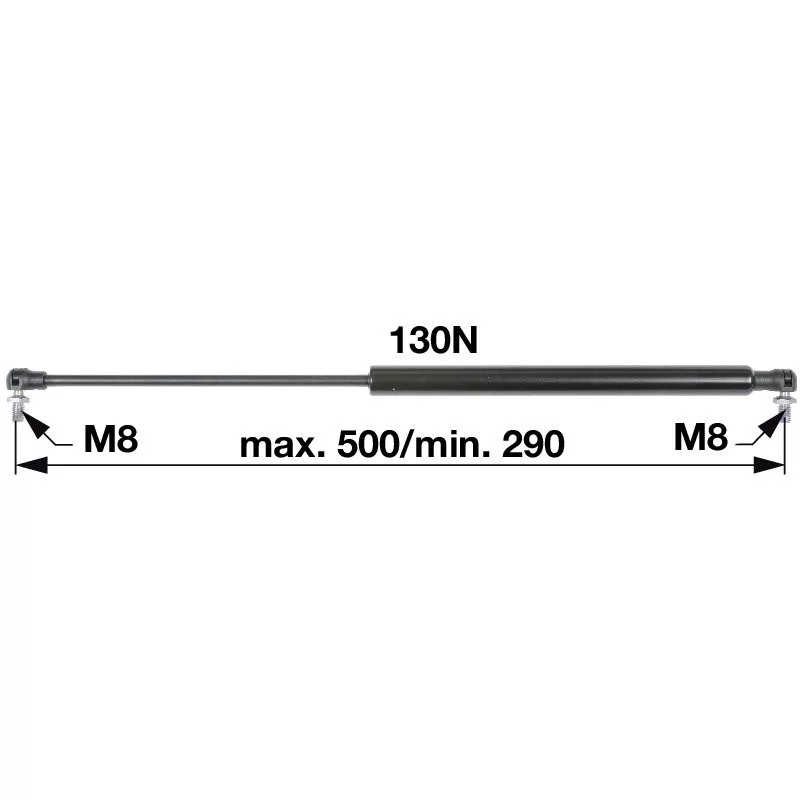

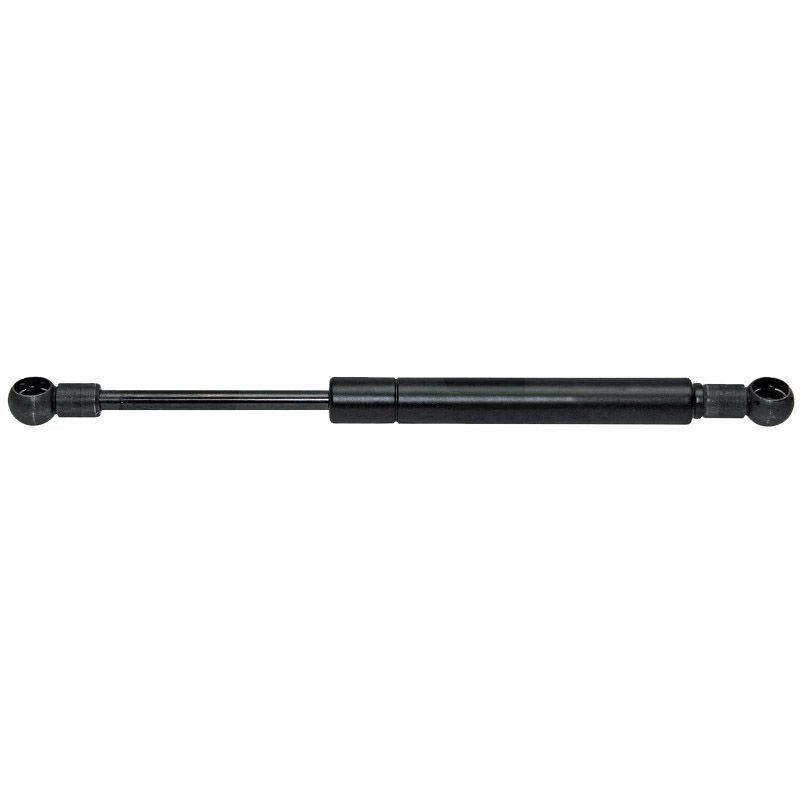

Gas spring, 500 mm long - 130 N - Part No. AL114803

The L 500 mm - 130N gas spring (Ref. AL114803) is an essential component for opening and holding rear doors or windows in place on various models of agricultural tractors. Designed to meet the needs of professional users, this cylinder combines durability, precision, and ease of installation.

Technical specifications of the gas spring

• Original part numbers: AL114803, AL81578

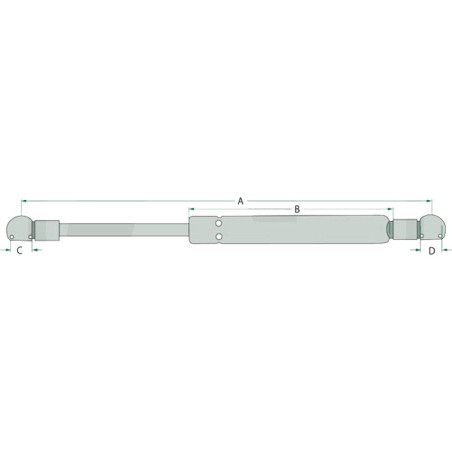

• Total length (A): 500 mm

• Compressed length (B): 250 mm

• Mounting hole diameter (C and D): 8 mm

• Force: 130 Newtons

• Application: Securing rear doors or windows

This gas spring is designed to ensure optimal resistance to mechanical stress while offering a long service life, even under heavy use.

Compatible with John Deere and IH Case

Gas spring Ref. AL114803 is compatible with a wide range of John Deere and IHCase tractors. The following models are compatible:

John Deere Compatibility

• 5020 Series: 5220, 5320, 5420, 5520

• 6000 Series: 6100, 6100SE, 6200 (Europe), 6200 (USA), 6200SE, 6300 (Europe), 6300 (USA), 6300SE, 6400 (Europe), 6400 (USA), 6400SE, 6506, 6600, 6800, 6900

• 7000 Series: 7600, 7700, 7800

• 7010 Series: 7610, 7710 (6081H), 7710 (6081T), 7810 (Brazil), 7810 (USA - 6081T), 7810 (USA - 6081H)

• 8030 Series: 8430T, 8530

Case IH Compatibility

• 3000 Series: 3210, 3220, 3230

• 33 Series: 433, 533, 633, 733, 833

• 4000 Series: 4210, 4220, 4230, 4240

Functions of the gas spring for doors and windows

The gas strut plays an essential role in the system for closing and opening rear doors or windows:

1. Opening assistance: The strut makes it easier to open doors and windows by reducing the effort required.

2. Holding in the open position: Once open, it holds the door or window in place to ensure safety and ease of use.

3. Stress reduction: It absorbs vibrations and shocks, thereby extending the service life of associated components.

Gas spring: a high-performance alternative

Gas springs are often used for the same applications as gas cylinders, particularly to hold moving parts in position. Thanks to their effective stroke and appropriate response, these components ensure reliable operation in agricultural and industrial systems.

50 kg gas cylinder: power and adaptability

For applications requiring greater force, 50 kg gas cylinders provide a precise and robust solution for heavier systems. With an appropriate cylinder stroke, they are ideally suited for demanding applications.

500 mm stroke gas spring: long-stroke solution

The 500 mm stroke gas spring is specially designed for systems requiring a longer opening. Its effective stroke optimizes response and adapts to the force and dimensional requirements of large doors or windows.

Installation and Maintenance Tips

Installation

• Make sure the actuator is mounted in the correct orientation for optimal opening.

• Securely fasten the ends using the original mounting points (standardeye diameter ).

• Test the operation to verify opening and position retention.

Maintenance

• Regularly check the condition of the actuator for signs of wear.

• Clean the fasteners to prevent dust buildup.

• Ensure the cylinder is functioning properly before each use.

Why choose Camagris for your cylinders?

At Camagris, we offer high-quality parts tailored to the needs of farmers and professionals:

• Reliable and durable products: Designed for heavy-duty use.

• Guaranteed compatibility: Parts compatible with your John Deere and IH Case.

• High-performancestore services for optimal customer satisfaction.

• Fast delivery: Shipping throughout Europe to minimize your downtime.

Conclusion

The L 500 mm - 130N gas spring (Ref. AL114803 ) is an ideal solution for the rear doors and windows of John Deere and IHCase s. Combining durability, ease of installation, and perfect compatibility, it ensures smooth and long-lasting operation. Whether you need a gas spring, a 50 kg gas cylinder, or a 500 mm stroke model, Camagris offers reliable products tailored to your needs. Order today from Camagris to enjoy fast delivery and excellent value for money.
