WELD-ON FASTENER FOR JCB QFIT, 12 MM THICK

The weld-on mounting bracket for JCB QFIT is a raw mounting plate designed for adapting or manufacturing material-handling attachments. This part is intended for JCB front loaders and telehandlers equipped with the QFIT system. Its 12-mm thickness serves as a useful reference for replacing a worn attachment or preparing a new tool to be welded directly in the workshop.

A Weld-On Interface for the QFIT Quick Coupler

This mounting plate creates the interface between the attachment and the machine’s quick coupler. Once welded to the mounting bracket, it makes the attachment compatible with JCB equipment featuring the QFIT system. It is suitable when you need to adapt an existing attachment or fabricate a custom assembly without replacing the entire attachment.

It is particularly suited to the following applications:

• converting a standard bucket into a QFIT-compatible version;
• adapting a tool from another brand;
• repairing or replacing a worn mounting plate;
• creating a custom tool for farm work.

Common applications on front-end loaders and telehandlers

This weld-on plate can be used on various material-handling attachments, depending on your workshop project. It can be mounted on a bucket, a fork, a grapple, or any other tool designed to be attached via a QFIT coupling.

This type of part meets the needs encountered in agriculture, agricultural cooperatives (CUMA), or on farm and construction sites, when the goal is to adapt equipment already in service. The main benefit is keeping the tool functional while making it compatible with the machine’s existing interface.

Key Considerations for Selecting the Right Attachment

To choose this part number, there are three key points to check first: the type of weld-on hitch, whether the machine is equipped with the QFIT system, andthe 12-mm thickness. These factors ensure that the mounting plate is suitable for your fabrication or replacement project.

The compatibility listed applies to JCB equipment equipped with the QFIT system. If your loader or telehandler uses a different attachment interface, this attachment will not be suitable. In the absence of a detailed model list, checking the attachment system remains the essential criterion.

Points to Note Before Welding

Before assembly, it is important to verify alignment with the QFIT system as well as the squareness of the attachment. A weld designed to withstand lifting loads and careful installation help minimize unwanted stresses during use.

You must also adhere to the load capacities of the front loader or telehandler, as well as those of the implement to which the mounting plate is welded. If you are replacing an existing attachment or fabricating a new one, first check the type of interface and the thickness of the part before proceeding.

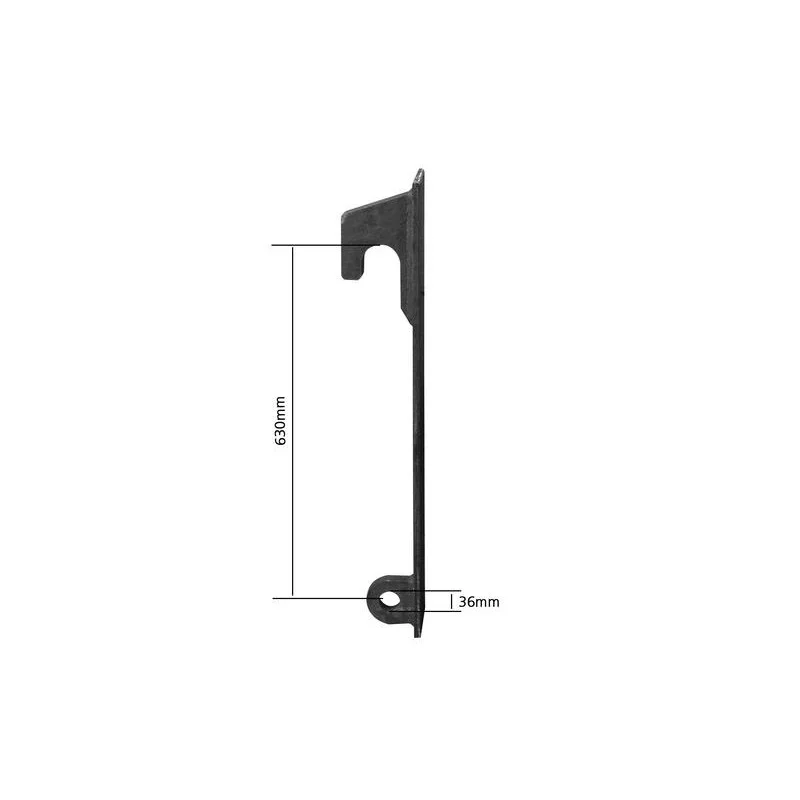

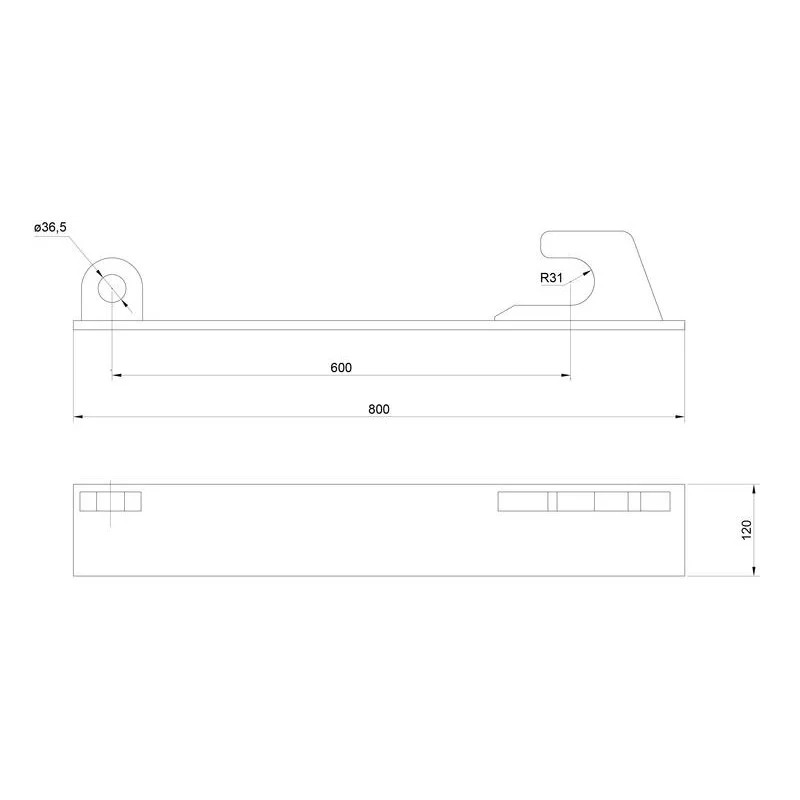

Dimensions and Technical Specifications

• Thickness: 12 mm
• Thickness: 12 mm

FAQ — Frequently Asked Questions

What is a QFIT weld-on attachment for JCB used for?

It is used to make an attachment compatible with the QFIT quick-hitch system on JCB loaders and telehandlers. This raw mounting plate is welded onto a bucket, fork, grapple, or custom-built tool to allow it to be attached to a machine equipped with this system.

Is this mounting bracket compatible with all JCB loaders and telehandlers?

It is designed for JCB equipment equipped with the QFIT system. The key factor, therefore, is not just the machine’s brand, but the presence of this attachment interface. If your machine does not have QFIT, you will need to identify a different type of adapter plate.

Why is the 12-mm thickness important when choosing this attachment?

The 12 mm thickness is a key factor for replacing an existing mount or fabricating a custom bracket. It must match your fabrication requirements and the available space on the attachment. Compare this measurement with the mounting plate you’re replacing or with your workshop drawing.

To which accessories can this attachment be welded?

This attachment is designed for adapting or manufacturing material-handling accessories. It can be welded to a bucket, a fork, a clamp, or any other tool to be equipped with QFIT. Before welding, check the alignment and squareness to avoid stress during assembly.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that they are original parts.
