RIGHT BRAKE SPACER FOR CASE, FIAT, FORD, AND NEW HOLLAND, PART NO. 5176976

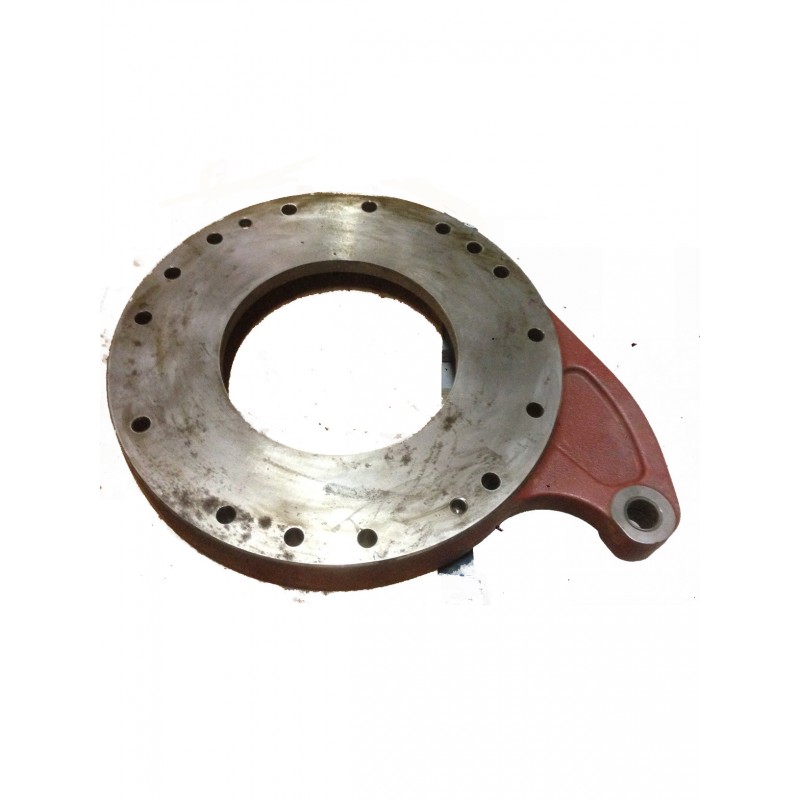

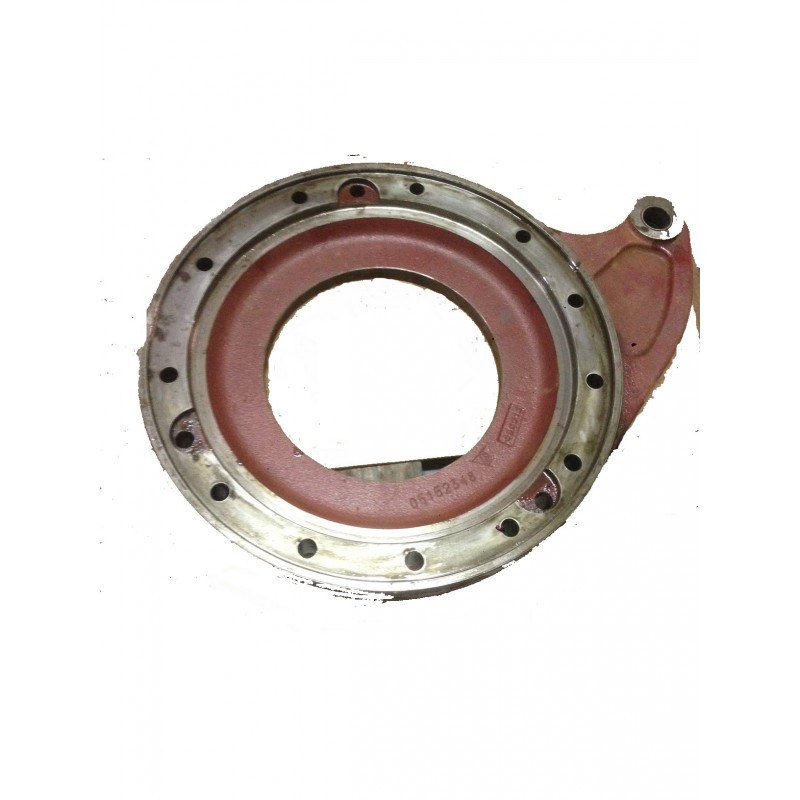

Right Brake Spacer 5176976 for Case, Fiat, Ford, and New Holland tractors

The right brake spacer 5176976 is a spacer designed for certain tractors Case, Fiat, Ford, and New Holland. It occupies the designated position in the right-side brake assembly to maintain the expected stacking and spacing between the assembled components. For this family of parts, the part number and the designation “right” are the first two selection criteria.

Role of this spacer in the brake assembly

A spacer is placed between two parts when the assembly requires a specific gap or intermediate support. In a brake assembly, it helps ensure the correct positioning of components according to the original design.

The “right” designation is not incidental. It is used to identify the relevant side on the machine. A left-hand version and a right-hand version may have different functions, even if their designations are similar. When reassembling, using the correct spacer prevents the assembly’s position from being altered.

Known applications for part number 5176976

This part number is associated with several families of agricultural tractors. It is specifically documented for MXM-Case , M-seriesFiat , Winner F-Fiat , Ford 60-series, and New Holland TM-series.

• Case : models in the MXM family, from the MXM120 to the MXM180, as per the detailed list.
• Fiat : M Series and Winner F line, including several DT versions.
• Ford: documented applications on the 8160, 8260, and 8360.
• New Holland: Applications listed for several TM models, from the TM115 to the TM165, as per the listed models.

This wide range of applications makes the reference guide useful when searching for a part by its part number rather than by a single measurement.

Useful guidelines for selecting the correct part

The first thing to check is part number 5176976. The second is the right side of the assembly. The third is the tractor’s full model designation, without simplifying the series or omitting any variants.

With this type of component, confusion between two similar models can be enough to cause an incorrect assembly. If you have an exploded view or parts documentation, compare the spacer’s location before confirming the part. This helps confirm the part’s position within the brake assembly and prevents you from mixing up the right and left sides.

When to Consider Replacement

Replacement often occurs during the overhaul of an assembly that has already been disassembled. A missing, marked, deformed, or worn spacer on its contact surfaces can complicate reassembly and alter the intended positioning.

If you’re working on the braking system of a compatible tractor, take advantage of the disassembly to check the condition of the part currently in place. To avoid misidentification, refer to the part number, the right-hand side, and the exact model designation of your machine before selecting this spacer.

Compatibility by Make and Model

Case · Tractor

• MXM120
• MXM130
• MXM135
• MXM140
• MXM150
• MXM155
• MXM165
• MXM180

Fiat · Tractor

• M100
• M115
• M135
• M160
• Winner F100
• Winner F100DT
• Winner F110
• Winner F110DT
• Winner F115
• Winner F115DT
• Winner F120
• Winner F120DT
• Winner F130
• Winner F130DT
• Winner F140
• Winner F140DT

Ford · Tractor

• 8160
• 8260
• 8360

New Holland · Tractor

• TM115
• TM120
• TM125
• TM130
• TM135
• TM140
• TM150
• TM155
• TM165

MXM Series

• Fiat M Series
• Fiat Winner F
• Ford 60 Series and New Holland TM Series. A detailed list of compatible models is provided in the product compatibility section

CASE · MXM Series

• MXM 120, 130, 135, 140, 150, 155, 165, 180

FIAT · M Series

• M100, 115, 135, 160

FIAT · F Series

• F100 110 120 130 140

FORD · 60 Series

• 8160 8260 8360 8560
• NEW HOLLAND

Ford / New Holland

• Are the 8560 or the TM110 and TM180 covered?

FAQ — Frequently Asked Questions

What is the purpose of a right brake spacer on a tractor?

A right-side brake spacer is used to maintain the specified clearance between components of the brake assembly on that side. It is not a standard washer: its shape and function are designed for a specific assembly, which is why it is important to use the correct part number and ensure it is installed on the right side.

How can I verify that part number 5176976 is the correct fit for my assembly?

To verify correctly, cross-check three details: part number 5176976, the “right” designation, and the exact tractor model. If you disassemble the unit, also compare the part currently in place and its location to ensure the same stacking order when reassembling.

Is this spacer compatible with Winner F100DT to F140DT Fiat?

Yes, this part number is listed for several Winner Fiat, including the F100DT, F110DT, F115DT, F120DT, F130DT, and F140DT models. However, please verify that your machine matches the exact model listed and that the part you are looking for is for the right side of the assembly.

Do the Ford 8560 or the New Holland TM110 and TM180 apply here?

There appears to be a discrepancy among the available sources for these models. The main compatibility list confirms the Ford 8160, 8260, 8360, and New Holland TM115 through TM165, but not the 8560, TM110, or TM180. For these three models, it is essential to verify the part number before ordering.

The original replacement part numbers and brands are provided for comparison purposes only. This does not imply that they are original parts.
