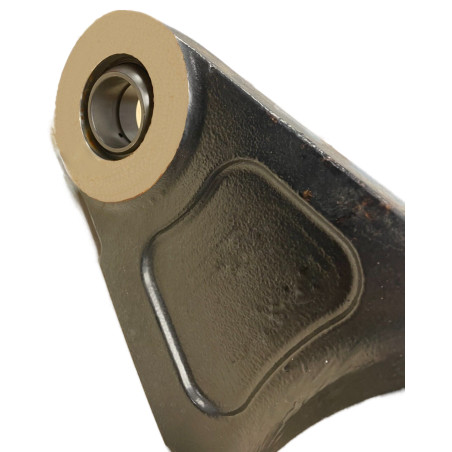

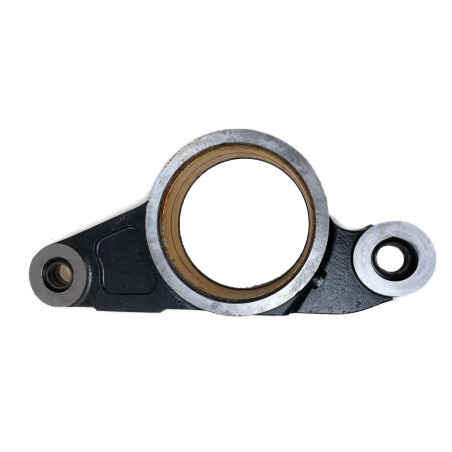

FRONT AXLE SUSPENSION ROD FOR NEW HOLLAND, CASE IH, AND STEYR

The complete front axle suspension link replaces the assembly found on many New Holland, Case IH, and Steyr tractors. This part number is intended to replace part 87383938 and is suitable when you are looking for a complete assembly that includes wear parts and mounting components, rather than a bare part that requires separate components.

An assembly designed for the front axle suspension

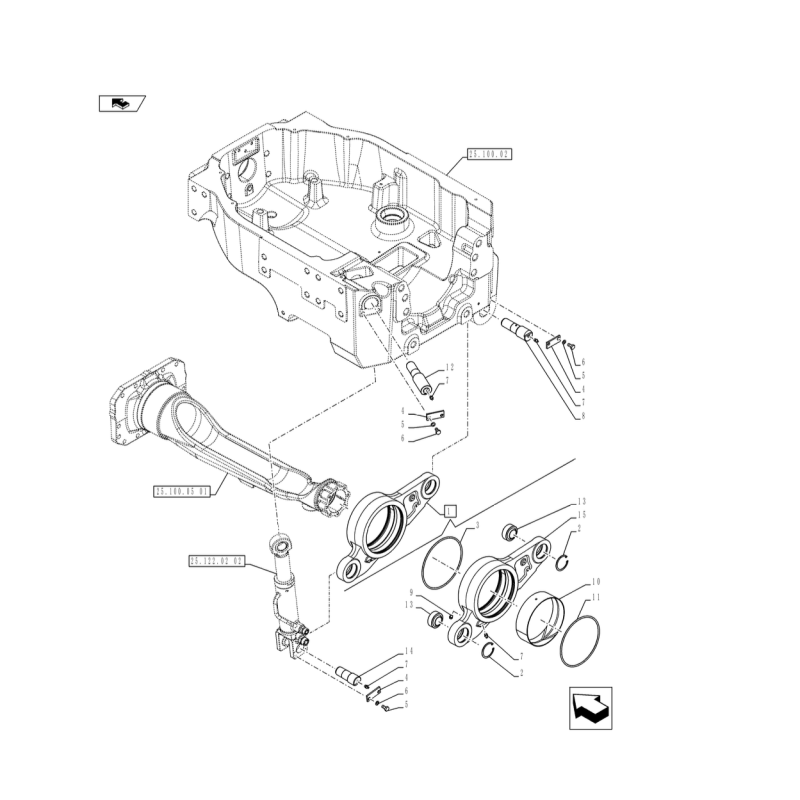

This connecting rod is located in the front axle suspension joint. In this type of assembly, its role is to help guide and support the assembly in conjunction with the other front-end components. When replacement is necessary, choosing a complete kit ensures you have all the components directly related to this assembly without having to start from an incomplete base.

The part number listed here includes the main components specified along with the control arm, ensuring a comprehensive repair of the entire assembly.

Items included with the connecting rod

• Wear ring 82020450: Ø 200 x 205 x 60 mm
• 2 spherical bearings 82016695: dimensions listed as Ø 60 and 62 x 35 mm
• 2 circlips 11061076: Ø 62 mm
• 2 O-rings: 14483280 and 70935219
• 1 grease fitting 13407211: M10 x 1 mm
• 1 valve 13411117

These components should be checked first if you are comparing your current assembly with the part you are looking for. The presence of the grease fitting and O-rings helps confirm that the configuration matches the one listed for this complete part number.

Useful reference points for identifying the correct version

To ensure you make the right choice, first refer to the replacement part number 87383938, then check the most distinctive dimensions of the assembly. The wear ring (Ø 200 x 205 x 60 mm), the bearings listed as Ø 60 and 62 x 35 mm, and the Ø 62 mm circlips are key points to check.

The source also mentions three associated pins to check during assembly:

• 87340146: 34 x 184 mm
• 87311698: 34 x 68 mm
• 87305641: 44 x 136 mm

These pins are listed as additional references. If you are working on a heavily worn assembly, inspecting them can prevent you from installing a new connecting rod on worn pins.

Listed for use on New Holland, IH “ Case,” and Steyr tractors

This connecting rod is listed for New Holland tractors in the T6, T6000, and T7 series; for IH Case s in the Maxxum, Puma, and Optum 270 lines; as well as for several Steyr models in the 4100 and 6100 series. A detailed list of models is provided in the product sheet.

Before ordering, compare the part number you’re looking for and the assembly dimensions with your current setup. If you’re also replacing related pivot or suspension parts, check the pin part numbers listed above at the same time.

Dimensions and Technical Specifications

• Ø 200 x 205 x 60 mm
• Ø 60
• 62 x 35 mm
• Ø 62 mm
• 1 mm
• 34 x 184 mm
• 34 x 68 mm
• 44 x 136 mm

Compatibility by brand and series

New Holland / Case IH / Steyr

• Adaptable front axle suspension link 87383938 – Compatibility
• and

New Holland

• T6.120
• T6.125
• T6.140
• T6. 145
• T6.150
• T6. 155
• T6.160
• T6.165
• T6.175
• T6.180
• T6010
• T6020
• T6030
• T6040
• T6050
• T6060
• T6070
• T6080
• T6090
• T7.165
• T7.165S
• T7.170
• T7.175
• T7.185
• T7.190
• T7.200
• T7.210
• T7.225

Case IH

• MAXXUM 100
• MAXXUM 110
• MAXXUM 115
• MAXXUM 120
• MAXXUM 125
• MAXXUM 130
• MAXXUM 135
• MAXXUM 140
• MAXXUM 145
• MAXXUM 150
• OPTUM 270
• PUMA 115
• PUMA 125
• PUMA 130
• PUMA 140
• PUMA 145
• PUMA 150
• PUMA 155
• PUMA 160
• PUMA 165
• PUMA 175

Steyr

• 4110
• 4115
• 4120
• 4125
• 4130
• 4135
• 4145
• 6115
• 6125
• 6130
• 6140
• 6145
• 6150
• 6160
• 6165
• 6175
• 6185
• Tier 4A/B
• Stage V
• CVT
• CVXDrive
• Multicontroller
• Activedrive
• PowerDrive
• Efficient Power
• S-Control
• etc

FAQ — Frequently Asked Questions

What is the purpose of this front axle suspension link?

It connects and guides the front axle suspension assembly on the applicable tractors. When it develops play or wears out, the assembly’s performance may deteriorate. This complete set includes the control arm and its main wear parts, which are already included in this assembly.

What exactly does this complete kit contain?

The kit includes wear bushing 82020450, two spherical bearings 82016695, two circlips 11061076, two O-rings 14483280 and 70935219, a grease nipple 13407211, and a valve 13411117. Pins 87340146, 87311698, and 87305641 are listed as additional items but are not included in the kit.

Does this connecting rod correspond to part number 87383938?

Yes, this connecting rod is intended to replace part number 87383938 in the specified applications. To avoid errors, also check the relevant dimensions of the assembly and associated components, including the wear ring, bearings, circlips, and the pins listed along with their dimensions.

Is this connecting rod suitable for the New Holland T6 and T7, the IH Maxxum and Puma Case, as well as the listed Steyr models?

Yes, the source specifies this connecting rod for the listed New Holland T6, T6000, and T7 models; for the listed IH Maxxum, Optum 270, and Puma models from Case; as well as for the listed Steyr models 4110 through 6185. Please refer to the detailed list of models and variants associated with this part number.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
