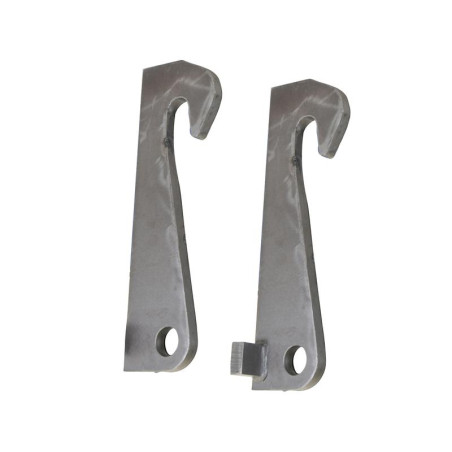

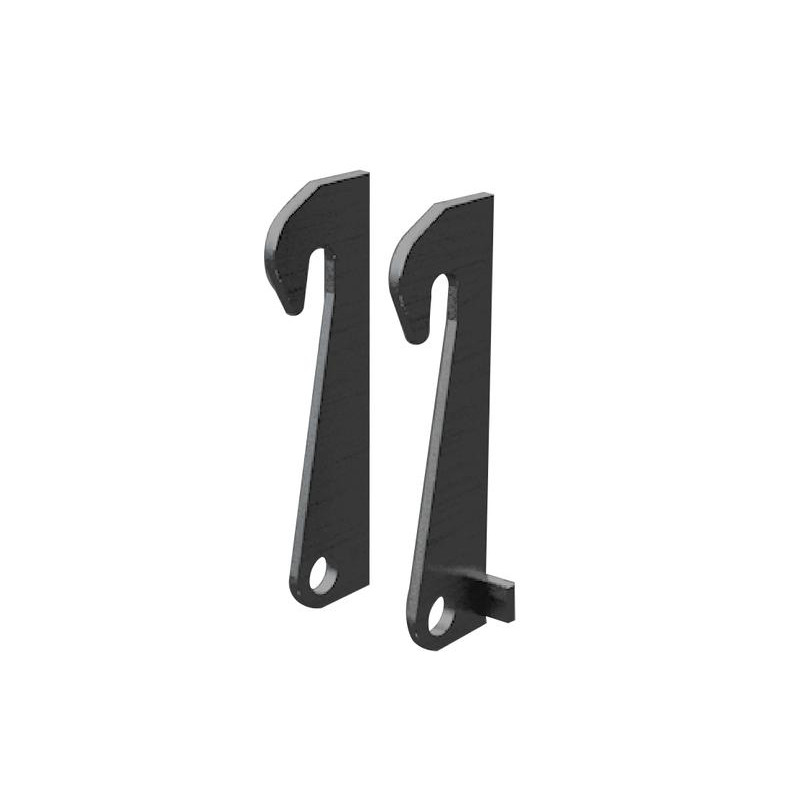

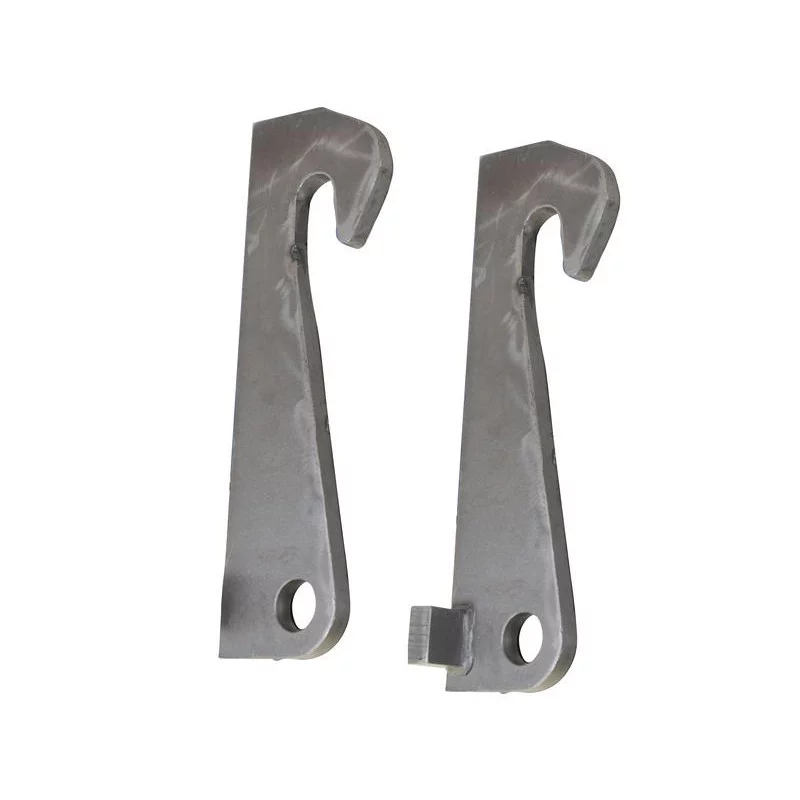

WELD-ON BRACKET FOR CLAAS SCORPION, 25 MM THICK

The weld-on bracket for the Claas Scorpion is used to manufacture, adapt, or repair an attachment designed for an agricultural telescopic handler in this series. This part is suitable for workshop work on material-handling tools and serves as a mounting base to be welded onto the equipment being prepared. Its most distinctive feature is its 25 mm thickness.

A mounting interface for your material-handling attachments

This weld-on bracket is designed to accommodate a mounting compatible with certain Claas Scorpion telescopic handlers. It is used when creating a new tool or modifying an existing accessory to ensure a proper connection to the machine.

It can be used on various types of agricultural handling equipment, such as when modifying a bucket, fork, dump body, or specialized implement. It is also useful when repairing an accessory whose original mounting bracket needs to be replaced.

Key features of this product

This version is a raw weld-on mounting bracket, designed to be integrated directly into your attachment according to your workshop requirements. The key specification to note is its 25 mm thickness, which allows this part to be adapted to your existing assembly or to meet the specifications of the tool being manufactured.

It is designed for use on agricultural telescopic handlers and attachments intended for material handling applications. The goal is to provide a weld-on mounting plate to properly adapt the tool to the corresponding hitch system.

Applications for the Claas Scorpion Series

This mounting plate is designed for models in the Scorpion series equipped with the corresponding mounting system. It should not be considered a universal mounting plate for all telescopic loaders or for all variants within the same series.

In practice, it meets several common needs:

• manufacturing a specific attachment,
• adapting an implement from a different setup,
• repairing equipment already in service,
• modifying a fork or other material-handling tool.

This type of part is therefore primarily intended for the user or workshop that needs to prepare a tool for a clearly identified machine.

Important Notes Before Ordering and Welding

Before selecting this part number, verify that the mounting system matches your Claas Scorpion and, if possible, compare the part to the existing mounting bracket on the attachment. The thickness, overall geometry, and position of the locking areas are the first points to check.

Before welding, precise positioning is essential to maintain alignment with the machine’s hitch. It is also helpful to check for squareness and flatness after assembly. For the welding process itself, follow a procedure suited to the tool’s specifications and the process recommended for your equipment.

If you are replacing a worn attachment or modifying an existing accessory, take the time to compare it with your old mounting plate to identify the correct part number.

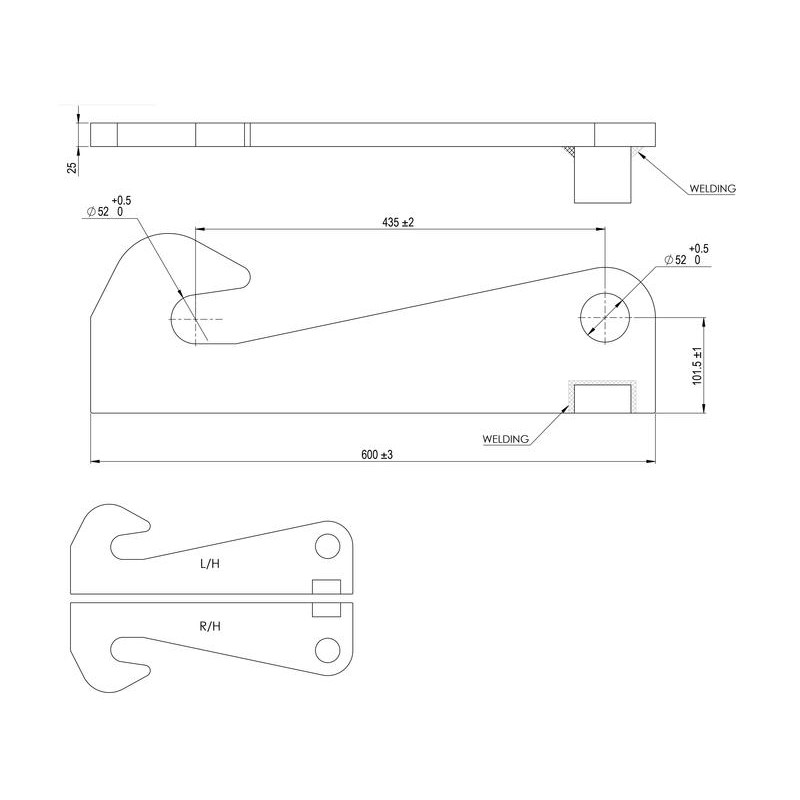

Dimensions and Technical Specifications

• Thickness: 25 mm
• Thickness: 25 mm

Compatibility by brand and series

Claas · Scorpion Series

• SCORPION 6030
• SCORPION 6040
• SCORPION 7030
• SCORPION 7040
• SCORPION 7045
• SCORPION 9040

FAQ — Frequently Asked Questions

What is a weld-on attachment for the Claas Scorpion used for?

A weld-on bracket is used to create the mounting interface between an attachment and the telescopic handler. For this part number, it allows you to manufacture, modify, or repair an attachment designed for a Claas Scorpion, such as a bucket, fork, dump body, or material-handling equipment.

Which Claas Scorpion models is this part specifically designed for?

This mounting bracket is recommended for the Claas SCORPION 6030, SCORPION 6040, SCORPION 7030, SCORPION 7040, SCORPION 7045, and SCORPION 9040. Compatibility must be confirmed on the machine or the attachment, as it depends on the mounting system actually installed.

How can you check if this weld-on attachment is compatible with your accessory?

The first thing to check is the mounting interface between your telehandler and your attachment. Compare the shape of the existing attachment, check the alignment with the locking mechanism, and note the 25 mm thickness, which is one of the key factors in selecting the correct mounting plate before welding.

In what situations is this type of weld-on bracket used?

This type of attachment is primarily used in the workshop when manufacturing an accessory, adapting a tool from a different setup, or repairing existing equipment. It allows you to prepare a tool for agricultural handling tasks, such as working with pallets, silage, or manure.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
