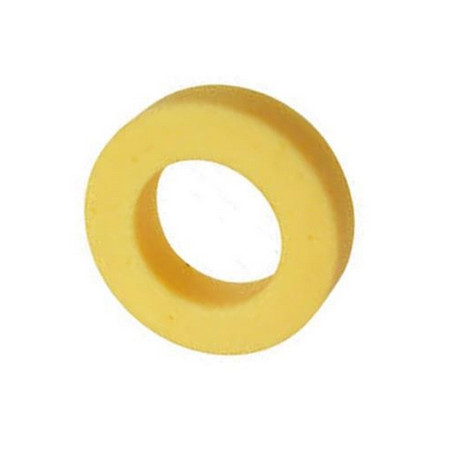

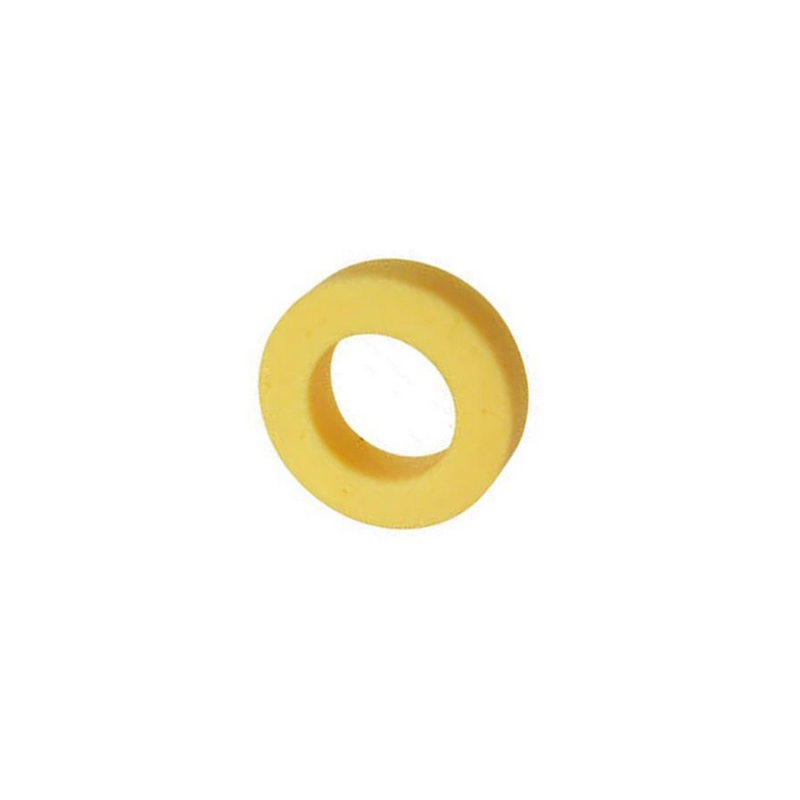

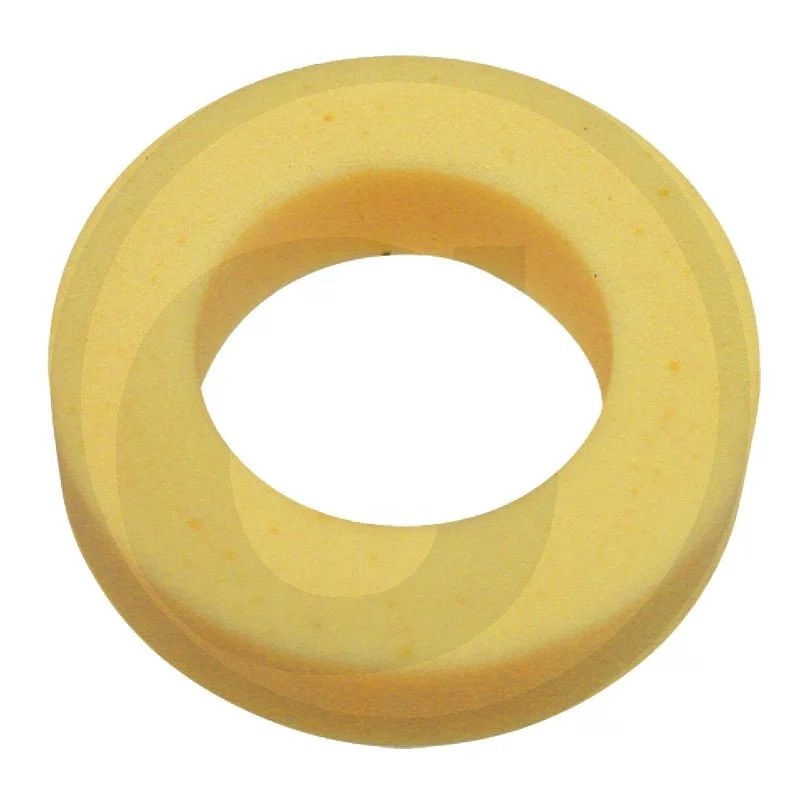

WATERTIGHT RING

Seal Ring for Load Control Shaft for IH Case r Tractor, Part Number 3217570R1: Protection and Optimized Performance

The sealing ring for the power take-off (PTO) shaft—also known as the PTO torsion shaft—is an essential component for ensuring the sealing and protection of the hydraulic lift systems on your Case, and IH tractors. Part Number 3217570R1, this sealing ring ensures the proper operation of the power take-off (PTO) shaft by preventing oil leaks and protecting internal components from external contaminants. Designed to fit perfectly on several IH tractor models — Case —this seal provides reliable and long-lasting protection, even under demanding operating conditions.

The 3217570R1 seal is manufactured to provide optimal durability and effective protection for the power take-off (PTO) shaft. Here are its main features:

• PartNumber:3217570R1
• Dimensions:21 x 36 x 9 mm
• Type:Sealing Ring
• Material:High-quality rubber with a metal insert for improved resistance to pressure and wear

These features ensure perfect compatibility with lift systems, enabling smooth, leak-free operation.

Seal ring part number 3217570R1 is compatible with a range of Case , and IH tractors, particularly those in the 600 and 800 series, which are known for their durability and reliability in agricultural conditions. Here are the compatible models:

• Case IH

  • 644
  • 743
  • 743 XL
  • 744
  • 745 S
  • 745 XL
  •
    • 844
    • 844 S
    • 844 XL
    • 845
    • 845 XL
    • 856 XL

These tractors are equipped with seal ring 3217570R1 to ensure proper operation of their lift system, preserve the integrity of the load-sensing shaft, and prevent hydraulic fluid leaks.

1. Optimal Sealing:The seal effectively prevents oil leaks, ensuring consistent performance of the hydraulic lift system and reducing fluid loss.

2. Protection Against Contaminants:It protects the internal components of the load-sensing shaft from dust, dirt, and other contaminants that could compromise the system’s proper operation.

3. Durability and Strength:Made from high-quality materials, the seal is designed to withstand the most extreme pressures and working conditions, thereby extending the service life of your lift system.

4. Easy Installation:Designed to fit perfectly on compatible models, the bushing installs quickly, minimizing downtime and simplifying maintenance.

To ensure optimal performance and extend the service life of the seal ring, it is recommended that you:

• Regularly inspect the sealfor wear or damage and replace it immediately if there is a leak or visible deterioration.
• Thoroughly cleanthe area around the torque control shaft before installing a new ring to prevent the introduction of contaminants.
• Lightly lubricatethe contact surface before installation to facilitate installation and prevent premature wear.

AtCamagris, we offer a wide range of parts and accessories for the lift system and other components of your IH Case r tractors. In addition to the 3217570R1 seal ring, we offer:

• Load-sensing and torsion control shafts
• Ball joints and lift arm mounts
• Hydraulic cylinders and control accessories
• Hydraulic system maintenance kits

These products are designed to keep your equipment in top working condition, ensuring maximum efficiency in the field.

To order the 3217570R1 seal ring or to explore our complete range of parts for Case IH tractors, visit our website https://www.cam-agri-parts.fr/en/. Our team is here to provide personalized advice and help you find the best solutions for your agricultural equipment.

Protect and optimize the performance of your lift systems with the 3217570R1 seal ring, an essential component for the reliability of your Case, and IH tractors.
