AIR CONDITIONING EVAPORATOR

COOLING EVAPORATOR FOR JOHN DEERE TRACTORS - Ref. RE152404

Replaces RE180243 / RE241384 / RE66330 - Dimensions 736.5 x 851 mm - Oring Ø10 mm

TheRE152404 air-conditioning evaporator is an essential part of the air-conditioning circuit for many models of John Deere 6000, 7000 and 7010 series tractors. Installed in the cab ventilation system, it plays a fundamental role in ensuring fast, efficient and constant cooling, essential for farmer comfort in the summer months.

Thanks to its robust design and dimensions perfectly adapted to John Deere cabs, this evaporator guarantees optimum refrigerant circulation, while limiting performance losses due to wear or corrosion.

Technical specifications of the RE152404 evaporator

• Product code : RE152404

• Equivalent references : RE180243, RE241384, RE66330

• Type : Cabin air-conditioning evaporator

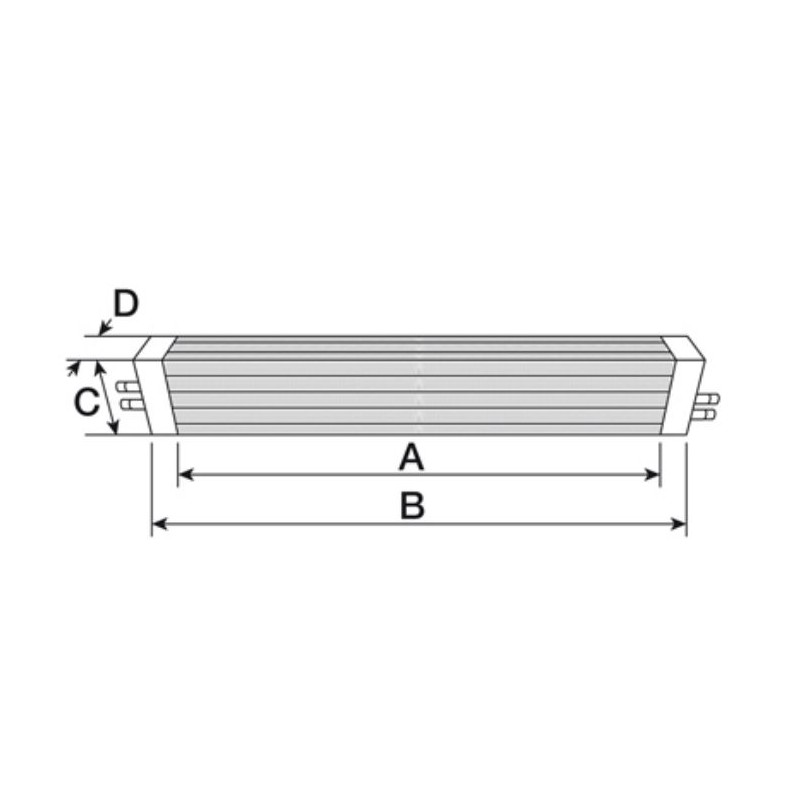

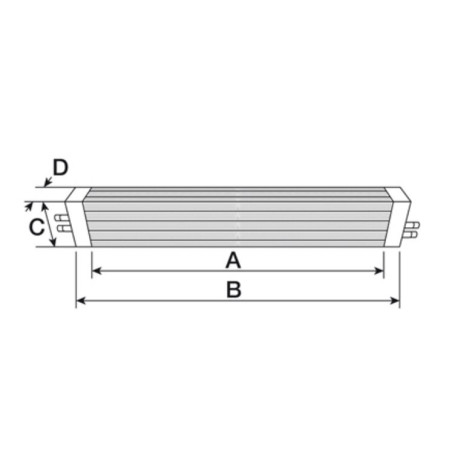

• Width (A) : 736.50 mm

• Height (B): 851 mm

• Thickness (C): 155 mm

• Mounting center distance (D): 136.50 mm

• Inlet/outlet connections: Oring thread Ø10 mm

• Mounting: Can be fitted in place of original part without modification

• Gas compatibility: R134a (standard for agricultural air conditioning)

✅ Compatibility John Deere tractors

The RE152404 evaporator is adaptable to many John Deere tractors, mainly those produced in the 1990s and 2000s, widely used for field crops, ETAs and mixed farms.

Compatible models:

• 6000 Series:
  6110, 6120, 6210, 6310, 6410, 6510, 6610, 6810, 6910

• 7000 and 7010 series:
  7410, 7510, 7600, 7610, 7700, 7710, 7800, 7810

This compatibility applies to versions with air-conditioned cab. Installation is direct, replacing the original evaporator.

What is the purpose of an air-conditioning evaporator?

The evaporator is the component responsible for cooling the air circulating in the cab. It receives the low-pressure refrigerant, which evaporates, absorbing heat from the air. The cooled air is then blown into the cabin.

A faulty evaporator can lead to :

• Inefficient or non-existentair conditioning

• Unpleasant odours in the event of stagnant humidity

• Excessive energy consumption

• Overpressure problems in the circuit

Replacement at regular intervals, or at the first signs of wear, is recommended, especially in dusty or heavily-used environments.
