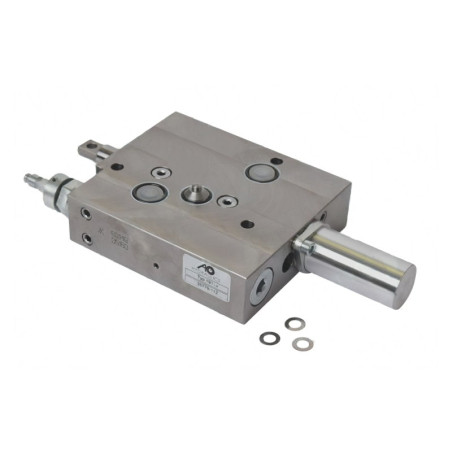

ADDITIONAL HYDRAULIC DISTRIBUTOR FOR DEUTZ TRACTORS

Additional hydraulic distributor for Deutz tractors and Fendt - Ref. 23729520010, 44182024, G816960020010, G816960021012, 04418202 237294800, 2.3729.520.0/10, R917006941

The additional hydraulic distributor for Deutz tractors and Fendt is a manually-operated 5/4-way valve designed to control hydraulic cylinders and motors. It provides optimum distribution of hydraulic flow, enabling more efficient and versatile use of attached equipment.

This sturdy, precise directional control valve features a Load Sensing valve, ensuring optimum control of flow and pressure to avoid any loss of efficiency. It can control double-acting hydraulic cylinders and handle heavy loads without risk of leakage, thanks to its O-ring sealed outlets A and B.

Technical specifications of the additional hydraulic directional control valve

Max. operating pressure 250 bar
Nominal flow rate: 120 l/min
Fluid type: hydraulic oil
Tightening torque: 30 Nm
Thread / connections: M22 x 1.5
Dimensions: 250 x 150 x 40 mm

This directional control valve features a hydraulic/automatic limit switch, as well as a detent in the lifting position, for precise, safe control of hydraulic flow. The floating detent position can be used as a lowering position, allowing the lowering speed to be adapted as required.

Why choose this additional hydraulic control valve?

✅ Improves management of hydraulic cylinders and motors on your tractor
✅ Load-sensing valve for optimized flow and pressure
✅ Avoid leaks thanks to outlets A and B with O-rings
✅ Flexible installation, can be mounted on the left or right
✅ Available with manual lever or remote control

This hydraulic directional control valve is an ideal solution for improving the versatility and efficiency of your tractor, by facilitating the management of attached equipment requiring precise control of hydraulic flow.

Hydraulic spool valve compatibility with Deutz tractors and Fendt

Compatible Deutz tractors

Agroplus series
Agroplus 75, 85, 95, 95 New

Agrotron series
Agrotron 106, 108, 115, 120, 135, 150, 160, 175, 195, 200
Agrotron New 110, 118, 128, 130

Agrotron 6 Series
Agrotron 6.00, 6.05, 6.15, 6.20, 6.30, 6.45

Agrotron K series
Agrotron K100, K110, K120, K90
Agrotron K410, K420, K430, K610

Agrotron M series
Agrotron M410, M420, M600, M610, M615, M620, M625, M640, M650

Agrotron MKIII series
Agrotron 105MKIII, 165MKIII, 80MKIII, 85MKIII, 90MKIII

Agrotron TTV series
Agrotron TTV1130, TTV1145, TTV1160

Compatible tractors Fendt

800 Vario series
815, 817

Favorit 500 series
509, 510, 511, 512, 514, 515

Favorit 800 Turboshift series
816, 818, 822, 824

Favorit 900 series Vario COM I
916, 920, 924, 926

Xylon series
520, 522, 524

A reliable product available from Camagris

At Camagris, we offer high-quality hydraulic solutions designed to withstand agricultural and industrial stresses.

✔ Resistant materials, designed to withstand high pressures
✔ Easy installation, adaptable left- or right-hand mounting
✔ Fast delivery in Europe, to limit your equipment's downtime

Order your additional hydraulic distributor for Deutz tractors and Fendt today!

Optimize the efficiency of your hydraulic system with the additional distributor ref. 23729520010, 44182024, G816960020010, G816960021012, 04418202 237294800, 2.3729.520.0/10, R917006941. Available now from Camagris, your specialist in agricultural spare parts!
