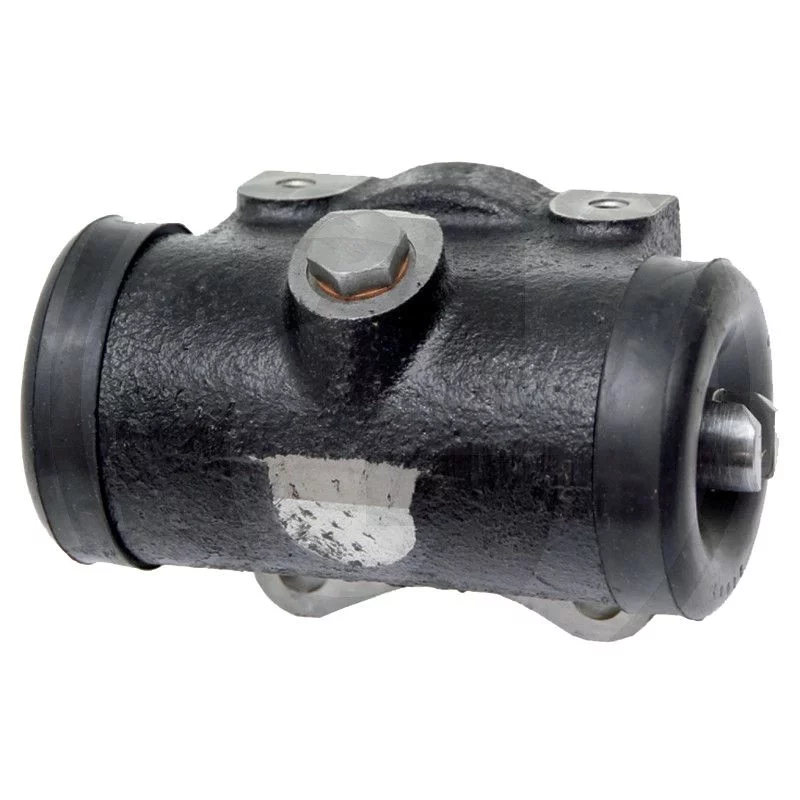

BRAKE RECEIVER CYLINDER FOR CASE IH 3401367R1

Brake Receiver Cylinder for IH Tractors: Case and Case

The brake master cylinder, part number 3401367R1, is a brake control component designed for Case and IHCase s. It is compatible with models 1255, 1255XL, 1455, and 1455XL. If you are looking for this part to repair your tractor’s brake system, identifying it by part number and model is essential.

What is the role of this part in the braking system?

A brake master cylinder transmits hydraulic pressure to the braking mechanism. On an agricultural tractor, it is one of the components that contributes to the braking response when the brake pedal is pressed. When it is worn, contaminated, or leaking, brake performance may become inconsistent, making replacement necessary.

This part number is therefore required when overhauling the brake system on high-horsepower tractors in the relevant model range. Correctly identifying the part is especially important to avoid installing a similar part number that would not match the original assembly on the machine.

Known Applications for Part Number 3401367R1

Part number 3401367R1 is associated with Case and IHCase . Known applications include the 55 Series with models such as the 1255, 1255XL, 1455, and 1455XL. The inclusion of the XL versions is important, as it allows you to focus your search on specific configurations rather than an entire series assumed to be compatible.

If you’re working on one of these tractors, this brake master cylinder may be the replacement you need. However, if your machine has a similar but different model designation, it’s best to check the part number currently installed before confirming your purchase.

How do you choose the right brake master cylinder?

To select this part, start by noting the part number already on your tractor or, if unavailable, the part number listed in your maintenance manual. Part number 3401367R1 serves as the primary identifier here. This is the most reliable way to avoid confusion between brake cylinders with similar designations.

The exact tractor model must also be confirmed, clearly distinguishing between standard and XL versions. Within a family of parts such as brake cylinders, even a slight difference in application is enough to make the installation incompatible, even if the product names appear similar.

A Useful Reference Before Replacement

Before placing any order, compare the part number, the machine application, and the location of the removed part on your tractor. This ensures a safe replacement without assuming compatibility with other unlisted versions. If you do indeed need a brake receiver cylinder for an IH Case , corresponding to part number 3401367R1, you have a clear reference here to identify the correct part.

Compatibility by Make and Series

Case · Tractor

• 1255
• 1255XL
• 1455
• 1455XL

Case IH · 55 Series

• 1255
• 1255XL
• 1455
• 1455XL

FAQ — Frequently Asked Questions

What is the function of the brake master cylinder on a Case, 1255, or 1455 tractor?

The brake master cylinder transmits hydraulic pressure to the braking mechanism when the brake pedal is pressed. On the Case, 1255, 1255XL, 1455, and 1455XL, this part plays a direct role in the brake system and must be replaced if it begins to malfunction or develops a leak.

How can I verify that part number 3401367R1 matches my machine’s configuration?

The most reliable way to check is to compare part number 3401367R1 with the part number found on the removed part or in your machine’s documentation. You must also confirm that it is intended for the exact model—particularly distinguishing between standard and XL versions—to avoid errors when ordering the brake receiver cylinder.

Is this brake receiver cylinder designed for XL versions?

Yes, this part number is listed for applications including the 1255XL and 1455 Case. It is also compatible with the 1255 and 1455 models. To ensure proper installation, always verify the exact tractor model and the part number on the brake assembly already installed.

What signs indicate that a brake master cylinder needs to be replaced?

Replacement may be necessary if the brakes respond poorly, if the brake pedal feels unusual, or if a leak develops in the affected brake line. For this type of part, it is essential to verify the part number and tractor application before removal to ensure that the replacement brake master cylinder is compatible with the existing system.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that they are original parts.
