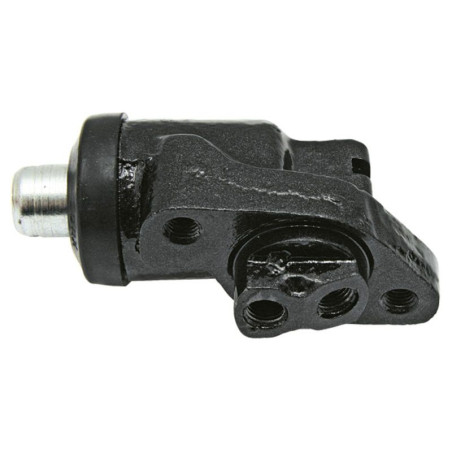

RIGHT FRONT BRAKE RECEIVER CYLINDER FOR FENDT F178101070070

Right Front Brake Receiver Cylinder for Various Applications Fendt

The F178101070070 right front brake master cylinder is a hydraulic brake component designed for various applications Fendt, and is also listed as compatible withCase, and DGD4. It is mounted on the front right side and converts hydraulic pressure into mechanical action at the brake. To identify it correctly, note its mounting position and its diameter of 28.5 mm.

Role of this component in the braking system

In a hydraulic braking system, the slave cylinder receives the force transmitted by the master cylinder and transfers it to the corresponding brake mechanism. For this part number, the “front right” designation is critical: it allows you to target the specific wheel and avoid confusion with a part intended for the other side.

If this component leaks, seizes, or fails to retract the piston properly, braking may become uneven. This often results in an abnormal brake pedal feel, a loss of braking efficiency, or an imbalance between the wheels.

Useful guidelines for selecting part number F178101070070

This part number is distinguished by a 28.5 mm diameter, which is a key specification for selection. It is also associated with repair kit F178101070080, which is useful if you’re looking for the corresponding repair assembly.

Before ordering, check the part number installed on your tractor or implement, the mounting side, and the exact model designation of the machine. With this type of component, a difference in mounting side, version, or model series is enough to require a different part number.

Documented applications on tractors and implement carriers

This receiver cylinder is recommended for several machines Fendt in the Farmer 200 and Farmer 300 series, as well as on GT implement carriers. Examples of model designations include Farmer 240S (Type 294), Farmer 260S (Type 296), Farmer 307 C, Farmer 310 LSA, F345GT, and F370GTA. An application on the DGD4Case is also mentioned.

Suffixes, model designations, and variants such as LSA, C, or TURBOMATIK must be used exactly as stated when identifying the parts. They correspond to specific configurations and should not be assumed to apply to an entire series without verification.

When should replacement be considered?

Replacement of this cylinder may be necessary in the event of a fluid leak, excessive pedal travel, uneven braking, or seizure. If a repair is planned, the part number F178101070080 serves as a useful additional reference.

To order the correct part, simply compare the front-right location, the part number you’re looking for, and the exact model designation of your vehicle.

Dimensions and Technical Specifications

• DIAMETER 28.5 MM

Compatibility by Brand and Series

Fendt · Tool Holders

• F345GT
• F345GTM
• F360GTF
• F360GTH
• F370GT
• F370GTA

Case · Tractor

• DGD4

Fendt · Tractor

• Farmer 240S (Type 294)
• Farmer 250S (Type 295)
• Farmer 250SA
• Farmer 260P (Type 246)
• Farmer 260PA
• Farmer 260S (Type 296)
• Farmer 260SA
• Farmer 270P (Type 247)
• Farmer 270PA
• Farmer 275SA
• Farmer 280P (Type 248)
• Farmer 280PA
• Farmer 303 LSA
• Farmer 304 LSA
• Farmer 305 LSA
• Farmer 306 LSA
• Farmer 307 C
• Farmer 307 TURBOMATIK
• Farmer 308 C
• Farmer 308 LSA
• Farmer 308 TURBOMATIK
• Farmer 309 C
• Farmer 309 LSA
• Farmer 309 TURBOMATIK
• Farmer 310 LSA
• Farmer 310 TURBOMATIK

Fendt

• Compatible brand
• 240S
• 250S
• 250SA
• 260P
• 260PA
• 260S
• 260SA
• 270P
• 270PA
• 275SA
• 280P
• 280PA
• 304LS
• 304LSA
• 305LS
• 305LSA
• 306LS
• 306LSA
• 307
• 307C
• 307LS
• 307LSA
• 308
• 308C
• 308LS
• 308LSA
• 309
• 309C
• 309LS
• 309LSA
• 310
• 310LSA
• F350GT

Fendt · Farmer Series

• 200
• 300

FAQ — Frequently Asked Questions

How do I identify the correct mounting side for this brake master cylinder?

The first thing to check is the indicated position: front right. Compare the removed part, the part number of the part currently installed, and the assignment on your vehicle, as a version intended for a different side or a different brake assembly will not fit.

What does the 28.5 mm diameter on this part number refer to?

The 28.5 mm diameter is the key dimension used to select this brake master cylinder. This value must match your existing installation and the part number you’re looking for, as a difference in diameter may affect the part’s compatibility.

Which models are specifically associated with this part number?

This part number is specified for several Farmer Fendt —the Farmer 200 and Farmer 300—as well as for GT toolholder Fendt such as the F345GT or F370GTA, and also for Case DGD4. Always verify the exact model designation, including suffixes, types, and TURBOMATIK or C versions.

Does the F178101070080 kit fit this cylinder?

Yes, the associated repair kit listed for this cylinder is F178101070080. This is a good reference if you’re considering a repair, provided you confirm the front-right assignment and the overall condition of the cylinder before deciding between repair and replacement.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
