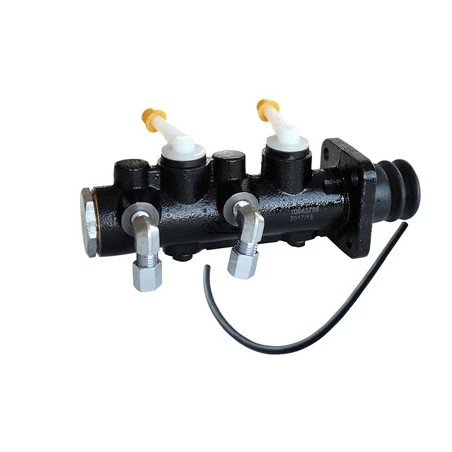

BRAKE MASTER CYLINDER FOR MERLO M014652K

The brake master cylinder for the Merlo M014652K is a hydraulic control component designed for the braking system. This version is designed for installation without power brakes and for use with DOT4 brake fluid. It is compatible with several Merlo telescopic handlers from the 25-7, 27-7, 30-7, P28, and P32 series, as detailed in the list below.

Role of the master cylinder in the braking system

The master cylinder, also known as the brake master cylinder, transmits the force applied to the pedal to the hydraulic brake system. It is an essential component for brake control. When replacing the master cylinder, selecting the correct part number ensures a proper fit between the vehicle’s installation configuration and the ordered part.

For this part number, two identification codes are useful: 014652K and M014652K. These numbers allow you to compare the part you’re looking for with the one removed from the vehicle.

Useful characteristics for identifying this part number

This master cylinder is designed for vehicles without power brakes. This is critical, as installation on a vehicle with power brakes may require a different configuration. The specified fluid type is DOT 4; this must be used to ensure compatibility with the intended installation for this part.

If you are replacing a worn master cylinder, check the following first:

• the part number on the old component, if legible;
• whether your machine is equipped with power brakes;
• the exact Merlo model match.

Listed Merlo Applications

This part is intended for the following Merlo models:

• Merlo 25-7
• Merlo 27-7
• Merlo 30-7
• Merlo P28 - 7EVS
• Merlo P28-7EVT
• Merlo P28 - 9EVS
• Merlo P32 - 7EVT

The complete model designation must be carefully checked, particularly for variants in the P28 series where the suffix is part of the identification.

Selection Guidelines Before Ordering

To select this brake master cylinder, first refer to part number M014652K or 014652K, then to the machine application. The most important factor to check here is the absence of power brakes, in addition to the use of DOT4 fluid.

If your Merlo matches exactly one of the listed models and your installation matches these specifications, this part number provides a clear basis for replacement. If in doubt, compare the part number of your removed component with the braking system specifications before confirming your order.

FAQ — Frequently Asked Questions

What is the function of this brake master cylinder on a Merlo?

This brake master cylinder converts pedal pressure into hydraulic pressure within the brake system. For this part number, the specified application is for a system without power brakes and using DOT4 brake fluid. You must therefore verify these two points before ordering.

Which Merlo models are compatible with part number M014652K?

This part number is suitable for the Merlo 25-7, 27-7, 30-7, P28-7EVS, P28-7EVT, P28-9EVS, and P32-7EVT. The model designation must be entered exactly, as a similar variant may use a different master cylinder depending on the braking system.

Do part numbers 014652K and M014652K correspond to this part?

Yes, the comparison part numbers 014652K and M014652K correspond to this part. They are useful for identification during replacement. If your old master cylinder has one of these part numbers and your vehicle is on the list provided, this is a good reference for selection.

What brake fluid should be used with this master cylinder?

The recommended fluid for this part number is DOT 4. This specification must be followed to ensure compatibility with the intended installation. Before putting the vehicle back into service, also check the overall condition of the brake system and refer to the vehicle’s maintenance recommendations for bleeding and refilling.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
