BRAKE MASTER CYLINDER
BRAKE MASTER CYLINDER 3 OUTPUTS
BRAKE MASTER CYLINDER 3 OUTPUTS

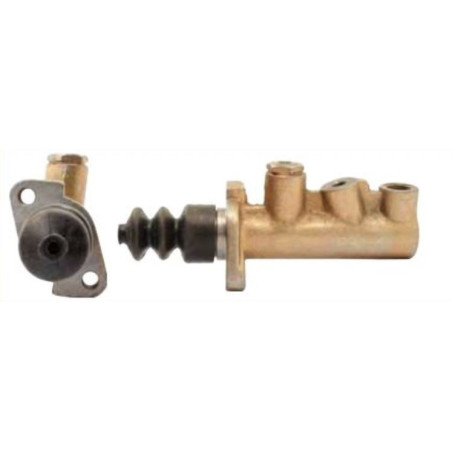

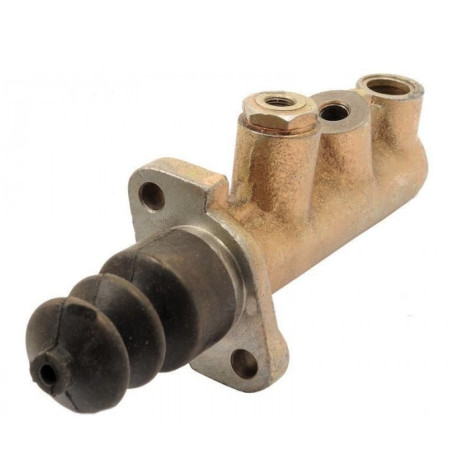

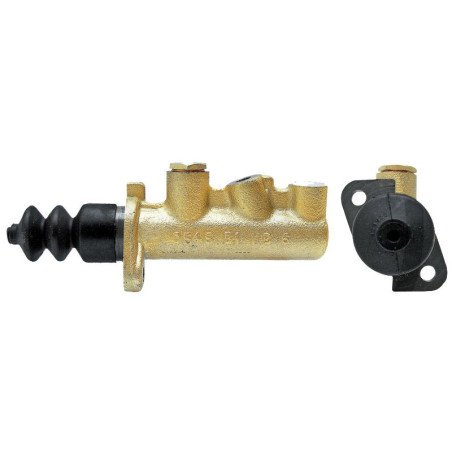

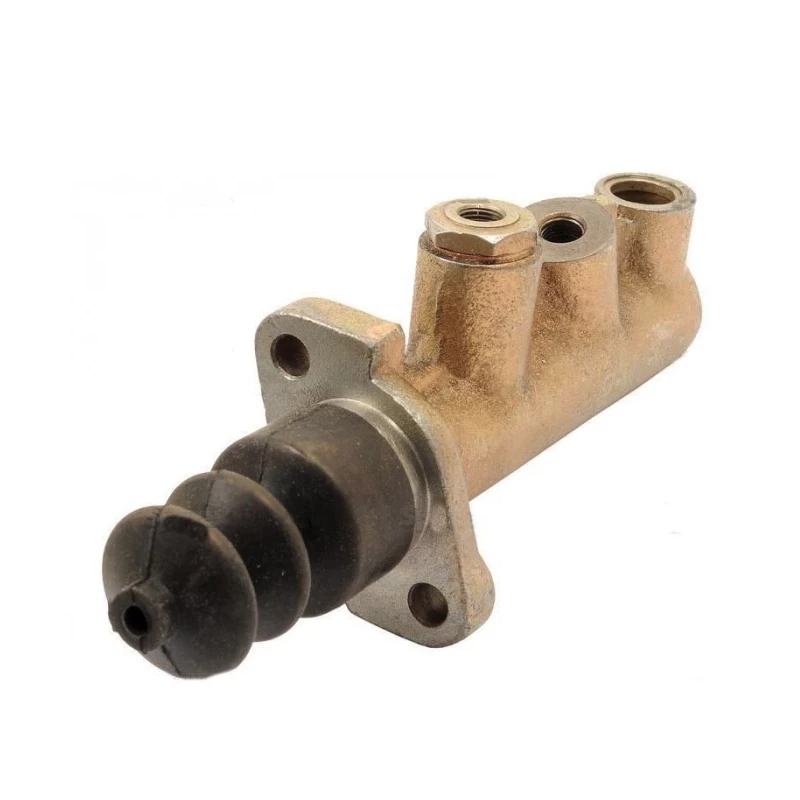

3-OUTLET BRAKE MASTER CYLINDER FOR RENAULT AND JOHN DEERE

Ref.: 7700012835

€43.28Tax excl.€51.94 Tax incl.

In stock, Shipping within 24 hours


This 3-outlet brake master cylinder, with a 19 mm piston, is suitable for the listed Renault tractors and certain John Deere 3200 through 3410 models. It is comparable to part numbers 5500028244, 7700012835, 7700018167, and 7700021476 in systems using DOT 4 fluid.


This product is compatible? Check compatibility
From (qty.) Unit price You Save
2 €38.38 Up to €9.81

Product's description

3-Outlet Brake Master Cylinder for Renault and John Deere Tractors

This 3-outlet brake master cylinder is designed for the hydraulic braking system of many Claas-Renault tractors, as well as certain John Deere models. With a 19 mm piston, it is compatible with systems using DOT 4 brake fluid. This part can be used to replace a brake master cylinder with the same configuration and matching part numbers.

The role of this part in the braking system

The master cylinder is the component that converts the mechanical force applied to the pedal into hydraulic pressure sent to the braking system. On this part, the three outlets correspond to the installation configuration on compatible tractors. When servicing the braking system, this detail is critical to avoid incorrect connections.

Technical specifications to check before ordering

To select this version, three elements must be verified on the part currently installed:

  • 3 outlets for circuit connection
  • 19 mm piston
  • For use with DOT 4 brake fluid

The equivalent part numbers for this master cylinder are 5500028244, 7700012835, 7700018167, 7700021476, RT7700021476, RT7700012835, RT7700018167, and PMD279. A repair kit is also listed under part number 6005002576.

Documented applications for this part number

Documented compatibility covers a long list of Claas-Renault tractors, with numerous applications in the 100, 60, 70, 80, 90, Ceres, Cergos, and Ergos series. A complete list of models is provided with the data sheet.

For John Deere, the models listed are 3200, 3300, 3400, 3210, 3310, and 3410. Before replacing a part, always compare the part number on your master cylinder, the number of outlets, and the piston diameter. If your tractor belongs to a similar series but is not listed, it’s best to verify the exact fit before ordering.

Dimensions and Technical Specifications

  • 19 mm

Compatibility by Make and Series

Claas - Renault · Tractor

  • 103-12
  • 103-14
  • 103-52
  • 103-54
  • 106-14SP
  • 106-54
  • 110-14
  • 110-54
  • 113-12
  • 113-14
  • 120-14
  • 120-54
  • 133-14
  • 133-54
  • 145-14
  • 155-54
  • 61-12RA
  • 61-12RS
  • 61-14RA
  • 61-14RS
  • 68-12RA
  • 68-12RS
  • 68-14RA
  • 68-14RS
  • 75-12LS
  • 75-12RA
  • 75-12RS
  • 75-12TS
  • 75-14LS
  • 75-14RA
  • 75-14RS
  • 75-14TS
  • 75-32M
  • 75-32TX
  • 75-34M
  • 75-34TX
  • 77-12TS
  • 77-14TS
  • 80-12F
  • 80-12SP
  • 80-12TX
  • 80-12V
  • 80-14F
  • 80-14SP
  • 80-14TX
  • 80-14V
  • 85-32M
  • 85-32TX
  • 85-34M
  • 85-34TX
  • 90-32M
  • 90-32TX
  • 90-34M
  • 90-34TX
  • 95-12
  • 95-14
  • Ceres 310
  • Ceres 310 4x4
  • Ceres 320
  • Ceres 330
  • Ceres 340
  • Ceres 65
  • Ceres 65 4x4
  • Ceres 75
  • Ceres 75X
  • Ceres 85
  • Ceres 85X
  • Ceres 95
  • Ceres 95X
  • Cergos 330
  • Cergos 340
  • Cergos 350
  • Ergos 105
  • Ergos 85
  • Ergos 95
  • Temis 550 X
  • Temis 610 X
  • Temis 630 X
  • Temis 650 X

100 Series

  • 103-12
  • 103-14
  • 103-52
  • 103-54
  • 106-14SP
  • 106-54
  • 110-14
  • 110-54
  • 113-12
  • 113-14
  • 120-14
  • 120-54
  • 133-14
  • 133-54
  • 145 -14
  • 155 -54

60 Series

  • 61-12RA
  • 61-12RS
  • 61-14RA
  • 61-14RS
  • 68-12RA
  • 68-12RS
  • 68-14RA
  • 68-14RS

70 Series

  • 75-12LS
  • 75-12RA
  • 75-12RS
  • 75-12TS
  • 75-14LS
  • 75-14RA
  • 75-14RS
  • 75-14TS
  • 75-32M
  • 75-32TX
  • 75-34M
  • 75-34TX

80 Series

  • 80-12F
  • 80-12SP
  • 80-12TX
  • 80-12V
  • 80-14F
  • 80-14SP
  • 80-14TX
  • 80-14V
  • 85-32M
  • 85-32TX
  • 85-34M
  • 85-34TX

90 Series

  • 90-32M
  • 90-32TX
  • 90-34M
  • 90-34TX
  • 95-12
  • 95-14

Ceres Series

  • Ceres 310
  • Ceres 310 4x4
  • Ceres 320
  • Ceres 330
  • Ceres 340
  • Ceres 65
  • Ceres 65 4x4
  • Ceres 75
  • Ceres 75X
  • Ceres 85
  • Ceres 85X
  • Ceres 95
  • Ceres 95X

Cergos Series

  • Cergos 330
  • Cergos 340
  • Cergos 350

Ergos Series

  • Ergos 105
  • Ergos 85
  • Ergos 95

Temis Series

  • Temis 550
  • Temis 610
  • Temis 630
  • Temis 650

John Deere · 3000 Series

  • 3200
  • 3300
  • 3400

John Deere · 3010 Series

  • 3210
  • 3310
  • 3410
  • Why Use DOT 4 Brake Fluid?

John Deere · 3010 Series · Consistent Performance

  • DOT 4 delivers consistent performance
  • even under extreme conditions
  • ensuring reliable and responsive braking in all circumstances

FAQ — Frequently Asked Questions

What is the purpose of a 3-outlet brake master cylinder on a tractor?

The master cylinder converts the force applied to the brake pedal into hydraulic pressure to supply the braking system. The 3-outlet version is designed for specific installation on compatible tractors and is intended for use with DOT 4 brake fluid.

How do you identify this master cylinder before replacing it?

The proper way to verify it is to compare the part number on the removed unit with its main specifications. This version can be identified by its 3 outlets, its 19 mm piston, and its reference numbers: 5500028244, 7700012835, 7700018167, 7700021476, RT7700021476, RT7700012835, RT7700018167, and PMD279.

Which John Deere models are listed with this part number?

The John Deere models listed for this master cylinder are the 3200, 3300, 3400, 3210, 3310, and 3410. The part is also listed for numerous Claas-Renault tractors; a detailed list of models appears in the compatibility section of the product sheet.

Is there a repair kit available for this master cylinder?

Yes, a repair kit is listed under part number 6005002576. Before deciding between the kit and a complete replacement, make sure your master cylinder matches this 3-outlet configuration with a 19 mm piston and the same tractor mounting.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.

For more information, see data sheet in "product feature" section.

Product's features

FR
Brand RENAULT AGRI, CLAAS
Sub-family Tractor brake master and slave cylinders, Braking
Family Spare parts for tractors
Origin Adaptable part - Non Authentic
Net Weight (kg) 1.19
Customs Code 87089997
Tractor Claas - Renault
Model
103-12
Model
103-14
Model
103-52
Model
103-54
Model
106-14SP
Model
106-54
Model
110-14
Model
110-54
Model
113-12
Model
113-14
Model
120-14
Model
120-54
Model
133-14
Model
133-54
Model
145-14
Model
155-54
Model
61-12RA
Model
61-12RS
Model
61-14RA
Model
61-14RS
Model
68-12RA
Model
68-12RS
Model
68-14RA
Model
68-14RS
Model
75-12LS
Model
75-12RA
Model
75-12RS
Model
75-12TS
Model
75-14LS
Model
75-14RA
Model
75-14RS
Model
75-14TS
Model
75-32M
Model
75-32TX
Model
75-34M
Model
75-34TX
Model
77-12TS
Model
77-14TS
Model
80-12F
Model
80-12SP
Model
80-12TX
Model
80-12V
Model
80-14F
Model
80-14SP
Model
80-14TX
Model
80-14V
Model
85-32M
Model
85-32TX
Model
85-34M
Model
85-34TX
Model
90-32M
Model
90-32TX
Model
90-34M
Model
90-34TX
Model
95-12
Model
95-14
Model
Ceres 310
Model
Ceres 310 4x4
Model
Ceres 320
Model
Ceres 330
