MAITRE CYLINDRE

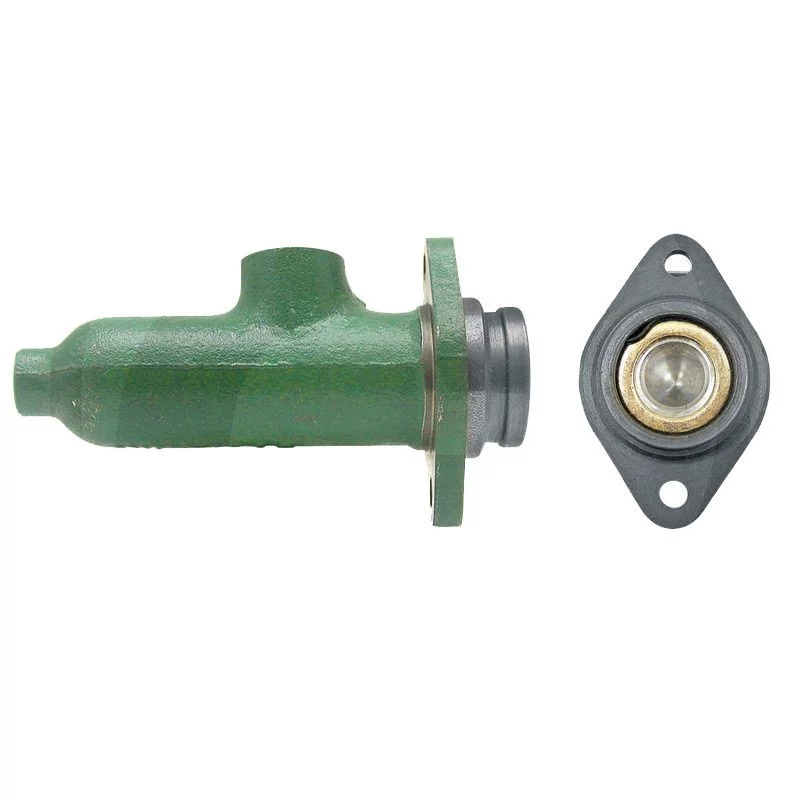

Tractor Brake Master Cylinder Massey Ferguson Référence 1613986M4 : Performance and Safety

The brake master cylinder is a crucial component in the tractor braking system. It ensures the transmission of the force applied to the brake pedal to the brakes themselves, guaranteeing safe and effective vehicle control. Brake master cylinder part no. 1613986M4 is specially designed for use on Massey Ferguson tractors, as well as certain Landini tractor models, offering optimum reliability and compatibility.

What is the purpose of a brake master cylinder?

The brake master cylinder plays a central role in the hydraulic braking system. It converts the mechanical pressure exerted on the brake pedal into hydraulic pressure, sending brake fluid through the lines to the wheel brakes. This process enables the tractor to be slowed or stopped safely. A defective master cylinder can cause a loss of pressure, making braking ineffective and dangerous.

Technical specifications of Brake Master Cylinder 1613986M4

The technical features of this brake master cylinder make it suitable for a wide range of tractors Massey Ferguson and Landini:

• Use of LHM mineral oil: This master cylinder should be used with LHM type mineral oil, renowned for its low viscosity and high temperature resistance, ensuring stable, long-lasting braking system performance.

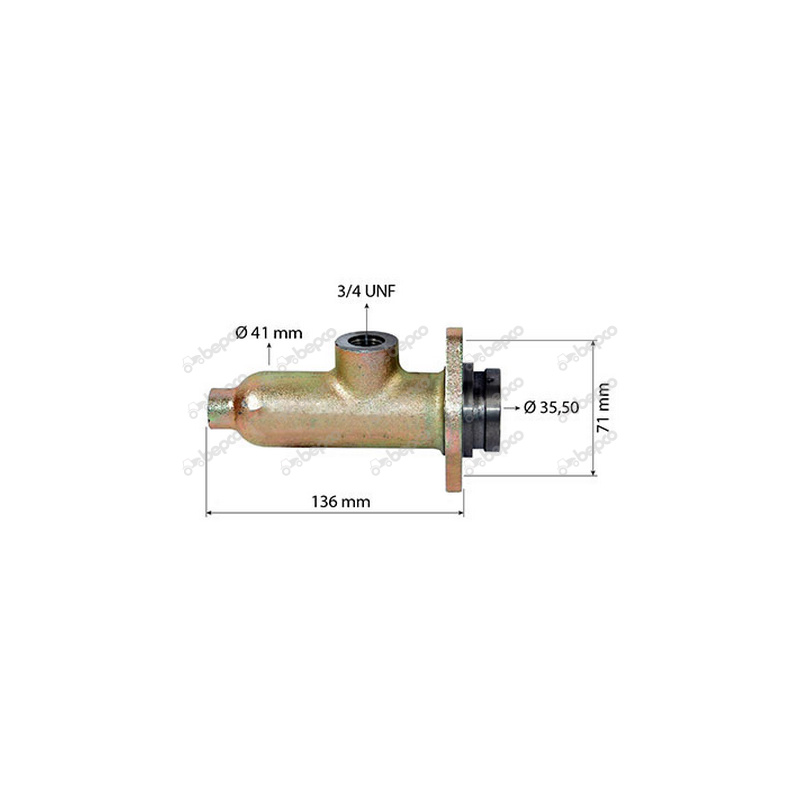

• Top fitting with 3/4" UNF thread: This fitting facilitates the connection of hydraulic lines, ensuring fast, safe installation.
• Mounting bolt spacing: 71 mm, providing solid mounting for a wide range of models.

Compatible with Massey Ferguson and Landini tractors

The 1613986M4 brake master cylinder is compatible with a wide range of tractor models Massey Ferguson, covering several series and guaranteeing increased versatility. Here are the main models on which this component can be fitted:

• Massey Ferguson: 2600, 2620, 2625, 2640, 2645, 2680, 2685, 2700, 2720, 2725, 3000, 3050, 3060, 3065, 3075, 3085, 3095, 3100, 3115, 3120, 3125, 3600, 3610, 3630, 3635, 3645, 3650, 3655, 3670, 3680, 3690, 6100, 6110, 6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190, 6200, 6235, 6235HV, 6245, 6245HV, 6255, 6255HV, 6260, 6265, 6270, 6280, 6290, 8100, 8110, 8120, 8130, 8140, 8150, 8160, 8200, 8210, 8220, 8240, 8250.
• Landini: Large 16000, Large 16500, Large 17500, Large 19000, Large L160, Large L180.

This broad compatibility means that farmers can easily replace their defective master cylinder with a part meeting the original specifications, guaranteeing the safety and performance of their machines.

Benefits of using Brake Master Cylinder 1613986M4

1. Safety and control: By ensuring efficient transmission of braking pressure, this master cylinder contributes to optimum tractor control, even in difficult working conditions.

2. Simple installation: Thanks to its standard threaded connection and adapted dimensions, this master cylinder is easily fitted to compatible models, minimizing downtime.

3. Reliable performance: The use of LHM mineral oil, coupled with a robust design, guarantees consistent performance and reduces the risk of leaks or malfunctions.

4. OEM Compliance: Meeting OEM quality standards, this master cylinder ensures performance equal to or better than factory components.

Why choose Camagris for your brake parts?

At Camagris, we specialize in the supply of tractor parts, including a wide range of brake components for Massey Ferguson and Landini. We offer high-quality products with fast delivery anywhere in Europe, enabling you to keep your machines in perfect working order.

To order brake master cylinder part no. 1613986M4, or for advice on the best parts for your equipment, visit our website at https://www.cam-agri-parts.fr/en/. Our experts are on hand to answer all your questions and help you choose the right parts for your needs.

Ensure the safety of your tractor with the 1613986M4 brake master cylinder, a reliable and durable solution for high-performance braking.
