BRAKE CYLINDER REPAIR KIT FOR FENDT

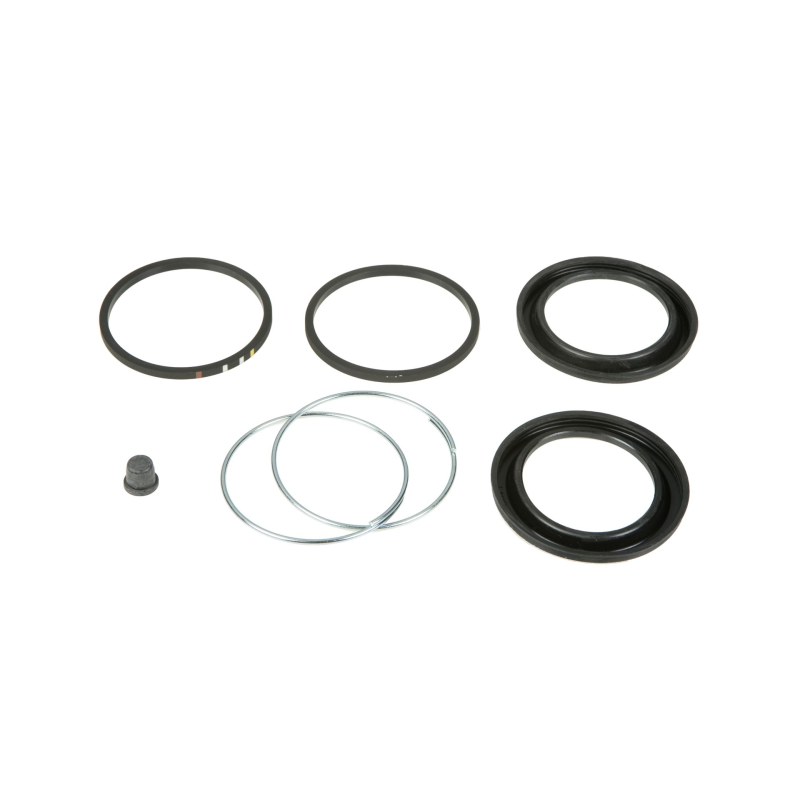

Brake Cylinder Repair Kit for Fendt, and Favorit Tractors

This brake cylinder repair kit is designed to restore the brake cylinder on several Fendt Favorit tractors. It corresponds to part number F284100070140 and is identified by a 42 mm piston, an important factor in selecting the correct version before disassembly or replacement.

Brake Cylinder Repair

This part number is used for work on a brake cylinder. In a braking system, this type of kit is used when you want to repair a compatible cylinder without automatically replacing the entire assembly. The correct choice depends primarily on identifying the part number and dimensions that match the assembly installed on the machine.

For this part, the documented function is clear: it is a repair kit designed for a brake cylinder. The source does not specify the exact location of the cylinder on the tractor, which makes prior verification particularly important before placing an order.

Key identifiers for this part number

The first reference number to check is F284100070140. The second key point is the piston diameter of 42 mm. For this type of part, this diameter helps distinguish between similar versions that may not be installed in the same way.

If you are replacing a worn-out kit or rebuilding an existing cylinder, compare the part number listed in your maintenance manual or on the removed part with this number. Then verify that the piston you are looking for is indeed 42 mm in diameter. These two checks are the most effective ways to avoid selecting the wrong part.

Fendt -Certified Applications

This kit is documented for several Fendt Favorit tractors. Known applications cover the following series:

• Fendt Favorit 600
• Fendt Favorit 610
• Fendt Favorit 611
• Fendt Favorit 612
• Fendt Favorit 614
• Fendt Favorit 615

Depending on the version, LS, LSA, S, and SA variants are also listed in the detailed compatibility information. This part is therefore intended for specific, clearly identified Favorit tractors Fendt, and not for the entire range without distinction.

Be sure to check carefully before selecting this kit

Before selecting this part number, verify the exact tractor model, the part number of the item to be replaced, and the specified piston diameter. If your machine belongs to the Favorit 600–615 series, this is a good starting point, but final confirmation must be based on the markings on your existing assembly.

To select the correct part, focus on the following three key details: brake cylinder, part number F284100070140, and 42 mm piston. These are the most important details for confirming that this kit meets your needs.

Dimensions and Technical Specifications

• 42 mm

Compatibility by Make and Model

Fendt · Tractor

• Favorit 600LS
• Favorit 600LSA
• Favorit 610LS
• Favorit 610LSA
• Favorit 610S
• Favorit 610SA
• Favorit 611LS
• Favorit 611LSA
• Favorit 611S
• Favorit 611SA
• Favorit 612LSA (Type 383)
• Favorit 612SA
• Favorit 614LSA
• Favorit 614SA
• Favorit 615LSA

Fendt

• Favorit 600
• Favorit 610
• Favorit 611
• Favorit 612
• Favorit 614
• Favorit 615

FAQ — Frequently Asked Questions

What is a brake cylinder repair kit used for?

A brake cylinder repair kit is used to restore the affected cylinder in the brake system. Within this family of parts, the kit is selected to match the cylinder being repaired, specifically based on the part number and the piston diameter indicated on the part to be replaced.

What does the 42 mm piston diameter mean for this part number?

The 42 mm piston diameter is a key selection criterion for this kit. It must match the brake cylinder installed on your tractor, as a different diameter may indicate a different version, even if the machine belongs to the same Favorit Fendt family.

Is this kit compatible with the Fendt Favorit 610SA and 614LSA?

Yes, this kit is listed for the Fendt Favorit 610SA and 614LSA. It is also listed for several other Favorit variants in the 600–615 series, with LS, LSA, S, or SA suffixes depending on the models explicitly listed in the compatibility chart.

How can I confirm part number F284100070140 before ordering?

The safest way is to check part number F284100070140 on the removed part or on your maintenance record, then verify that the piston diameter is 42 mm. The source does not specify the exact location of the cylinder, which is why it is important to compare it with your current setup.

Original replacement part numbers and brand names are provided solely for comparison purposes. This does not imply that these are original parts.
