BRAKE RECEIVER CYLINDER FOR FENDT, Ø 31 MM, F250100060120

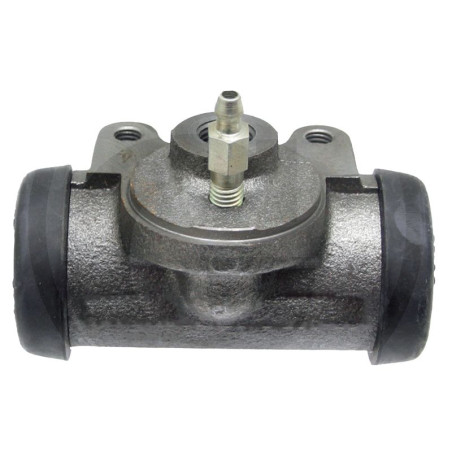

Brake Receiver Cylinder for Fendt, Ø 31 mm

The brake master cylinder, part number F250100060120, is designed for the hydraulic braking system of certain applications Fendt, including the Favorit 612LSA and the F250GT tool carrier. To select this part, the key specification is the piston diameter ( Ø 31 mm), which must be verified against your machine’s part number and exact application.

The role of the brake slave cylinder in braking

In a hydraulic braking system, the slave cylinder receives the pressure transmitted by the master cylinder. It converts this pressure into mechanical movement to actuate the braking mechanism. This function makes it a component directly linked to pedal response and braking balance on the vehicle.

When this part begins to leak, seize up, or lose effectiveness, braking performance may deteriorate. Prompt repair prevents a localized defect from causing further wear on the circuit or the controlled mechanism.

Fendt s associated with part number F250100060120

This part number is used on Fendt clearly identified applications, notably the Favorit 612LSA (Type 383) and the F250GT. This part is therefore specific to a particular assembly and should not be automatically applied to all tractors in the same series or of the same make.

If you are working on a Favorit tractor or a GT implement carrier, comparing the part number remains the surest way to confirm the correct replacement. The piston diameter is a second key identifier here.

Key Considerations for Selecting the Right Part

Before ordering, check the following three items first:

• the part number F250100060120 found on your part or in your maintenance manual;
• the piston diameter of Ø 31 mm;
• the exact application of the machine in question.

These checks are important because a cylinder that looks similar may differ in terms of its mounting or compatibility with the machine. When it comes to brake parts, careful identification is always preferable to relying on mere similarity.

When to Replace It

Replacement is generally recommended if there is a brake fluid leak, a soft brake pedal, excessive pedal travel, uneven braking, or a lockup caused by internal seizure. These symptoms indicate that the entire hydraulic brake system must be inspected.

After replacement, the system must be put back into service according to the procedure specified for your machine. If in doubt, carefully compare the part number, piston diameter, and the applicable vehicle model ( Fendt ) before selecting this part.

Dimensions and Technical Specifications

• Ø 31 mm

Compatibility by Brand and Series

Fendt · Tool Holders

• F250GT

Fendt · Tractor

• Favorit 612LSA (Type 383)

Fendt

• Compatible brand
• Favorit 612LSA
• Compatible with Favorit 612LSA and F250GT tractors

Fendt · Favorit

• 600

FAQ — Frequently Asked Questions

What is the purpose of this brake slave cylinder on a Fendt?

This brake slave cylinder converts the hydraulic pressure sent by the master cylinder into movement within the braking mechanism. On the Fendt models documented for this part number, it therefore plays a direct role in controlling the brakes when you press the pedal.

How do you identify the correct part number for a Favorit 612LSA (Type 383) or an F250GT?

Identification is based first on the part number F250100060120, then on the piston diameter (Ø 31 mm) and the exact machine application. Also check the part being replaced to confirm that your tractor or implement matches the documented configurations.

What signs might indicate that this brake master cylinder needs to be replaced?

A fluid leak, a spongy brake pedal, an abnormally long pedal travel, or uneven braking are common signs. Internal seizure can also interfere with the brake’s return or actuation. In this case, replacing the part should be considered promptly.

Is this part compatible with all Favorit 600 series Fendt?

No, this part number should not be applied to the entire series. The explicitly documented applications include the Favorit 612LSA Fendt (Type 383) and the F250GT tool holder. If in doubt, compare the part number and piston diameter before ordering.

Original spare part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
