ISKRA 12V 3KW STARTER

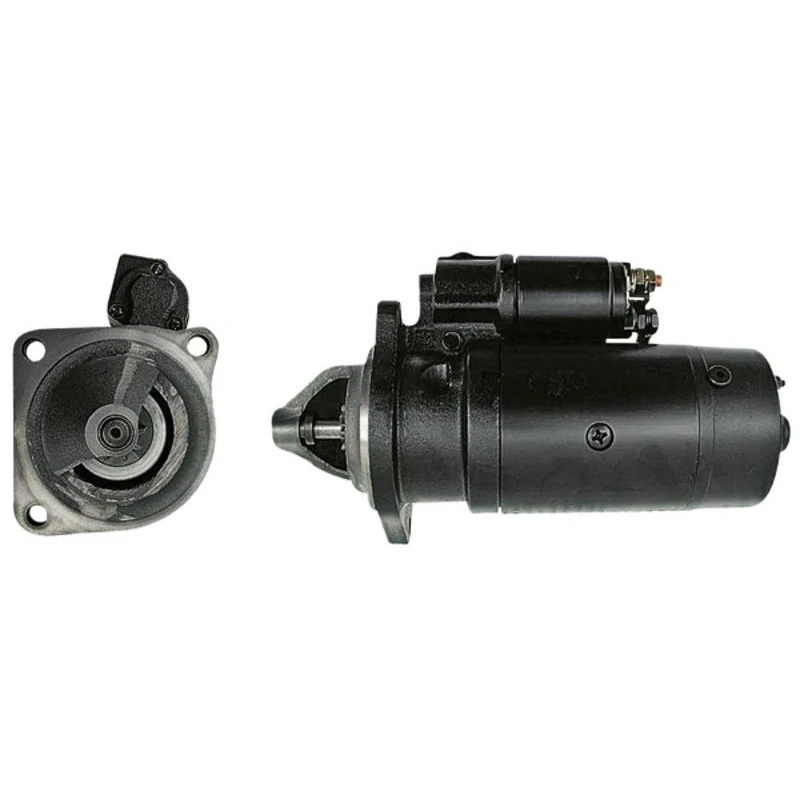

Mahle IS0403Starter Motor - Power and Performance for Agricultural Tractors

The starter is an essential component for ensuring your tractor starts reliably, especially under demanding working conditions. TheMahle IS0403starter is designed to deliver exceptional power and reliability, ensuring that your agricultural equipment operates flawlessly. This starter is particularly well-suited for tractors and agricultural machinery, offering a durable solution for many models.

Technical Specifications of the IS0403 Starter Motor

• Voltage: 12 V
• Power: 3.0 kW
• Type: AZJ3110
• Number of teeth on the pinion: 9
• Module: 3 mm
• Tooth pitch: 14.70 mm
• Outer diameter of the pinion: 35 mm
• OEM part number: 11.130.403
• Mahle Part Number: MS 195

Compatibility with Agricultural Machinery

TheIS0403starter motor is compatible with a wide range of tractors and agricultural machinery, covering numerous models and series. Here are a few examples of compatible vehicles:

• Agrifull:

  • 65, 65 DT, 65 LM, 670, 70, 70C, 70C-L, 70 DT Frutteto, 70 Frutteto, 80, 80 .66, 80 .70C, 80 .70F, 80 .76, 80C, 80 DTF, 82 .86F

• Aifo:

  • 8031, 8041, 8060, 8061, 8065

• Benfra:

  • 1.45, 215 I, 4.11, 7.07, 9.09 CH, 9.10 CH

• Fiat :

  • 1000 DT/DTS/S, 1380, 580 DT, 600, 605 C/CS, 640 DT, 65-46, 65-46DT, 65-66, 65-66DT, 70-66, 70-66DT, 70-66F, 70-66LP, 70-76F, 70-76LP, 70-76V, 70-88, 70-88DT, 80-66, 80-66DT, 80-88, 80-88DT, 80-90, 80-90DT, 85-90, 85-90DT, 1000, 1000 Sup, 1000DT, 1000N, 1000S, 550, 580, 600, 640, 670, 680, 780, 880, 900

• New Holland:

  • TL Series

• Ford:

  • 4835, 5635, 7635

• Case :

  • AVJ Series (AVJ70), JX Series (JX100U, JX1095N, JX1095V, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95), VJ Series (VJ70, VJ80)

This broad compatibility makes theIS0403starter an ideal replacement part for a wide range of agricultural models, ensuring easy installation and optimal performance.

OEM Equivalents

The MahleIS0403starter motor replaces several OEM part numbers, making it extremely versatile for repairs and replacements. Here are some of the equivalents:

• AGCO: C000900060050
• Bosch: 0001359021, 0001359102, 0001367028, 0001367082, 0986011220, 0986011221
• Claas: 6005706621
• CNH/ Fiat Agri: 87376493
• Fiat : 2022506, 4699705, 4737755, 4755109, 4807375, 88205006, 9972215
• Fiat New Holland: 4169093, 4692478, 4702248, 4832942
• Hella: 8EA 726 032-001, CS 240
• Iveco: 500333271, 504059251
• Lancia: 2022507, 4699705, 88205006
• Lester: 16659, 17111, 18029
• Lucas: LRS00847
• Magneti Marelli: 303 803 01, 632 138 15, 632 168 25, 632 168 26, 632 168 27, 632 968 65, MSN 219, MT 38 QA, MT 38 TB, MT 68 A, MT 68 AA, MT 68 AB, MT 68 AC, MT 68 AD
• Prestolite: 20500847
• Valeo: 436 073, 458 297
• Wilson: 91-15-7010

Important Notes

It is important to note that we offer a reduced-ratio version, the IS1386, as a replacement for theIS0403starter. This model delivers improved performance thanks to its reduction gear mechanism, which provides increased power while extending the starter’s service life.

Why Choose the Mahle IS0403 Starter?

TheMahle IS0403starter stands out for:

• Reliable performance: With 3.0 kW of power, this starter ensures fast and efficient starting, even under difficult conditions.
• Wide compatibility: Suitable for a wide range of tractors and agricultural machinery, this starter is a versatile choice for professionals in the industry.
• Robust design: Manufactured with high-quality materials, it is built to last and withstand the rigors of farm work.

Conclusion

TheMahle IS0403starter is an essential part for keeping your agricultural equipment in top working condition. Its compatibility with a wide range of models, its durability, and its performance make it a must-have for farmers and professionals. AtCamagris, we’re committed to providing you with high-quality replacement parts and fast delivery so your equipment stays operational under any circumstances.

For more information or to place an order, please don’t hesitate to contact us. Our team is here to provide you with the best solutions for your agricultural needs.
