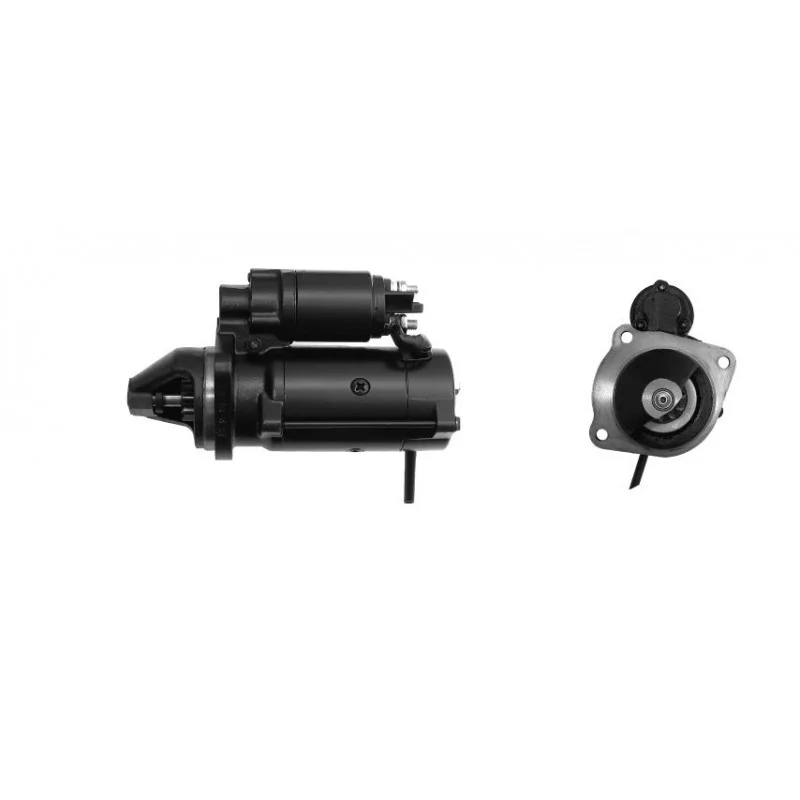

12 V, 3.2 KW IS 1208 STARTER MOTOR FOR MCCORMICK, LANDINI, AND LINDNER

The 12 V, 3.2 kW IS 1208starter motor is designed for agricultural applications on McCormick, Landini, and Lindner tractors. This part is distinguished by its 10-tooth pinion, its configuration with a reduction gear, and several useful markings for inspection prior to replacement. To select the correct part, it is important to compare the voltage, power rating, pinion dimensions, and part numbers.

A 12 V starter motor tailored to starting requirements

The starter’s role is to turn the engine over during startup. For this part number, the specified voltage is 12 V with a power rating of 3.2 kW. These two values serve as an initial selection criterion, especially when multiple starter versions exist within the same tractor family.

The “with reduction gear ” designation should also be taken into account. It allows for more precise identification of the unit installed on the machine and helps avoid confusion between two starters that appear similar.

Technical specifications to check on the pinion

The pinion for this part number has 10 teeth. Several dimensions make it easier to verify the part once it has been removed: module 3.175 mm, distance between the two teeth 15.42 mm, and outer diameter of the pinion 39.6 mm. These measurements are crucial for confirming a proper mechanical fit.

If you are replacing a worn or damaged starter motor, also note the part number marked on the old unit. Cross-referencing the pinion dimensions with equivalent part numbers is often the surest way to distinguish between two similar assemblies.

Comparison part numbers to match the removed part

The listed replacement part number is IS 1208. It can be compared to the following numbers:

• 91902C2
• A162469
• A186271
• A187728
• 11.131.716
• AZE4165
• ARGO 4213 912 M91

These numbers are useful for identifying the part in place. They do not replace a visual and dimensional inspection, particularly of the gear and the overall configuration of the starter.

Listed for use on McCormick, Landini, and Lindner

This starter is listed for tractors manufactured by McCormick, Landini, and Lindner. Specific applications include the McCormick C, CX, and MC series; the Landini PowerMondial, TechnoFarm, Vigneti, and Vision lines; and Lindner Geotrac models. The complete list of compatible models is provided immediately following this text.

Before ordering, verify that your machine is indeed one of the listed models and check the key specifications: 12 V, 3.2 kW, 10 teeth, 3.175 mm, 15.42 mm, and 39.6 mm. If you are replacing an existing part, also compare the part numbers to confirm you are selecting the correct replacement.

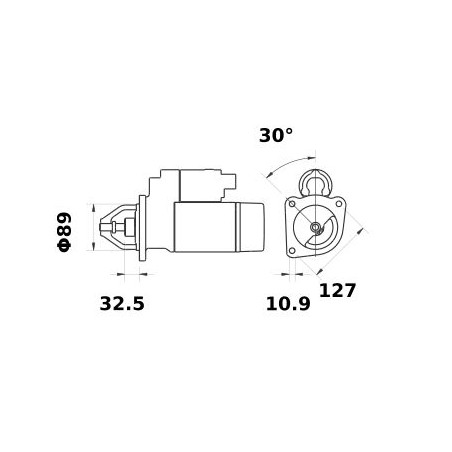

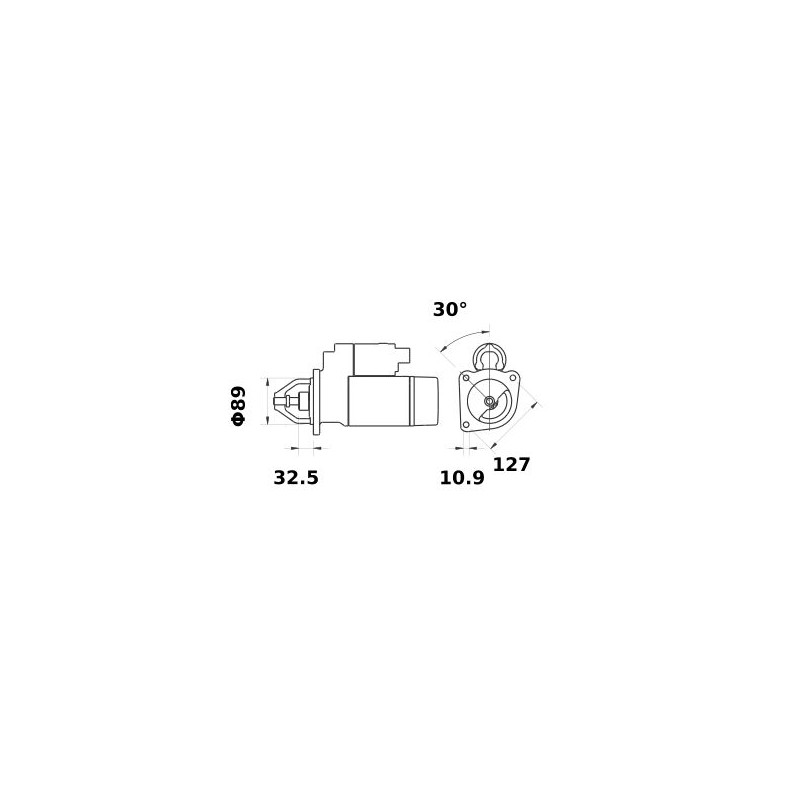

Dimensions and Technical Specifications

• 3.175 mm
• 15.42 mm
• 39.6 mm

Compatibility by brand and series

McCormick · C Series

• C 80

McCormick · CX Series

• CX 95

McCormick · MC Series

• MC 80
• MC 90
• MC 95
• MC 100

PowerMondial

• 105
• 110

TechnoFarm

• Europa 65 Tier 3
• Europa 75 Tier 3
• Europa 80 Tier 3

Vigneti

• 65-REXCAB-Tier 3
• 75-REXCAB-Tier 3
• 80-REXCAB-Tier 3

Vision

• 100 Tier 3
• 105 Tier 3

Geotrac

• Geotrac 83
• Geotrac 93
• Geotrac 103

FAQ — Frequently Asked Questions

How do I confirm the gear identification on this starter motor?

The first step is to check the pinion. This part number specifies 10 teeth, a module of 3.175 mm, a distance between teeth of 15.42 mm, and an outside diameter of 39.6 mm. Compare these values with the starter motor you removed to avoid confusion between similar models.

What does the “with reduction gear” notation mean on this IS1208 starter?

It means this version is specified as having a reduction gear. This is a useful identifier for finding the correct starter assembly and distinguishing this part number from other visually similar models. During inspection, also verify the 12 V voltage, the 3.2 kW power rating, and the 10-tooth pinion.

Which part numbers can this starter be compared to?

This IS 1208 part number can be compared to the following numbers: 91902C2, A162469, A186271, A187728, 11.131.716, AZE4165, and ARGO 4213 912 M91. These part numbers are used to verify the identity of the part being replaced, in addition to the pinion specifications and listed applications.

Is this starter specified for specific McCormick, Landini, and Lindner tractors?

Yes. The listed applications include the McCormick C 80, CX 95, MC 80, MC 90, MC 95, and MC 100. For Landini, the listed models are PowerMondial 105 and 110, TechnoFarm Europa 65 Tier 3 through Europa 80 Tier 3, Vigneti 65-REXCAB-Tier 3 through 80-REXCAB-Tier 3, Vision 100 Tier 3 and 105 Tier 3, as well as Lindner Geotrac 83, Geotrac 93, and Geotrac 103.

The original replacement part numbers and brands are provided for comparison purposes only. This does not imply that these are original parts.
