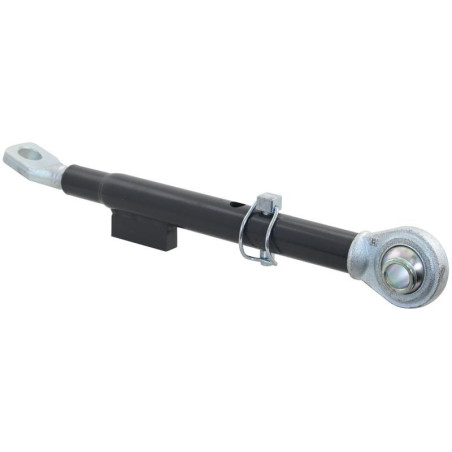

LIFTING STABILIZER FOR MASSEY FERGUSON

Linkage stabilizer for tractors Massey Ferguson 5425, 5435, 5445, 5455, 5460, 5465

The lift arm stabilizer is an essential part of the lift system on agricultural tractors, keeping attached implements in a stable position and preventing excessive lateral sway during field operations. For Massey Ferguson 5400 Series tractors, this stabilizer is designed to ensure optimum control and enhanced stability when operating agricultural implements.

Compatible models:

This stabilizer is compatible with 5400 Series tractors:

• Massey Ferguson 5425
• Massey Ferguson 5435
• Massey Ferguson 5445
• Massey Ferguson 5455
• Massey Ferguson 5460
• Massey Ferguson 5465

Technical data :

• Ball joint bore: 25.4 mm (1 inch)

  • The ball joint connects the stabilizer to the tractor's linkage arm. This standard hole diameter ensures a precise fit and optimum strength of the assembly.

• Eyelet drilling: 23 mm

  • The eyelet is the other attachment point for the stabilizer. With a 23 mm hole, it guarantees perfect compatibility with the linkage elements of the lifting system.

• Maximum length: 645 mm

  • This length corresponds to the most extended position of the stabilizer, offering a wide range of movement when the lift arm is used with different types of implements.

• Minimum length: 495 mm

  • In the shortened position, the stabilizer limits the lateral movements of the lifting arm, keeping the attached implement in a more rigid, controlled position.

• Thread: M27

  • This robust 27 mm thread guarantees high resistance to mechanical stress and allows precise adjustments to the length of the stabilizer.

Role of the linkage stabilizer :

1. Maintaining the stability of hitched implements:

   • The stabilizer controls the lateral movement of the linkage arm, ensuring that attached implements (such as a plough or harrow) remain well aligned with the tractor and do not swing excessively, even on uneven terrain.

2. Reduced wear and tear:

   • By preventing uncontrolled movements of attached implements, the stabilizer protects not only the implement but also tractor components from premature wear due to excessive shock or vibration.

3. Improved control and safety:

   • By maintaining a more stable position for attached implements, the stabilizer improves safety when maneuvering, particularly when turning or working on sloping terrain.

Why choose this Camagris stabilizer?

• Perfect compatibility: This stabilizer is specially designed for Series 5400 models from Massey Ferguson, guaranteeing a perfect fit and maximum efficiency.
• High-quality materials: Made from sturdy materials, this stabilizer is designed to withstand the toughest farming conditions, ensuring a long service life.
• Fast delivery: At Camagris, we understand the importance of keeping your equipment up and running. That's why we offer fast delivery throughout Europe.

If you need any further assistance or would like to place an order, please do not hesitate to contact us. Camagris, your partner for agricultural spare parts, offers high-quality solutions for the maintenance and repair of your machines Massey Ferguson.
