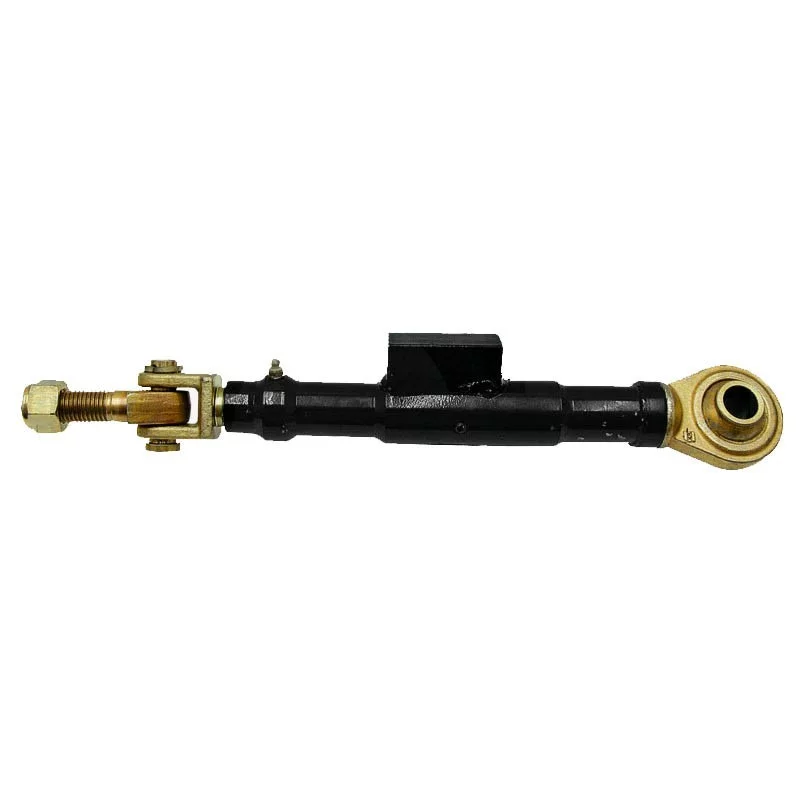

LIFT STABILIZER FOR MASSEY FERGUSON, CLAAS, AND RENAULT 7700061824

This lift stabilizer is a rear hitch component designed for Massey Ferguson tractors, as well as several Claas and Renault models. It is installed in the lift system to help control lateral movement of the mounted implement. This part can be identified by its dimensional specifications, threading, and cross-reference numbers.

Role of the Part in the Lift System

A lift stabilizer is one of the components that guide the three-point hitch. It helps keep a mounted implement in a more stable position during operation, maneuvering, and transport. If the part exhibits play, deformation, or significant wear at the connection points, replacement may be necessary to restore proper guidance of the assembly.

Useful reference points for identifying this part

To confirm the correct model, first compare the dimensions listed on your part: 405 mm, 610 mm, and length 502. The data sheet also specifies a 25.4 ball and an M24 x 3 thread—two practical reference points for disassembly. These features are often more reliable than a simple visual resemblance, especially on tractors that have previously been fitted with aftermarket parts.

Part numbers to compare:

• 1573794474M91
• 3615707M91
• 3615707M92
• 3615707M93
• 3794419M91
• 3794474M91
• 7700043410
• 7700061824

Applications listed for Massey Ferguson, Claas, and Renault

This part number is listed for numerous Massey Ferguson tractors and for several Claas/Renault models, particularly those in the Ares series as well as the 710, 715, 720, 725, 735, 815, 816, 825, 826, and 836. A detailed list of applications is provided on the product sheet; it allows you to identify your exact model without having to consider the entire series as compatible.

Be sure to verify before replacing the part

Before ordering, verify the exact tractor model, the part number on the part (if still legible), and then the dimensions and thread type. If your machine has undergone hitch modifications over time, directly comparing it to the part you removed is still the best method. If in doubt, use the dimensions and part numbers above to identify the correct stabilizer.

Dimensions and Technical Specifications

• 405 mm
• 610 mm
• Length: 502

Compatibility by Make and Model

Massey Ferguson

• 3095
• 3115
• 3120
• 3120T
• 3125
• 3140
• 5425
• 5435
• 5445
• 5455
• 5460
• 5460SA
• 5465
• 5470
• 6110
• 6120
• 6130
• 6140
• 6150
• 6160
• 6170
• 6180
• 6190
• 6235
• 6235HV
• 6245
• 6245HV
• 6255
• 6255HV
• 6260
• 6265
• 6270
• 6445
• 6455
• 6460
• 6465
• 6470
• 6475
• 6480
• 6485
• 6490
• 6495
• 6497
• 6499
• 7614
• 7615
• 7616
• 7618
• 7619
• 7620
• 7622
• 7624
• 7626
• 3050
• 3060
• 3065
• 3070
• 3075
• 3080
• 3085
• 5,475
• 5480
• 6612
• 6613
• 6614
• 6615
• 6616
• 8110
• 8120
• 8130
• 8140
• 8150
• 8160
• 8210
• 8220
• 8240
• 8250
• 6280
• 6290
• Buy a stabilizer

Claas / Renault

• Ares 540 RX
• 546 RX
• 547 ATX
• 550 RX
• 556 RX
• 557 ATX
• 566 RX
• 567 ATX
• 577 ATX
• 610 RX
• 616 RX
• 617 ATZ
• 617 RC
• 620 RX
• 626 RX
• 630 RZ
• 636 RZ
• 640 RZ
• 656 RZ
• 657 RC
• 696 RZ
• 697 ARZ
• 697 RC
• 710
• 715
• 720
• 725
• 735
• 815
• 816
• 825
• 826
• 836

Claas / Renault · S Series

• Rigid or Full-Truck
• You’ll find the equipment you need for your tractor. Explore our selection now

Massey Ferguson · SP Series

• Massey Ferguson tractors. For example
• you can find stabilizers specifically designed for the 3000 to 6100 series
• the 35 Series
• 37
• 42
• 65
• 135
• 825
• 835
• 865
• FF30DS
• FF30GS
• TEA20
• TED20
• TEF20
• and many more

Massey Ferguson · 3000 Series

• to 6100
• including the 35 series
• 37
• 42
• 65
• 135
• 825
• 835
• 865
• FF30DS
• FF30GS
• TEA20
• TED20
• TEF20. This allows you to match it to your tractor series

Massey Ferguson / Massey Ferguson · Tractor series

• tractor series. Next,
• take the stabilizer’s dimensions into account. Some are adjustable in length,
• , which can offer greater flexibility. Finally,
• consider the stabilizer’s mounting type. Some models feature a mechanical mounting system
• , while others are equipped with a hydraulic attachment system. To ensure compatibility
• , feel free to consult the manufacturer or a professional

Claas

• Lift Stabilizer

Renault

• Lift Stabilizer 7700061824

Renault · S Series

• Renault tractors
• including the Ares 500 series
• 600
• 700
• 800, and Atles. It replaces part numbers 7700043410 and 7700061824. Its dimensions are precise (L1:405
• L2: 502
• H:25.75
• D:50.8
• A: M24x3
• B:70
• F:M30x2 (in mm)
• ensuring a perfect fit for your tractor

Massey Ferguson · 6400 Series

• User Testimonials

FAQ — Frequently Asked Questions

What is the purpose of a lift stabilizer on a tractor?

A lift stabilizer is used to limit the side-to-side movement of the rear hitch. It helps guide the mounted implement more effectively during work and maneuvers. For this part number, the selection is primarily based on comparing dimensions, thread sizes, and related part numbers.

How do I identify part number 7700061824 before ordering?

Identification is done by comparing it to the part being replaced. Check the dimensions listed on the spec sheet, including 405 mm, 610 mm, and length 502, as well as the 25.4 ball and the M24 x 3 thread. Comparing similar part numbers also helps prevent errors.

Can this part be used on a Claas / Renault Ares 540 RX, 546 RX, or 697 RC?

Yes, these models are listed among the applications specified for this part number. The same part is also listed for other Claas / Renault Ares models, as well as for the 710, 715, 720, 725, 735, 815, 816, 825, 826, and 836. We still recommend checking the exact model.

Which part numbers should be compared for this lift stabilizer?

You can compare this part with part numbers 1573794474M91, 3615707M91, 3615707M92, 3615707M93, 3794419M91, 3794474M91, 7700043410, and 7700061824. This verification is useful if your tractor has already been repaired or if the part currently installed is no longer legible.

The original replacement part numbers and brands are provided for comparison purposes only. This does not imply that these are original parts.
