TEMPERATURE SENSOR

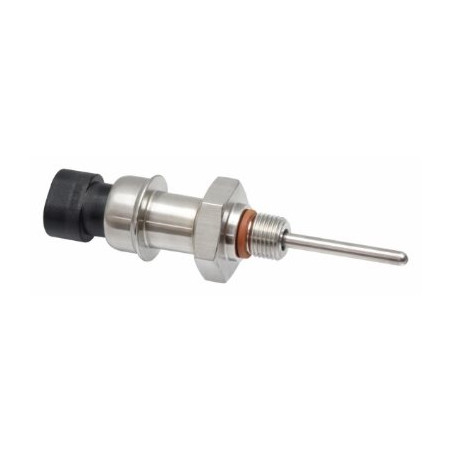

Temperature Sensor – Intake Manifold – Part No. RE522823 – John Deere

TheRE522823 temperature sensorplays a critical role in the electronic engine management system onJohn Deere tractors, combine harvesters, and forage harvesters. Located in theintake manifold, it measures the temperature of the air drawn into the engine. This information is transmitted to the electronic control unit (ECU) to optimizecombustion, engine performance, andfuel economy.

This part is particularly susceptible to wear over time or to extreme temperature fluctuations. If it malfunctions, it can cause a loss of power, poor fuel injection, or difficulty starting the engine.

⚙️ Technical Specifications

• Camagris Part Number: RE522823 - Aftermarket Part

• Original part numbers: RE522823, SW-S-W8001

• Type: Intake Air Temperature (IAT) Sensor

• Measurement range:40°C to 100°C

• Thread:M10 x 1

• Installation: Intake manifold – compatible with John Deere engine management system

This sensor is designed with high-precision components to ensure reliable air temperature readings, even under extreme conditions (mud, dust, engine heat, etc.).

Compatibility with John Deere Machines

This sensor is compatible with avery wide range of John Deere machinery,from 5000 Series to 9030T tractors, as well as numerousW, T, S, C, and WTS Series combine harvesters andforage harvesters.

 John Deere Tractors

✅ 8R / 8RT Series

• 8225R, 8235R, 8245R, 8260R, 8270R, 8285R

• 8295RT, 8310R, 8320RT, 8335R

• 8345R, 8345RT, 8360R, 8370R

✅ 5000 Series

• 5430i

✅ 6030 / 6030 Premium Series

• 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR

• 6530 PR, 6534 PR, 6630 PR, 6830 PR, 6930 PR

✅ 7030 Series / 7030 Premium

• 7430 PR, 7530 PR, 7730, 7830, 7930

✅ 7050 Series

• 7250

✅ 8000 Series

• 8100, 8200

✅ 8030 / 8030T Series

• 8130, 8230, 8230T, 8330, 8330T, 8430, 8430T, 8530

✅ 9000 Series

• 9560, 9660

✅ 9030 / 9030T Series

• 9230

 John Deere Combines & Forage Harvesters

✅ C Series

• C670

✅ CWS / WTS Series

• 1570

✅ S Series

• S560

✅ T Series

• T550, T560, T660, T670

✅ W Series

• W540, W550, W650, W660

✅ WTS Series

• WTS 9540 / 9540i

• WTS 9560 / 9560i

• WTS 9580 / 9580i

• WTS 9640, WTS 9660, WTS 9680

 What is the intake manifold temperature sensor used for?

The RE522823 sensor measures the temperature of the air entering the engine. This data is used to:

• Regulate the air/fuel mixture

• Optimize injection timing

• Adjust power output based on ambient conditions

• Reduce emissions

• Prevent engine over-revving or overheating

A faulty signal can cause engine malfunctions, trigger the diagnostic warning light, or result in excessive fuel consumption.

 Symptoms of a faulty sensor

• Loss of engine power

• Engine warning light on

• Difficulty starting when the engine is warm

• Irregular idle

• Error message on the ECU diagnostic display
