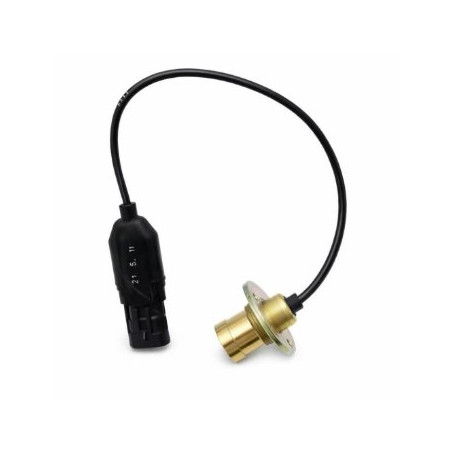

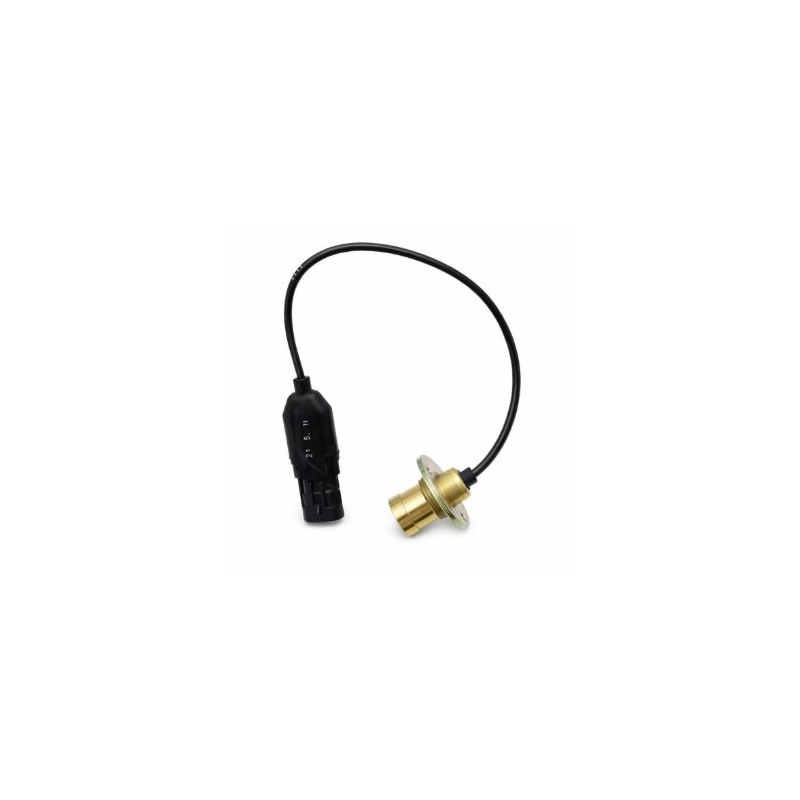

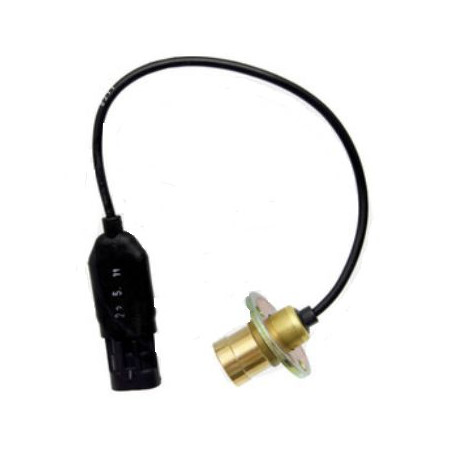

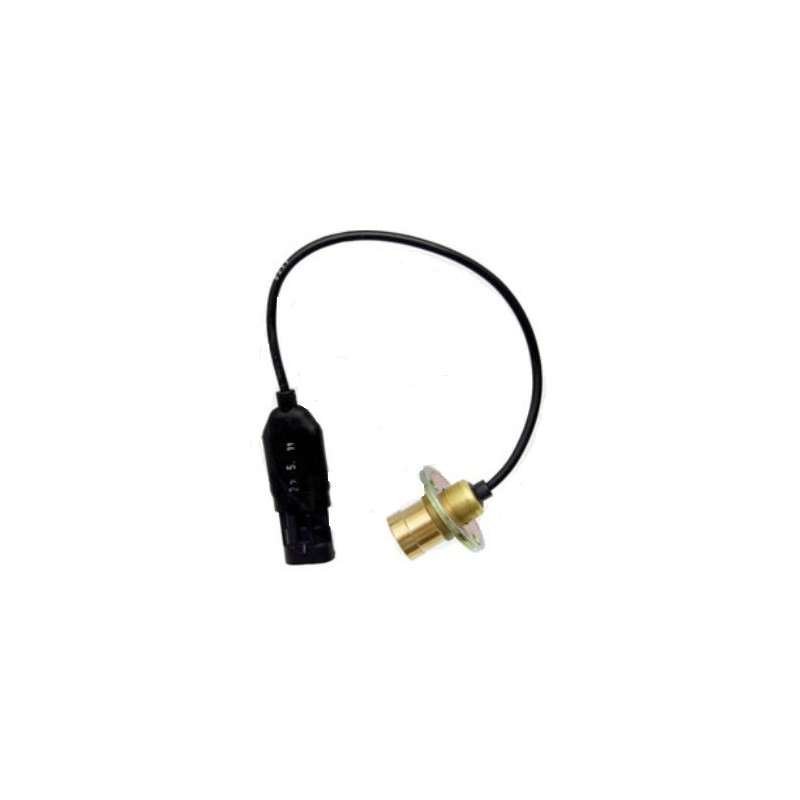

FORCE SENSOR FOR JOHN DEERE, PART NO. AL169481

The John Deere load cell, part number AL169481, is designed for several generations of tractors, from the 5620 to the 6630, depending on the intended application. This part is used to measure the load on the tractor and must be selected based on the exact model identification. Part number AL169481 is the primary reference for selecting the correct replacement part.

Role of this force sensor on the tractor

A force sensor transmits information related to the force measured on the component to which it is attached. On a tractor, this data can be used by systems that respond to this measurement. For this reason, a part that looks similar should not be replaced based solely on visual appearance: the part number match and the machine-specific application remain essential.

For this type of component, the precision of identification is just as important as the part’s general designation. If you’re working on a John Deere tractor used in the field or in the shop, it’s helpful to start with the part number marked on the old part or the corresponding maintenance documentation.

Intended Applications on John Deere Tractors

Part number AL169481 is associated with many John Deere tractors. It covers models ranging from the 5620, 5720, and 5820 to the 6530 and 6630, among others. SE and Premium variants are also listed in the detailed compatibility information. Given this wide range of applications, it is particularly important to verify the exact model before placing an order.

Since there are similar versions within the same tractor family, you shouldn’t limit your search to just the series. A difference in the suffix or trim level can be crucial in identifying the correct part.

Useful guidelines for identifying the correct part number

To select this force sensor, first check the following points:

• the part number AL169481 found on your part or in your documentation;
• the exact tractor model, such as 6420S, 6205, 6215, or 6415;
• whether there is a variant within the model range, such as SE or Premium.

These checks help prevent confusion between very similar models. At John Deere, a single numerical base may correspond to multiple versions, which is why verifying the complete model designation is particularly important.

When to Consider Replacement

Replacing a force sensor is generally considered when a diagnostic indicates this part or when measurement data becomes inconsistent. Before installation, carefully compare the part number and the machine assignment. If your tractor is listed among the intended applications, also take its full part number into account to correctly distinguish between variants.

To verify that you have the correct part, use part number AL169481 and the exact tractor model before confirming your order.

Compatibility by Brand and Series

John Deere

• 5620
• 5720
• 5820
• 6010
• 6110
• 6210
• 6020
• 6120
• 6220
• 6100
• 6200
• 6130
• 6230
• 6500
• 6300
• 6310
• 6410
• 6320
• 6420
• 6420S
• 6400
• 6205
• 6505
• 6215
• 6415
• 6600
• 6510
• 6610
• 6520
• 6620
• 6530
• 6630

SE

• 6010
• 6110
• 6210
• 6310
• 6410
• 6020
• 6120
• 6220
• 6100
• 6200
• 6300
• 6400
• 6320
• 6420
• 6520
• 6620
• 6510
• 6610

Premium

• 6230
• 6330
• 6430
• 6530
• 6630

FAQ — Frequently Asked Questions

What is the purpose of a load cell on a tractor?

A load cell is used to transmit information about the force measured on the tractor. This data is used by systems that need to respond to this measurement. To replace it correctly, it is especially important to verify the part number and the exact application on the machine.

Is this AL169481 sensor compatible with the John Deere 5620, 6420S, or 6630?

Yes, the John Deere 5620, 6420S, and 6630 models are among the applications listed for part number AL169481. Other tractors are also compatible. Before ordering, always verify the full model designation, especially if there is an SE or Premium variant in your configuration.

How can I verify that part number AL169481 is the correct one for my tractor?

The surest way is to compare part number AL169481 with the one listed on the part currently installed or in the tractor’s maintenance manual. Also verify the exact model, such as 6205, 6215, 6415, or 6420S, to avoid confusion between similar John Deere models.

When should this type of force sensor be replaced?

Replacement is generally performed after a diagnosis confirms a measurement error or inconsistent load data. Since several similar tractors may use different part numbers, it is best to verify the part number and machine application before removing and then reinstalling the part.

Original replacement part numbers and brands are provided for comparison purposes only. This does not imply that these are original parts.
