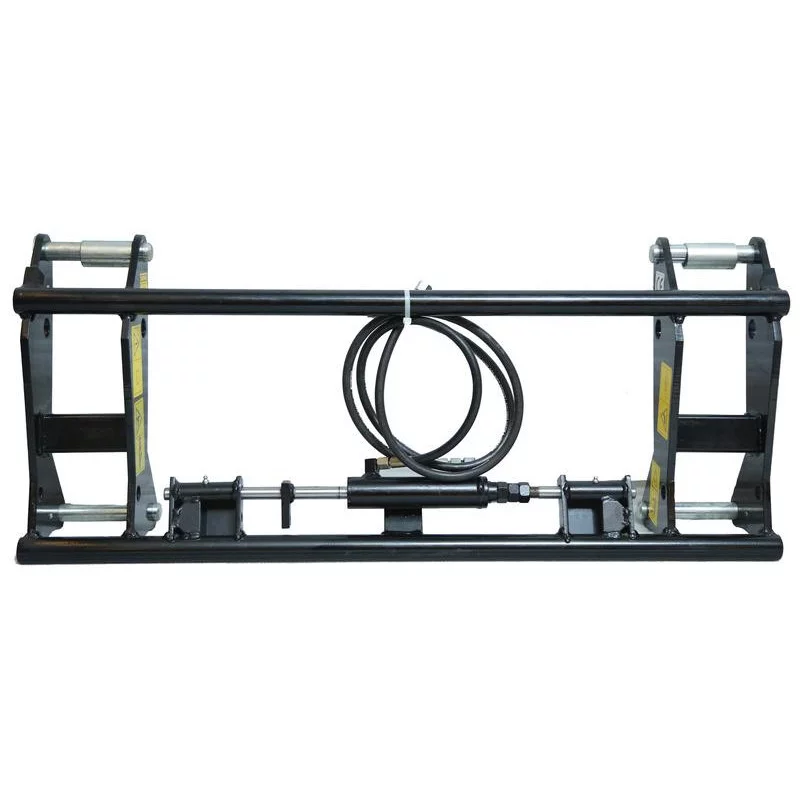

HYDRAULIC-LOCKING EURO LOADER INTERFACE

The EURO-standard loader interface with hydraulic locking is designed for use on a front-end loader or telescopic handler to simplify the attachment of compatible implements. The hydraulically controlled locking mechanism allows the attachment to be engaged without leaving the cab. This model features a standard EURO attachment and a 14 x 1.5 hydraulic connection, which is useful for identification prior to installation.

An interface frame designed for tool changes

On a loader, the interface connects the carrier to the attachment. In this version, the hydraulic locking mechanism replaces manual operation at the frame, making equipment changes more convenient when performing consecutive tasks.

This type of interface is ideal for users who work with multiple attachments throughout the day. It is operated from the cab, provided the machine has the necessary front hydraulic power.

Key features of this model

This interface has features that are easy to check before purchase:

• Mounting type: EURO standard
• Locking type: hydraulic
• Hydraulic connection: 14 x 1.5
• Certification: CE

The structure is advertised as reinforced for standard agricultural use. The main advantage of this model is the combination of a EURO-standard frame and a hydraulic locking system, which is desirable when you want to minimize repetitive ground operations.

What to Check Before Installation

The first thing to confirm is the attachment standard for your implements. This interface is designed for a EURO-type attachment; therefore, the implement used must comply with this standard.

The second point is the presence of a front hydraulic outlet or a third-function outlet on the loader or telehandler. This connection is necessary to power the hydraulic locking mechanism. Without this control, the interface cannot be used as intended.

Finally, the 14 x 1.5 fitting serves as a concrete reference point for verifying compatibility with your hydraulic system. This should be checked before any installation, especially if your machine has already undergone circuit modifications.

Applications and Daily Use

This interface is designed for front loader and telehandler users working with EURO-standard attachments. It allows you to manage attachment changes via a control integrated into the operator’s station, which can be useful during material handling, feeding, or recovery operations.

If you are replacing an existing interface, check the attachment standard of the implement, the type of hydraulic control available on the machine, and whether it is compatible with the 14 x 1.5 connector. These are the most reliable indicators for identifying the correct part number.

Before finalizing your selection, simply verify that your implements meet the EURO standard and that the front hydraulic supply required for locking is present.

FAQ — Frequently Asked Questions

What is the purpose of the hydraulic lock on this EURO loader interface?

The hydraulic locking system is used to lock or unlock the attachment from the cab, without direct manual manipulation of the frame. This feature makes it easier to change attachments on the job. However, a front hydraulic power source on the machine is required to operate the interface.

What should you check on the loader or telehandler before choosing this interface?

You need to check two essential points: the attachment standard for the implement, which must be EURO-type, and the presence of a hydraulic port or a third function at the front. Without this hydraulic supply, the hydraulic locking system cannot be operated correctly.

What does the 14 x 1.5 hydraulic connection refer to?

The designation “14 x 1.5” refers to the type of hydraulic fitting specified for this interface. It’s a useful reference for identifying the intended connection before installation. Verify this specification with your hydraulic system to avoid any thread mismatches or compatibility issues with the machine.

Can this interface accommodate any front-loader attachment?

No, it is designed for attachments that use a EURO-type mounting. The hydraulic lock facilitates attachment, but it does not replace the need to verify the attachment’s mounting standard and compatibility with the carrier machine. A visual inspection before purchase is still recommended.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
