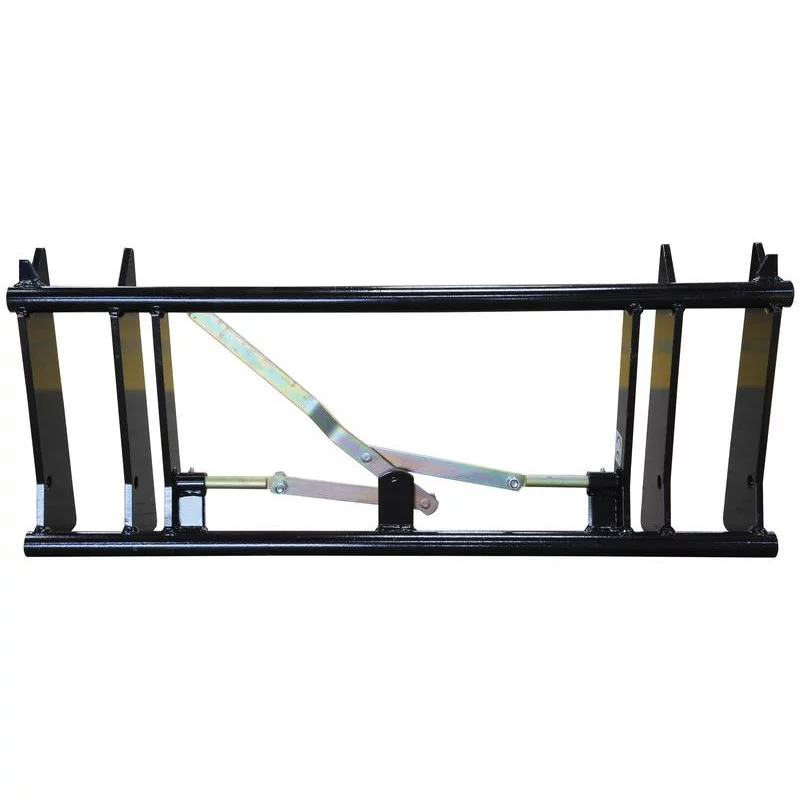

EURO SOLDER-ON CHARGER INTERFACE WITH CENTRAL LOCKING SYSTEM

The EURO-style weld-on loader interface is a frame on the loader side designed to accommodate tools with EURO-standard mounting. This version with a centralized locking system is suitable when you need to create, replace, or retrofit a front loader attachment via welding. It meets a simple need: to have a mount compatible with the EURO standard, featuring a centralized locking system and CE certification.

A loader-side EURO frame to mount your attachments

On a front loader, the interface connects the carrier to the material-handling or loading attachment. In this configuration, the frame is welded to the loader side to allow for the attachment of equipment designed for the EURO mounting standard.

The centralized locking system is one of the key features of this model. On this type of carrier plate, it allows the attachment to be secured using a single control. This is a useful feature if you’re looking for a cohesive system with a standard EURO attachment, without having to use multiple locking controls.

Key features of this model

• Type: EURO-type front loader interface
• Mounting: weld-on version
• Locking: centralized
• Mounting: EURO standard
• Compliance: CE-certified

This interface is designed for use on a loader equipped with—or to be equipped with—a loader frame intended to accommodate agricultural implements compatible with the EURO standard. Depending on your equipment, this standard is commonly required for attachments such as a bucket, grapple, or fork. The choice here is based primarily on the mounting method and attachment standard, not on a specific tractor brand.

What to check before selecting this weld-on frame

The first consideration is the loader’s configuration. This part is designed for welding installation; therefore, it does not automatically replace a bolted interface or an assembly already specific to a loader’s kinematics. Check the available clearance, the position of the loader plate to be attached, and the space required for the locking mechanism.

The second point is compatibility with your implements. The “EURO standard” designation is crucial: your attachments must be designed for this standard. Whether you need a modification, a frame replacement, or the fabrication of a loader-side mount, this type of weld-on interface provides a mounting base suitable for this purpose.

A practical choice for retrofitting a loader

This part addresses a common workshop need: refurbishing a skid, rebuilding a mounting bracket, or preparing a loader for use with EURO-standard attachments. The welded mounting allows for adaptation to the carrier vehicle, provided you follow the specified dimensions and installation procedure for your equipment.

Before ordering, be sure to check whether your assembly requires a centralized locking mechanism and whether your tools are compatible with the EURO standard mounting.

FAQ — Frequently Asked Questions

What is this weld-on EURO-style loader interface used for?

It is used to create or replace the loader-side mount for holding tools with EURO-standard mounting. This part is welded to the carrier and features a central locking mechanism, making it suitable for setups where you want to maintain or adopt the EURO standard on a front loader.

What does the centralized locking mechanism on this EURO frame mean?

The centralized locking system allows the tool to be secured using a single mechanism on the interface. On this type of frame, it makes it easier to attach EURO-standard compatible equipment and helps maintain consistent locking from one side of the front loader to the other.

Is this interface compatible with all front loaders?

No, compatibility cannot be assumed based solely on the term “EURO.” This model features a front loader-side frame designed for welding; therefore, you must verify the available mounting template, the configuration of the mount to be installed, and compatibility with your EURO-standard attachments before selecting it.

How can you tell if this model meets your needs?

This model is suitable if you are looking for a weld-on loader interface—not a pre-assembled unit—with a centralized locking mechanism and EURO-standard fasteners. Also verify that your project involves the loader side of the truck bed and that it uses tools designed for this standard.

The original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
