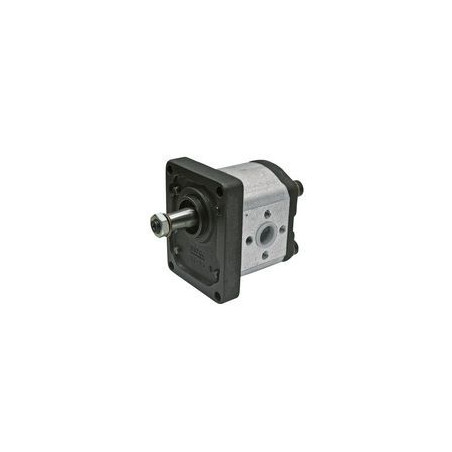

HYDRAULIC PUMP 16 CM3 (LEFT ROTATION DIRECTION)

Hydraulic Single GearPump for Tractors Fiat, Ford, Case IH, Lamborghini, Hurlimann - Reference 5129483

The single-body hydraulic gear pump is an essential part of the hydraulic systems on many agricultural tractors. This pump, part no. 5129483, is compatible with a wide range of tractor models Fiat, Ford, Case IH, Lamborghini, and Hurlimann, guaranteeing constant, efficient hydraulic flow for a variety of farm operations. Thanks to its robustness and single-body gear design, this pump offers exceptional reliability with low maintenance costs, while ensuring optimum hydraulic performance.

Technical specifications of the Hydraulic Pump:

• Direction of rotation: counter-clockwise
• Suction-side connections: Ø 40 mm, 4 holes, M8
• Pressure-side connections: Ø 30 mm, 4 holes, M6
• Nose Ø: 36.5 mm
• Displacement: 16 cm³/rev
• Drive shaft: Cone 1:8, Ø 17.46 mm
• Equivalent part numbers: 1901324, 1930055, 1930068, 5086286, 5120277, 5120849, 5169772, 5179719, 8280127, 8282339, 9967928

Hydraulic Pump Compatibility

This hydraulic gear pump is compatible with many tractor models from Fiat, Ford, Case IH, Lamborghini and Hurlimann. Here is the complete list of compatible models:

Fiat:

Series 56 :

• 55-56, 60-56, 65-56, 70-56

Series 66 :

• 45-66, 45-66 S, 50-66, 50-66 S, 55-66, 56-66 S, 60-66, 60-66 F, 60-66 S, 65-66, 65-66 S, 70-66, 70-66 F, 70-66 LP, 70-66 S, 80-66, 80-66 F, 80-66 S

76 series :

• 45-76 V, 55-76 F, 55-76 V, 60-76 F, 70-76 F, 70-76 LP, 70-76 V, 80-76 F

86 series :

• 50-86 S V, 50-86 V, 55-86 F, 55-86 S V, 55-86 V, 60-86 F, 60-86 S V, 60-86 V, 62-86 F, 70-86 S V, 70-86 V, 72-86 F, 72-86 LP, 82-86 F, 82-86 LP

88 series :

• 55-88, 60-88, 65-88, 70-88, 80-88

Series 90 :

• 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 100-90, 110-90, 115-90, 130-90, 140-90

Series 93 :

• 60-93, 65-93, 72-93, 82-93, 88-93

Series 94 :

• 60-94, 65-94, 72-94, 82-94, 88-94

TK series :

• 55-65 F, 55-65 M, 55-65 V, 55-75 F, 55-75 M, 55-75 V, 55-85 F, 55-85 M, 55-85 V, 60-65, 60-65 M, 60-65 V, 60-75, 60-75 M, 60-75 V, 60-85 F, 60-85 V, 62-85, 62-85 M, 70-65, 70-65 M, 70-75, 70-75 M, 72-85, 72-85 M, 80-65, 80-75, 82-85, 95-55, 100-55

Case IH :

94 series:

• 1394, 1494, 1594, 1694

AVJ series :

• AVJ 55, AVJ 60, AVJ 70

Farmall series :

• Farmall 65A Tier 3 (11/12-), Farmall 75A Tier 3 (11/12-)

Farmall JX series :

• Farmall JX 70 Tier 3a (11/12-), Farmall JX 75 Tier 3a (11/12-), Farmall JX 80 Tier 3a (11/12-), Farmall JX 90 Tier 3a (11/12-), Farmall JX 100 Tier 3a (11/12-)

JX series :

• JX 55, JX 65

VJ series :

• VJ 60, VJ 70, VJ 80

Ford :

Series 10 :

• 3010, 5010

30 series :

• 3830, 4030, 4230, 4430

Series 35 :

• 3435, 3935, 4135

Lamborghini :

1000 Series:

• 1356

R 700 series :

• R 754

Hurlimann :

H 480 → H 5110 series:

• H-490

Advantages of the Hydraulic Single Stage Gear Pump

1. Reliable performance: Designed to deliver constant hydraulic pressure, this pump ensures the smooth operation of your tractor's hydraulic systems, even under the most demanding conditions.
2. Easy Installation: Thanks to its standardized fittings and cone-shaped drive shaft, this pump is easy to install and compatible with many tractor models.
3. Low maintenance costs: Unlike more complex systems, this single-barrel gear pump offers increased robustness and durability with minimal maintenance, reducing long-term operating costs.
4. Versatility: Compatible with a wide range of models Fiat, Ford, Case IH, Lamborghini and Hurlimann, it is a versatile solution for multi-brand farming operations.

Why choose Camagris for your hydraulic pump?

At Camagris, we offer high-quality parts to keep your tractors running smoothly. Our single-body gear hydraulic pump part no. 5129483 is selected for its reliability and suitability for a wide range of models, offering optimum performance and exceptional durability.

• Expertise and reliability: Our products are rigorously selected to meet the requirements of professional farmers.
• Wide Selection: Whether for hydraulic pumps, fittings or other parts, Camagris offers a complete range to meet your needs.
• Fast delivery: Take advantage of our fast delivery service in Europe to minimize interruptions to your farming operations.

Explore our range of hydraulic pumps and other spare parts on the Camagris website and find the ideal solution to keep your farm equipment in perfect working order. Trust Camagris, your expert partner in agricultural parts for long-lasting, reliable performance.

NEW HOLLAND

Tractor

Serie: TDD

TD70D, TD80D, TD90D, TD95D,

Serie: TK

TK65F, TK65V, TK75F, TK75M, TK75V, TK76, TK76M, TK85, TK85M, TK95M,

Serie: TKA

TK100A, TK70FA, TK70VA, TK75FA, TK75MA, TK75VA, TK80A, TK80MA, TK90A, TK90MA,
