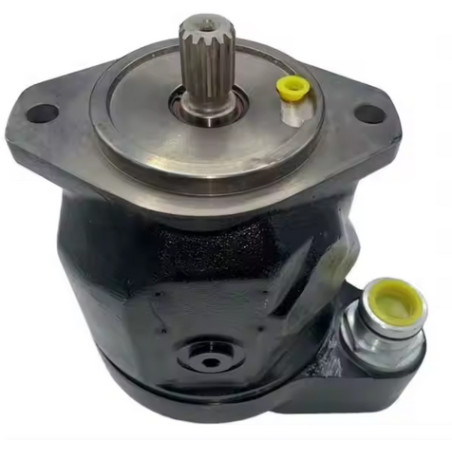

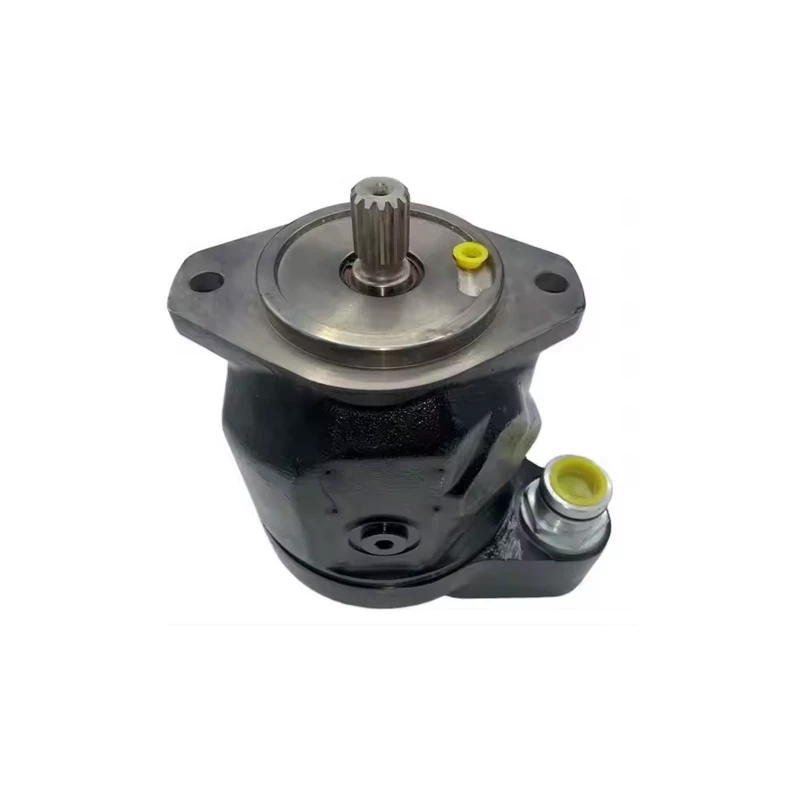

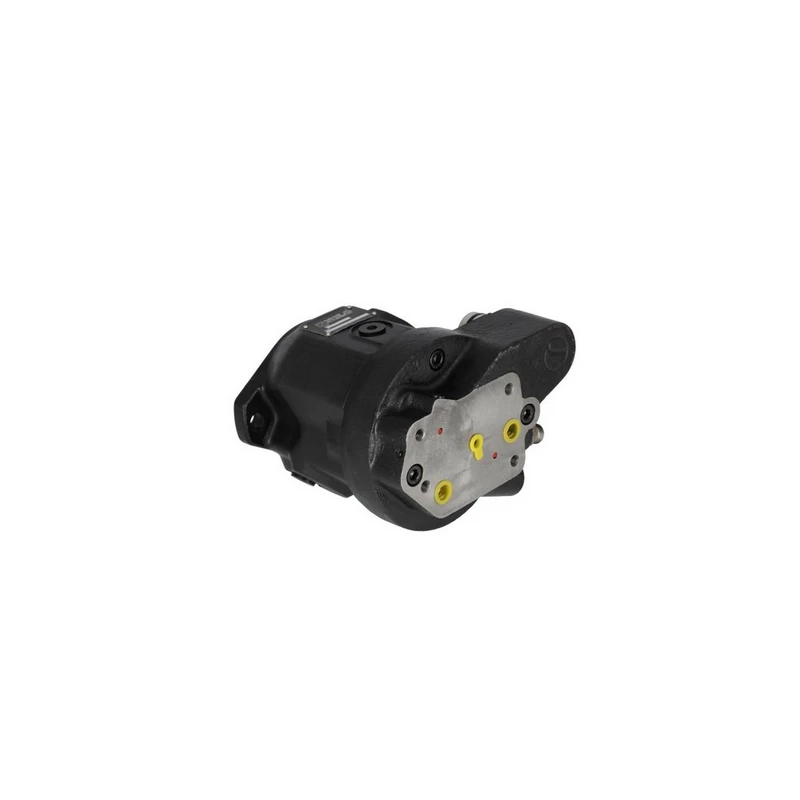

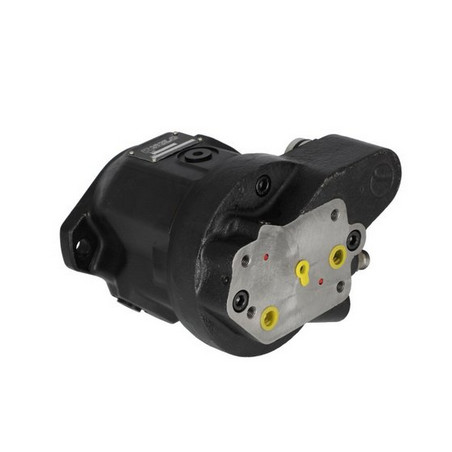

HYDRAULIC PUMP

Pistonhydraulic pump for CASE IH, MAXXUM 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250

Role of a Piston Hydraulic Pump

A hydraulic piston pump is an essential component in the hydraulic system of farm tractors, particularly the CASE IH Maxxum models you mentioned. It is responsible for converting the mechanical energy supplied by the tractor’s engine into hydraulic energy. This energy is then used to power various pieces of equipment, such as cylinders, power steering systems, or attached implements.

How a Piston Hydraulic Pump Works

1. Structure: It consists of pistons arranged radially or axially within a cylinder. These pistons are driven by a cam or an inclined plate.
2. Suction and Discharge: As they rotate, the pistons move within their cylinders, creating a vacuum to draw in hydraulic fluid and then compressing it to discharge it at high pressure.
3. High Pressure: Piston pumps are designed to generate high hydraulic pressures, making them ideal for tractors and agricultural equipment requiring significant force.

Advantages of a hydraulic piston pump

• High efficiency: Suitable for systems requiring high power.
• Adjustable pressure and flow: Suited to the varying requirements of agricultural equipment.
• Durability: Robust enough to withstand heavy loads and intensive use.

Compatibility with CASE IH, and Maxxum models

This hydraulic pump is specifically designed for the following models:

• Maxxum 51 Series: 5120, 5130, 5140, 5150
• Maxxum 52 Series: 5220, 5230, 5240, 5250

These models use the hydraulic pump to:

• Raise and lower attached implements via the lift arms.
• Operating tipper trailers.
• Powering implements that require a hydraulic connection, such as balers or front-end loaders.
• Provide effective power steering, even when other hydraulic functions are in use.

Maintenance and Precautions

1. Hydraulic oil quality: Use oil recommended by the manufacturer to prevent premature wear.
2. Filtration: Check and replace filters regularly to prevent particles from damaging pistons and seals.
3. Leak Monitoring: A leak can cause a drop in pressure and inefficient operation.
4. Regular inspection: Check the overall condition of the pump and hydraulic fittings.

When equipped with a compatible and well-maintained hydraulic pump, the CASE IH, and Maxxum models will deliver reliable and powerful performance, ensuring optimal productivity in the field.
