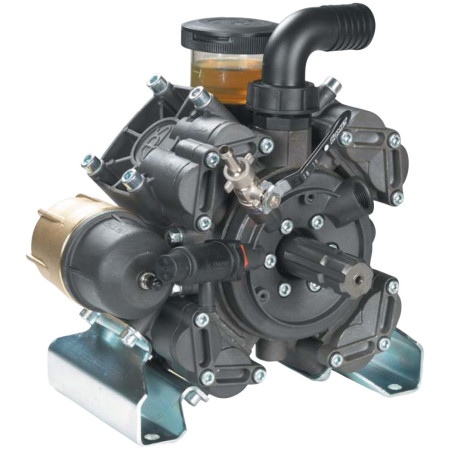

APS96 HIGH-PRESSURE DIAPHRAGM PUMP, 88 L/MIN

The APS96 high-pressure diaphragm pump is designed for spray systems that require a steady flow rate and a pressure build-up suited to the system’s operation. This version features a 4-diaphragm configuration, a 1 3/8" - 6 through-shaft, and a foot-mounted design. It is rated for a flow rate of 88 l/min at 540 rpm and a pressure of 50 bar.

A pump designed to supply the spray system

In a sprayer, a diaphragm pump supplies pressurized liquid to the system. This type of pump is used when the system must deliver a flow rate compatible with the spray boom and maintain an operating pressure suitable for the existing equipment.

For this model, the key specifications are clear: 88 l/min at 540 rpm and 50 bar. These specifications are used to compare the pump with your existing setup, particularly if you are replacing a worn-out pump or need to find an equivalent configuration.

Specifications to check on this APS96

This pump features several identification marks that are useful for avoiding errors when placing an order:

• Model: APS96 / APS.96 m/f
• Type: high-pressure pump
• Configuration: 4 diaphragms
• Shaft: 1"3/8 - 6 through-shaft
• Mounting: with feet
• Flow rate: 88 l/min at 540 rpm
• Pressure: 50 bar

The through-shaft is an important consideration, as it determines the drive connection to the machine. The mounting with feet should also be compared with your current pump to ensure consistent installation on the chassis or designated mounting bracket.

Choosing the Right Replacement Pump

To select the right diaphragm pump, start by noting the model number on your old part if it is still legible. Next, check the visible and measurable features that actually distinguish this model: the number of diaphragms, the shaft type, the presence of mounting feet, and the flow and pressure specifications.

If your system operates at 540 rpm, this information is particularly useful for comparing the circuit’s requirements with the 88 L/min rating. The 50 bar pressure must also match the range required for your sprayer. There is one caveat: in the absence of a list of explicitly compatible machines, compatibility must be verified based on your existing pump and its specifications.

Useful Identification Details Before Ordering

The part number CPCR14436 and the designation APS96 allow you to identify this pump version unambiguously. The designation APS.96 m/f may also appear, depending on naming conventions. These identifiers should be compared with the physical details of your setup, as it is the combination of the shaft, mounting, and hydraulic specifications that ensures a safe replacement.

If you are looking for a high-pressure diaphragm pump for a sprayer, take the time to compare these points with your current part so you can order the part number that is compatible with your system.

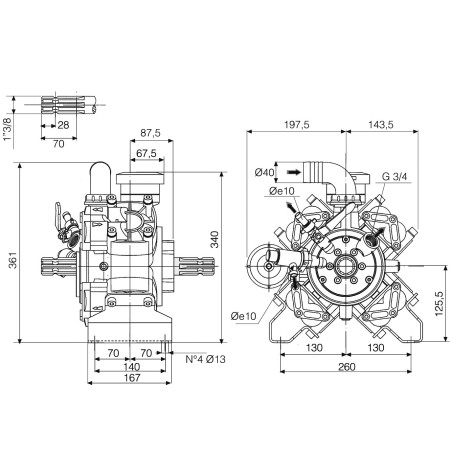

Dimensions and Technical Specifications

• 96 m

FAQ — Frequently Asked Questions

What is the purpose of a high-pressure diaphragm pump on a sprayer?

A high-pressure diaphragm pump is used to supply pressurized liquid to the sprayer system. For this model, key specifications include a flow rate of 88 l/min at 540 rpm, a pressure of 50 bar, and a 4-diaphragm configuration—compare these with your current pump.

How can you identify this APS96 pump before replacement?

You can identify it by several specific features: the designation APS96 or APS.96 m/f, the presence of 4 diaphragms, a 1"3/8 - 6 through-shaft, and a foot-mounted design. The specified flow rate of 88 l/min at 540 rpm also helps confirm that it is the correct model.

Is this pump suitable for a 540 rpm drive?

Yes, this pump is rated for a flow rate of 88 l/min at 540 rpm. This allows you to compare it to a system operating at that speed, provided you also verify the 1"3/8 - 6 through-shaft, the foot-mounted configuration, and the expected pressure level on your sprayer.

What does the designation APS96 or APS.96 m/f mean?

This designation is primarily used to identify the correct pump family and avoid confusion with other versions. To ensure you make the right choice, don’t rely solely on the name: also verify the 4-diaphragm configuration, the 1"3/8 - 6 through-shaft, and the specified flow rate and pressure.

Original spare part numbers and brand names are provided solely for comparison purposes. This does not imply that these are original parts.
