WATERTIGHT RING

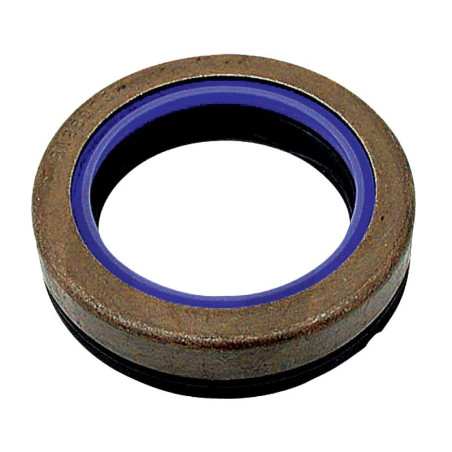

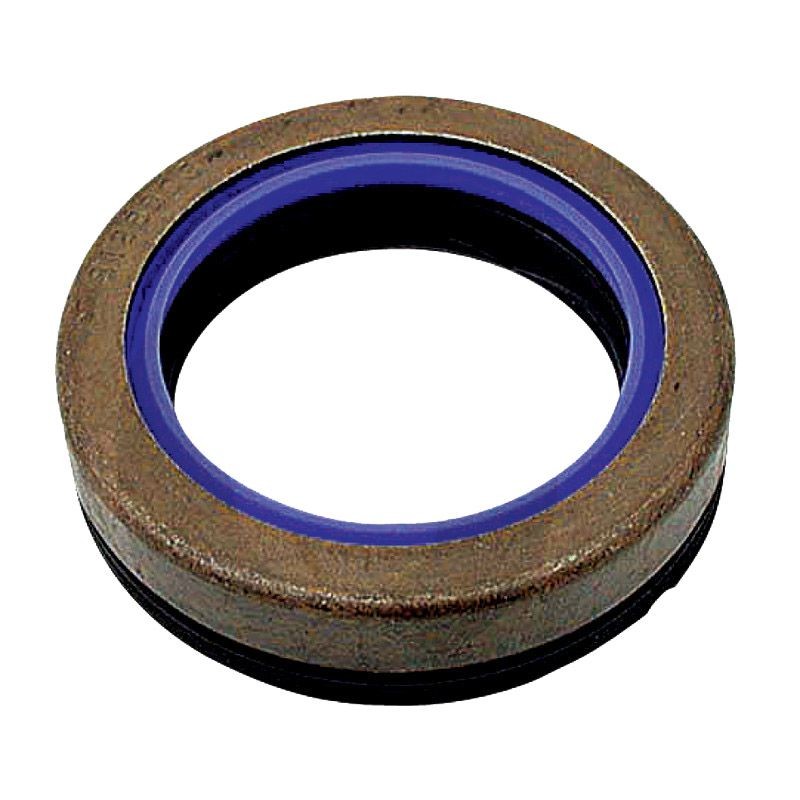

Front axle sealing ring 46x65x15 mm - Multi-brand agricultural tractors

The 46x65x15 mm front axle sealing ring is an essential part in protecting the bearings and internal components of the front axle from infiltration by water, dust, mud or oil. It plays a vital role in the durability of the front drive system, which is particularly exposed to intensive agricultural use.

This OE-equivalent ring is compatible with a wide range of agricultural tractors from Ford New Holland, John Deere, Case IH, Fendt, Deutz, Valtra and Valmet, making it a universal product widely used in European farming.

Technical dimensions :

• Inside diameter: 46 mm

• Outside diameter: 65 mm

• Thickness: 15 mm

• Type: lip ring, front axle oil seal

• Mounting: hub side or differential housing, depending on model

Compatibility by brand and series :

• 5110, 5610, 6410, 6610, 6710, 6810, 7610, 7710, 7810, 7910, 8210

• TW5, TW15, TW25

• 2750, 2850, 2950, 3050, 3150, 3350, 3650

• 2140, 3040, 3140, 3640, 3640S

• 2955, 3155

• 743, 743 S, 743 XL, 844, 844 S, 844 XL, 856, 956, 1056 (and XL versions)

• 385, 485, 585, 685, 785, 885, 985, 745, 845, 695, 795, 895, 995 (including XL versions)

• 268

• F365 GT, F380 GT

• Farmer 303 to 308

• DX6.10, DX6.30, DX6.50

• 205, 305, 355, 405, 415, 455, 555

Why change this bushing?

The front axle sealing ring is subject to heavy stress (dust, humidity, variable temperatures). Wear can cause:

• Oil leaks into the hub or axle housing

• Bearing contamination

• Premature wear of gears or constant velocity joints

• Costly mechanical interventions if not replaced in time

Preventive replacement or bearing replacement is strongly recommended.

Camagris: specialist in parts for agricultural front axles

At Camagris, we offer you a professional-quality ring adapted to intensive use on the farm. All our parts are available from stock at our premises in Gaillac, France, with rapid delivery throughout Europe.

✅ Multi-brand compatible product
✅ Quality equivalent to the original
✅ Precise referencing by dimensions
✅ Stock France - Fast delivery
✅ Technical assistance if required

To sum up:

• Front axle sealing ring 46x65x15 mm

• Compatible with John Deere, Ford New Holland, Case IH, Fendt, Deutz, Valtra, Valmet

• ⚙Protects against seepage - Extends front axle life

• Available from tractor parts specialist Camagris
