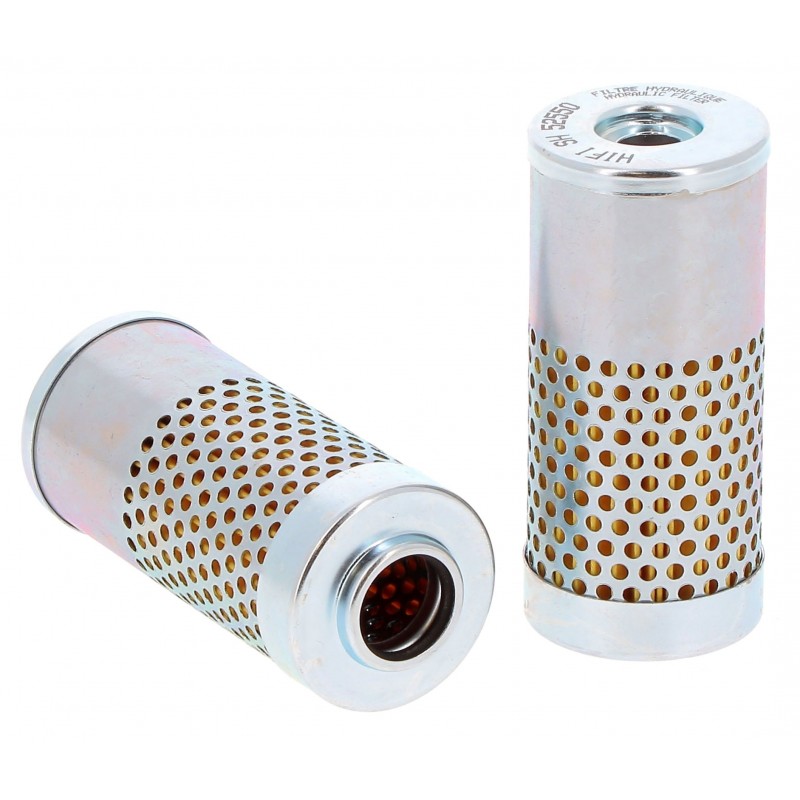

HYDRAULIC FILTER FOR DEUTZ-FAHR BF6L913C - HYD52550

Replacement hydraulic filter for Deutz-Fahr hydraulic systems

The HYD52550 hydraulic filter is designed to provide effective filtration of hydraulic oil in many Deutz-Fahr machines equipped with the Deutz BF6L913C engine. It protects hydraulic components from metal particles, wear debris, and contaminants that could damage sensitive parts of the system.

Thanks to its high-efficiency filter media and integrated bypass valve, this filter helps maintain optimal oil flow while protecting the hydraulic pump, spool valves, cylinders, and control components.

This compatible part offers a reliable and cost-effective solution for the regular maintenance of your agricultural equipment.

Technical Specifications

• Product Part Number: HYD52550
• Type: Hydraulic filter
• Compatible brand: Deutz-Fahr
• Engine brand: Deutz
• Engine Type: BF6L913C
• Outer diameter: 45 mm
• Height: 102 mm
• Number of bypass valves: 1
• Origin: High-quality aftermarket part

Equivalent part numbers

The HYD52550 filter replaces the following part numbers, among others:

• P17-5102
• 0029839004
• HY10059
• 144073
• R93C25CV
• WGH1050

Function of the Hydraulic Filter

The hydraulic filter performs several essential functions:

• filtering particles from the oil;
• protecting the hydraulic pump;
• protecting the valves;
• preserving the hydraulic cylinders;
• maintaining system pressure;
• extending the service life of components.

Clean hydraulic oil ensures the proper functioning of the entire system.

Importance of the bypass valve

The built-in bypass valve allows:

• maintain sufficient oil flow in the event of filter clogging;
• preventing overpressure in the circuit;
• protect the hydraulic pump;
• ensure safe system operation.

This design improves the overall reliability of the hydraulic system.

Symptoms of a Clogged Hydraulic Filter

A clogged filter can cause:

• slow lifting;
• irregular cylinder movement;
• a loss of hydraulic pressure;
• pump noise;
• abnormal oil overheating;
• premature wear of hydraulic components.

Replacing the filter periodically helps prevent these malfunctions.

Benefits of the HYD52550 filter

• High-efficiency filtration
• Optimal protection of the hydraulic system
• Integrated bypass valve
• Reduced risk of wear
• Quick installation
• Excellent value for money

Maintenance Tips

To maintain your hydraulic system:

• Replace the filter at the recommended intervals;
• check the oil level regularly;
• use hydraulic oil that meets the manufacturer’s recommendations;
• check the condition of the hoses and fittings;
• Perform oil changes according to the maintenance schedule.
