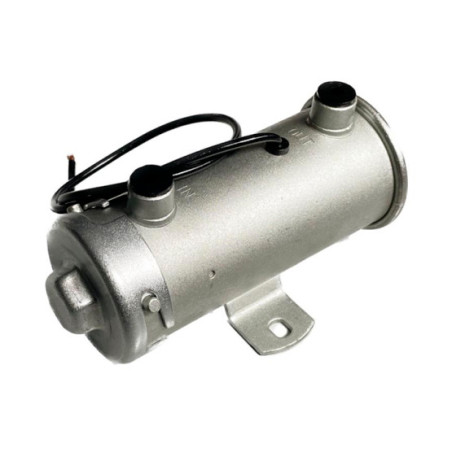

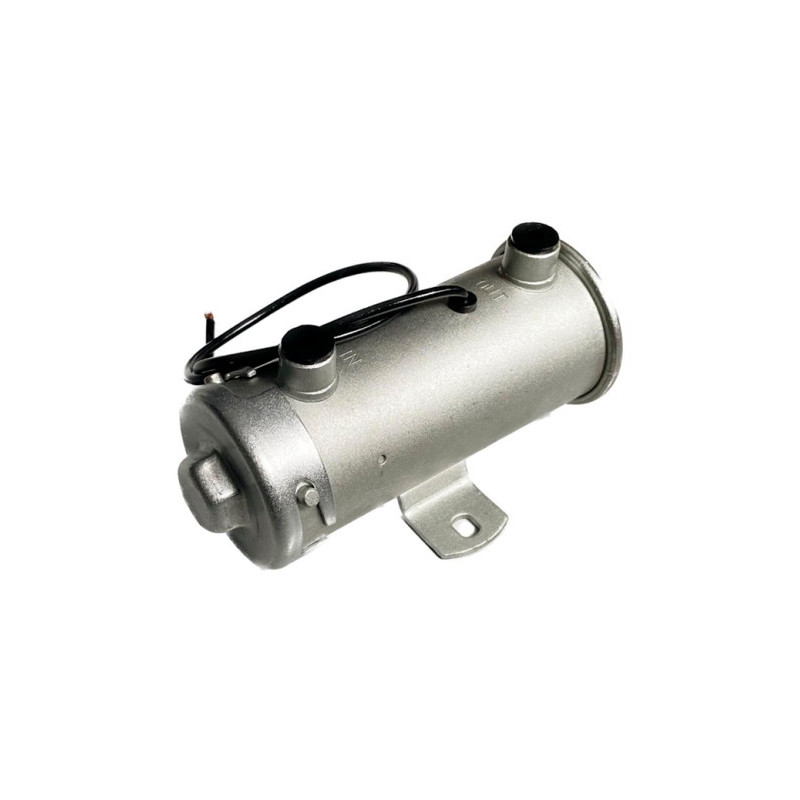

ELECTRICAL FEED PUMP

Electric Diesel Fuel Pump for Tractors Fiat, Ford and John Deere Combines - John Deere Part Numbers AZ27951, Fiat, Ford and New Holland 82006984

Theelectric diesel pump is an essential component for ensuring a continuous and efficient fuel supply to tractorsFiat, Ford, and combine harvestersJohn Deere. Designed to ensure optimal flow and constant pressure, this pump is self-priming and equipped with a built-in, replaceable filter to protect the motor from contaminants. It is compatible with many tractor and harvester models, making it an ideal choice for farmers looking to keep their machinery in top working condition.

Technical Specifications of the Electric Diesel Fuel Pump

• Equivalent John Deere Part Number :AZ27951
• Reference Fiat, Ford and New Holland :82006984
• Flow rate : 170 l/h
• Maximum pressure : 0.5 bar
• Suction Height : 0.6 m (self-priming)
• Fittings : Thread1/8" NPT (conical)
• Center-to-center distance : 64 mm
• Bore : 7 mm
• Height : 139 mm
• Voltage : 12 V
• Replaceable built-in filter with a mesh of400 µ

This pump is equipped with a built-in filter with a fine mesh of400 µ, capable of trapping unwanted particles in the fuel. It thus ensures a clean fuel supply, extending the service life of the fuel injectors and the engine while ensuring uninterrupted operation. The filter isreplaceable, which makes it easier to maintain the pump and helps it maintain its performance over time.

Compatibility with Tractors Fiat

The electric diesel fuel pump is compatible with several tractor modelsFiat from the seriesM, rugged and reliable machines widely used in intensive agricultural work. Here are the compatible models:

• M100
• M115
• M135
• M160

These tractorsFiat are used for a variety of agricultural tasks, such as plowing, transporting, and harvesting. The diesel fuel pump ensures a continuous supply of fuel, which is essential for maximizing engine performance under demanding working conditions.

Compatibility with Ford Tractors

The pump can also be mounted on several tractor modelsFord TV series81, 82, and83, which are popular for agricultural and forestry work. Here are the compatible models:

• Ford 8160
• Ford 8260
• Ford 8360
• Ford 8560

TractorsFord are known for their durability and reliability. The electric diesel fuel pump ensures a constant flow of fuel, allowing these engines to operate efficiently, even under heavy loads.

Compatibility with John Deere Combine Harvesters

This diesel fuel pump is also compatible with a range ofJohn Deere combine harvesters TV series900and1000, designed for large harvests. Here are the compatible models:

900 Series

• John Deere 925
• John Deere 932
• John Deere 935
• John Deere 942
• John Deere 945
• John Deere 952
• John Deere 955
• John Deere 965
• John Deere 968
• John Deere 975
• John Deere 985

1000 Series

• John Deere 1032
• John Deere 1042
• John Deere 1052
• John Deere 1055
• John Deere 1065
• John Deere 1068H
• John Deere 1072
• John Deere 1075

These combine harvestersJohn Deere are widely used for harvesting large areas of grain. The diesel pump ensures a reliable fuel supply, even during long harvest days, by maintaining constant pressure and a high flow rate.

Role of the Electric Diesel Fuel Pump

Theelectric diesel pump is responsible for transferring fuel from the tank to the engine while maintaining constant pressure and flow rate. It is self-priming, which means it can begin drawing fuel even when the tank is nearly empty, thus ensuring a continuous fuel supply, even during prolonged operation.

Key Features :

1. Provide a constant flow of fuel : The pump delivers a flow rate of170 liters per hour, enough to power the engines of tractors and combine harvesters under heavy-duty operating conditions.

2. Maintaining Fuel Pressure : With a maximum pressure of0.5 bar, it ensures a stable power supply, preventing power fluctuations that could affect the motor's performance.

3. Integrated filtration : Thebuilt-in filter with a mesh size of400 µ prevents fine particles from entering the fuel injection system, thereby protecting the engine from damage and extending its service life.

4. Self-priming : Its ability to draw fuel from a height of0.6 m ensures a steady fuel supply even under difficult conditions, such as when the tanks are low or partially empty.

Why Replace the Electric Fuel Pump ?

A faulty fuel pump can cause problems with engine starting and operation, as well as reduced performance. Here are some signs that it may be time to replace the fuel pump:

1. Slow Starts : If the engine takes longer to start or stalls frequently, this may indicate a malfunction in the fuel pump.

2. Power Losses : If the engine lacks power or runs unevenly, the pump may not be delivering enough fuel.

3. Leaks or filter malfunctions : If you notice fuel leaks or signs that the built-in filter is clogged, you may need to replace the pump or its filter.

Installation and Maintenance

Installation

The PumpAZ27951 / 82006984 is designed for quick and easy installation, with a64 mm mounting center-to-center distanceand some1/8" NPT tapered fittings. Its compact design makes it easy to mount on compatible tractors and combine harvesters, ensuring a reliable fuel supply.

Interview

It is recommended that you regularly check the condition of thebuilt-in filter and replace it if necessary to ensure a clean fuel supply. Regular maintenance of the pump and its filtration system helps extend the engine's service life and prevent breakdowns.

Conclusion

Theelectric diesel pump for tractorsFiat, Ford, and combine harvestersJohn Deere is an essential component for maintaining a reliable and continuous fuel supply, which is critical to engine performance. Compatible with a wide range of models, this pump delivers a flow rate of170 l/h and a pressure of0.5 bar, with abuilt-in filter to protect the engine from contaminants.

AtCamagris, we offer this pump with aFast shipping in Europe, so that you can keep your machinery in top working order and ensure optimal performance during your farming operations.
