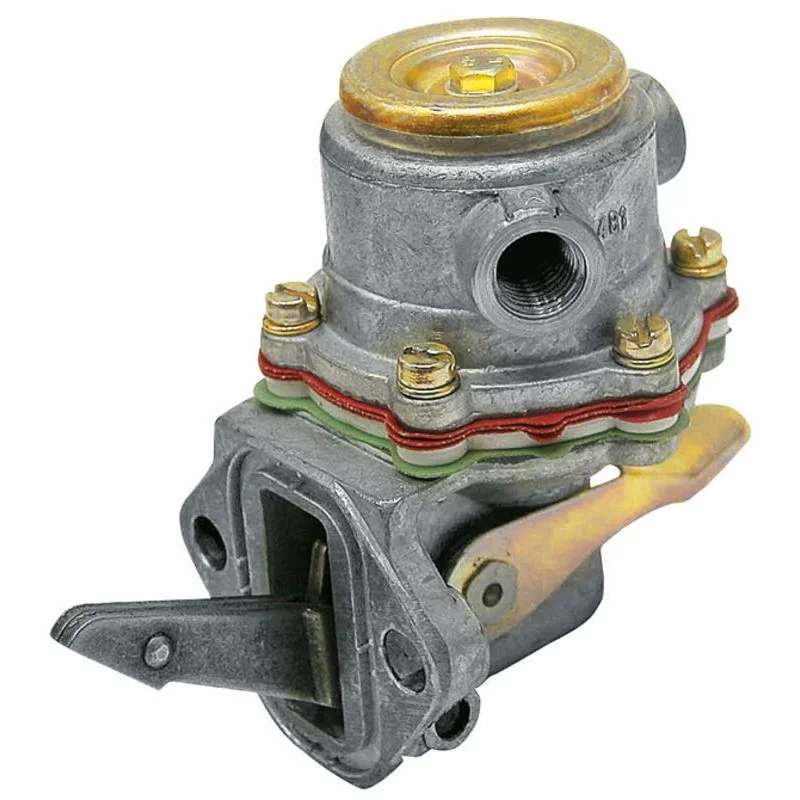

2 HOLES FEED PUMP

Diaphragm Fuel Pump for Tractors Fiat, , Case IH, New Holland, and Ford - Part Number 4757883

Thediesel fuel diaphragm pump, reference4757883, is a crucial component for the proper operation of the diesel engines found in several tractor modelsFiat, Case IH, New Holland, andFord. It ensures a steady flow of fuel to the engine, thereby guaranteeing optimal performance during agricultural work. This pump is compatible with enginesFiat/Iveco and can be mounted on a wide range of tractors and farm machinery.

Technical Specifications of the Diesel Fuel Pump

• Equivalent references :
  • 504090935
  • 4609596
  • 4667509
  • 4709282
  • 4740717
  • 4756678

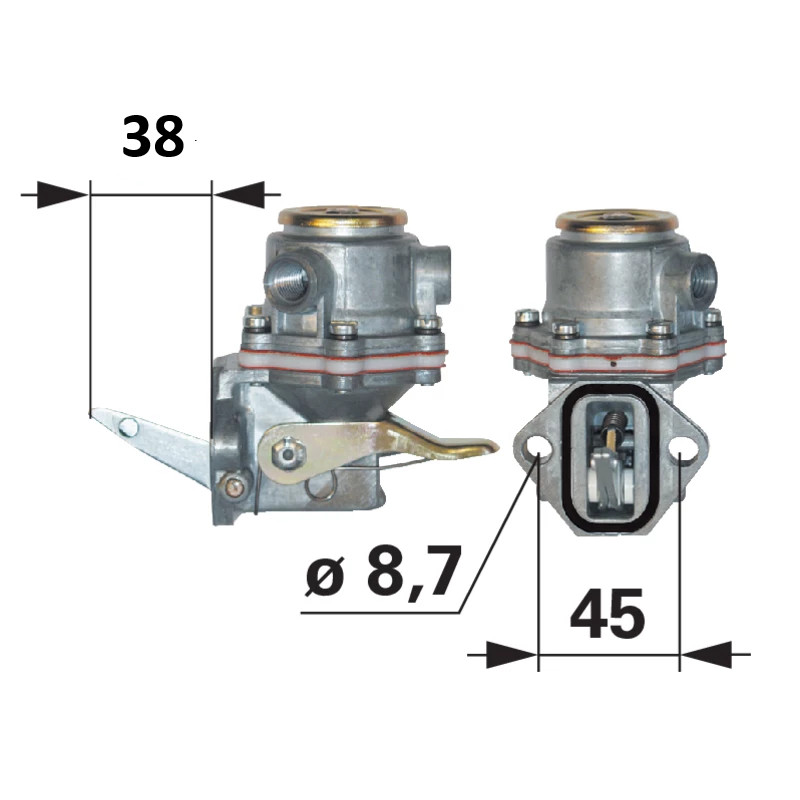

• Fastening : 2 holes
• Center-to-center distance : 45 mm
• Lever length : 38 mm

This pump is designed for easy installation with a2-hole mounting and a45 mm center-to-center distance, ensuring perfect compatibility with the enginesFiat/Iveco and other fuel systems. The38 mm lever enables effective activation of the diaphragm, ensuring a constant flow of diesel fuel to the engine.

Compatibility with Engines Fiat/Iveco

This feed pump is compatible with motorsFiat/Iveco the following, which are found on many farm tractors:

• Fiat/Iveco 8025.01
• Fiat/Iveco 8025.02
• Fiat/Iveco 8035.01
• Fiat/Iveco 8035.02
• Fiat/Iveco 8035.04
• Fiat/Iveco 8035.05
• Fiat/Iveco 8035.06
• Fiat/Iveco 8045.01
• Fiat/Iveco 8045.02
• Fiat/Iveco 8045.04
• Fiat/Iveco 8045.05
• Fiat/Iveco 8045.06
• Fiat/Iveco 8045.25

These engines are widely used in agricultural applications and are known for their durability and reliability. The fuel pump ensures a steady supply of fuel, allowing the engines to operate at peak performance, even under heavy loads.

Tractor Compatibility Fiat

The fuel pump is compatible with many models from this brandFiat, covering several popular series in the agricultural sector. Here are the main compatible models:

Series 46

• 55-46, 60-46, 65-46

Series 56

• 55–56, 60-56, 70-56

Series 66

• 45–66, 45–66 S, 50–66, 50–66 S, 55–66, 56–66 S, 60–66, 60–66 F, 60-66 S, 65–66, 65–66 S, 70–66, 70-66 F, 70-66 LP, 70-66 S, 80-66, 80-66 F, 80-66 S

Series 76

• 45–76 V, 55–76 F, 55–76 V, 60–76 F, 70–76 F, 70–76 LP, 70–76 V, 80-76 F

80 Series

• 580, 680, 780, 880, 980, 1180

Series 86

• 50–86 S V, 50–86 V, 55–86 F, 55–86 S V, 55–86 V, 60–86 F, 60–86 S V, 60–86 V, 62–86 F, 70–86 S V, 70–86 V, 72–86 F, 72–86 LP, 82–86 F, 82–86 LP

Series 88

• 55–88, 60–88, 65–88, 70–88, 80–88

90 Series

• 55–90, 60–90, 65–90, 70–90, 80–90, 85–90

Series 93

• 60–93, 65–93, 72–93, 82–93, 88–93

Series 94

• 60–94, 65–94, 72–94, 82–94, 88–94

Series 355 through 955

• 355, 555

L Series

• L 60, L 65, L 75, L 85, L 95

Nastro D'Oro Series

• 350, 400, 450, 480, 500, 540, 550, 600, 640

TK Series

• 55–65 F, 55–65 M, 55–65 V, 55–75 F, 55–75 M, 55–75 V, 55–85 F, 55–85 M, 55–85 V, 60–65, 60–65 M, 60–65 V, 60–75, 60–75 M, 60–75 V, 60–85 F, 60–85 V, 62–85, 62–85 M, 70–65, 70–65 M, 70–75, 70–75 M, 72–85, 72–85 M, 80-65, 80-75, 82–85, 85-55, 88–85, 95-55

Compatibility with Tractors Case IH

This pump is also compatible with several models ofCase IH, especially the seriesJX, JXN, JXU, andJXV :

JX Series

• JX 55, JX 65, JX 85

JXN Series

• JX 1095 N (12/04-)

JXU Series

• JX 70U, JX 80U, JX 90U, JX 100U

JXV Series

• JX 1095 V (12/04-)

TractorsCase IH are widely used in intensive agricultural work. This pump ensures a reliable fuel supply so that engines can operate efficiently, even under difficult working conditions.

Compatibility with Ford Tractors

This fuel pump can also be installed on several tractor modelsFord, including the series30 and35 :

30 Series

• 3830, 4030, 4230, 4430

Series 35

• 3435, 3935, 4135, 4635, 4835, 5635, 6635, 7635

TractorsFord are known for their reliability in agricultural work, and this pump ensures a constant fuel flow, which is essential for maintaining engine performance.

Compatibility with New Holland Tractors

Finally, the fuel pump is compatible with several models ofNew Holland, especially the seriesTD, TL, andTN :

TD Series

• TD55D (11/02-), TD65D (11/02-), TD75D (11/02-), TD85D (11/02-), TD95D (11/02-)

TL Series

• TL70, TL80, TL90, TL100

TN Series

• TN80, TN90, TN95

These tractorsNew Holland are equipped with a reliable fuel pump to ensure an uninterrupted fuel supply, thereby guaranteeing optimal performance during fieldwork.

Role of the Diesel Fuel Pump

Thediaphragm feed pump is essential for transferring fuel from the tank to the engine's fuel injection system. It maintains constant pressure and a steady flow of diesel fuel, ensuring optimal combustion and uninterrupted engine operation.

Key Features :

1. Maintaining a Constant Fuel Flow Rate : The pump ensures a continuous flow of fuel, which is essential for long working hours in agriculture.

2. Fuel Pressure Regulation : It regulates the pressure in the fuel system, ensuring smooth and efficient combustion.

3. Engine Performance Optimization : By ensuring a steady supply of power, the pump allows the engine to operate at full capacity while minimizing the risk of breakdowns.

Conclusion

Thediesel fuel diaphragm pump reference4757883 is an essential component for ensuring that engines operate properlyFiat/Iveco, and, by extension, tractorsFiat, Case IH, Ford, andNew Holland. It ensures a constant and reliable flow of fuel, which is essential for maintaining the performance of diesel engines used in intensive agricultural work.
