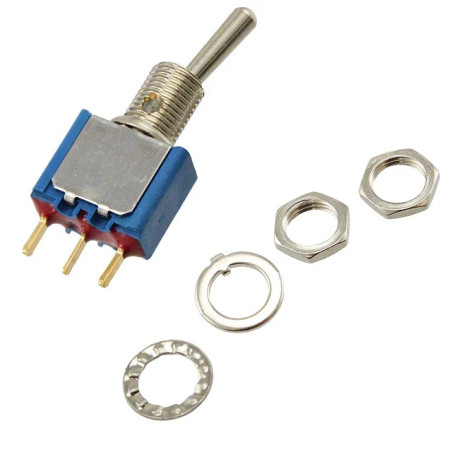

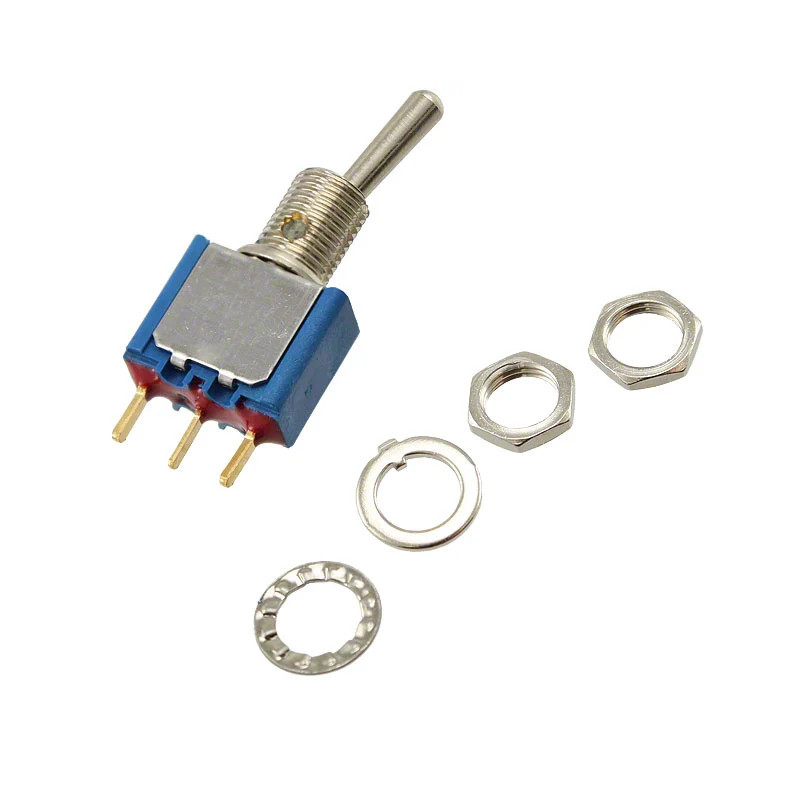

MINI ON-ON SWITCH

Mini ON-ON switch for agricultural and industrial equipment

Article code: CAM194430

The mini ON-ON switch is a compact, reliable electrical component ideally suited to electrical installations on tractors, agricultural machinery, construction machinery or industrial equipment. It manages an on/off function with two stable positions, each maintaining electrical contact until the lever is pressed again.

Thanks to its small size and robust design, this switch can be easily integrated into dashboards, control consoles or auxiliary boxes, even where space is limited. It is particularly appreciated for controlling secondary functions such as spool valves, lighting, auxiliary controls or additional systems.

Technical features of the CAM194430 mini ON-ON switch

This switch is designed to withstand the demanding conditions encountered in agricultural environments:

• Function: On / Off (ON-ON, locked positions)

• Number of contacts: 1

• Rated current: 4 A

• Operating temperature range : -40°C to +85°C

• Mounting hole diameter: 6.35 mm

• Panel opening :

  • Width: 13.2 mm

  • Height: 7 mm

• Panel thickness :

  • With 2 nuts: max. 2.5 mm

  • With 1 nut: max. 4 mm

• Nut tightening torque: 1.25 Nm

Useful technical information

• ON: locked position, contact remains established

• OFF: locked position without contact (not used here in ON-ON)

• MOM: automatic return (general information, not applicable to this ON-ON model)

The ON-ON system guarantees two stable positions, enabling precise, safe control of the functions being controlled.

Advantages for agricultural use

• Mini format ideal for modern cabs and compact control panels

• Excellent resistance to temperature variations

• Quick and easy installation

• Reliable operation even in dusty or vibrating environments

• Suitable for low-voltage circuits used on tractors and agricultural machinery

Typical applications

The CAM194430 mini ON-ON switch can be used on :

• All makes of farm tractors

• Combines

• Sprayers

• Telescopic handlers and loaders

• Wine-growing and arboricultural machinery

• Custom electrical installations or wiring harness renovations
