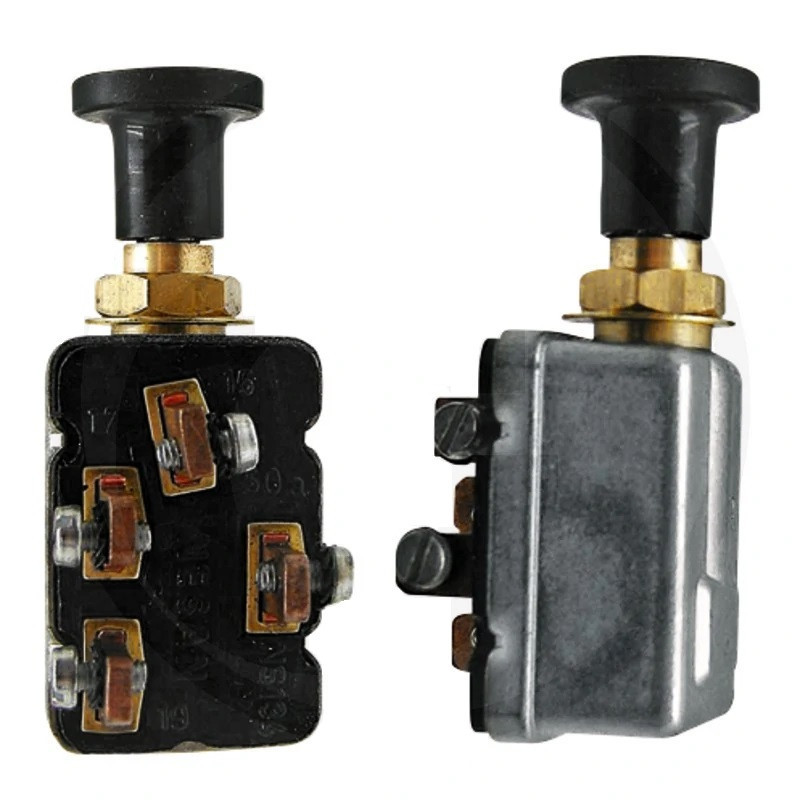

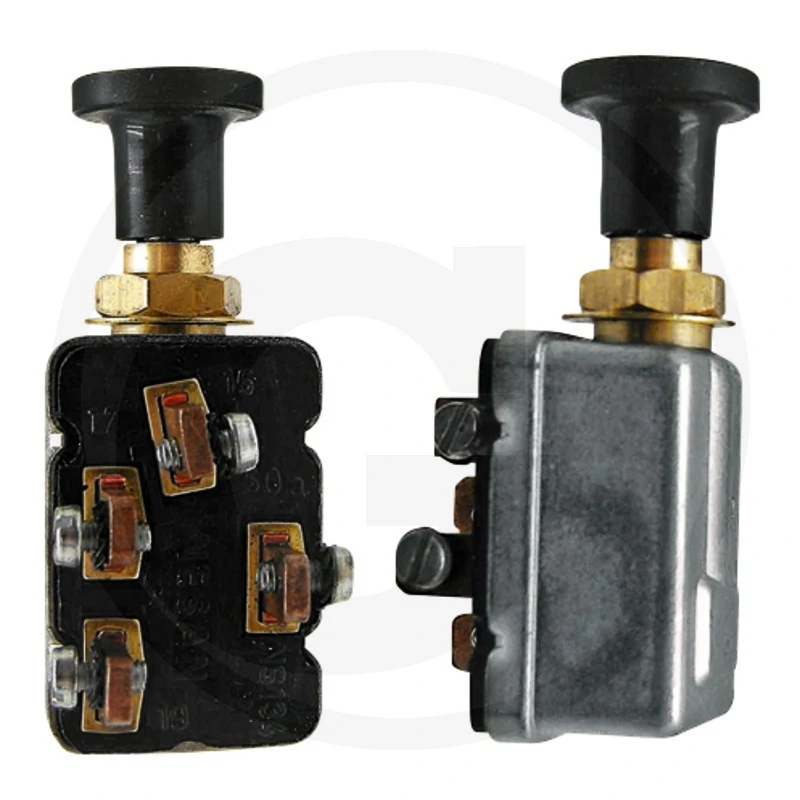

STARTING SWITCH WITH PREHEATING POSITION 3057998R93 FOR CASE IH
START SWITCH WITH PREHEATING POSITION
STARTING SWITCH WITH PREHEATING POSITION 3057998R93 FOR CASE IH
START SWITCH WITH PREHEATING POSITION

START SWITCH WITH PREHEATING POSITION

Ref.: AL23512

€16.90Tax excl.€20.28 Tax incl.-€2.00
€18.90 Tax excl.

In stock, Shipping within 24 hours

Origin reference:

3057998R93, AL23512, 01180133, 01163920

(pull tab)
galvanized steel housing
without button

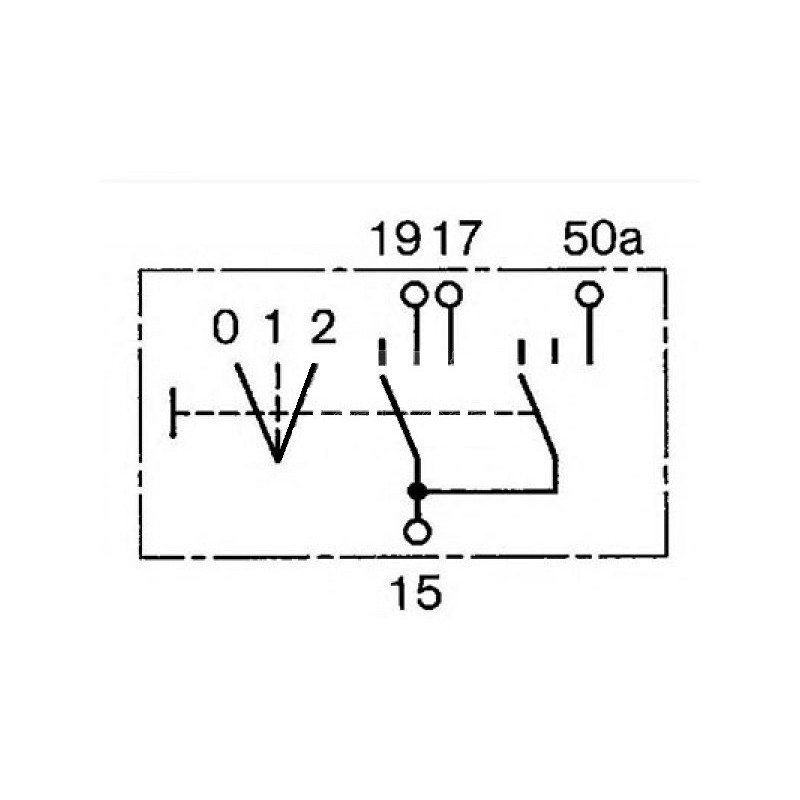

load capacity 50 A / 12 V (terminal 19), 27 A / 24 V (terminal 19), 12 A / 12 V (terminal 50a), 9 A / 24 V (terminal 50a)
fixing with hexagonal nut M10 x 1
Ø mounting hole 10.5 mm
for wall thickness up to 3 mm
positions: the button must be kept in position 1 (preheating) and 2 (start), automatically returns to position 0 (stop)
flat plug connection



The numbers of original spare parts and brands are provided exclusively for comparison purposes. This does not imply that they are original parts.
This product is compatible? Check compatibility
From (qty.) Unit price You Save
2 €13.90 Up to €10.00
  • Free quotation
  • French company

Product's description

Pull-start switch with pre-heating and starting function for agricultural tractors CASE IH, JOHN DEERE and DEUTZ

The pull-startswitch with pre-heating and starting function is an essential component for the smooth operation of your farm tractor's electrical and starting system. This robust switch is designed for optimum durability and reliable operation, even under demanding agricultural conditions.

Compatible models

This switch is compatible with several makes and series of tractors, including John Deere, Case IHC, and Deutz Fahr, covering a wide range of models.

John Deere

  • 20 Series
    1020, 1020 (Europe), 1120, 2020, 2020 (Europe), 2120 (Europe), 2120 (USA), 3120, 820, 820 (North America), 920.

  • 30 series
    1030, 1030 (Espana), 1030OU (Espana), 1030VU (Espana), 1130, 1630, 1630 (Espana), 1630OU (Espana), 1630VU (Espana), 2030, 2030 (Espana), 2030 (Europe), 2030OU (Espana), 2130, 2130 (Espana), 2130 (Europe), 3030, 3130, 3130 (Espana), 4230, 4430, 830 (Europe), 830 (North America), 930 (Europe), 930VU (Espana).

  • 35 Series
    1035 (Espana), 1035EF (Espana), 1035EV (Espana), 1635 (Espana), 1635EF (Espana), 1635EV (Espana), 2035 (Espana), 2035EF (Espana), 2135 (Espana), 3135 (Espana).

  • 40 series
    4040 (Europe), 4040 (North America), 4240 (Europe), 4240 (North America), 4440 (Europe), 4440 (North America), 4640, 4840, 8440.

Case IHC
  • Series 33: 433, 533, 633, 733, 833.
  • Series 43: 743.
  • Series 44: 644, 744, 844, 844 S.
  • Series 46: 946, 1046, 1246.
  • Series 45: 745, 845.
  • Classic series: 353, 423.
  • Series 23: 523.
  • Series 24: 624, 724, 824.
  • Series 53: 453.
  • Series 54: 554, 654.
  • Series 83: 383.
Deutz Fahr
  • D 05 series: 2505, 3005, 4005, 4505, 5005, 5505, 7505, 7505F, 7505U, 9005, 9005F, 9005U.
  • D 06 series: 10006, 10006F, 10006U, 13006, 16006, 2506, 3006, 3006F, 4006, 4006F/S, 4006U, 4506, 4506F, 4506US, 5006, 5006F, 5006U, 5206, 5206F, 5206U, 5506, 5506F, 5506U, 6006, 6006F, 6006U, 6206, 6206F, 6206U, 6806, 6806F, 6806U, 7006, 7006F, 7006U, 7206, 7206A, 7206F, 7206U, 7506, 7506F, 7506U, 8006, 8006F, 8006U, 9006, 9006A, 9006F, 9006U.

Technical data

  • Functions
    • Preheating mode for easy start-up in cold weather.
    • Start-up mode for fast, safe start-up.
  • Robust materials: Durable construction to withstand wear and harsh conditions.
  • Easy installation: Compatible with the original electrical connections of the models listed.

Benefits

  1. Extensive compatibility: Suitable for many popular brands and series.
  2. Reliable performance: Ensures rapid start-up and an efficient preheating function.
  3. Rugged: Designed for intensive use in demanding agricultural environments.

At Camagris, we offer this pull-start switch with fast delivery anywhere in Europe. Contact us for more information or to place your order now!

For more information, see data sheet in "product feature" section.

Product's features

Brand JOHN DEERE
Series Series 46, Series 43, 53 series, Series 45, Series 33, Series 24, Series 44, Series 54
Family Spare parts for farm tractors, Spare parts for tractors
Origin Adaptable part - Non Authentic
Tool carrier tractor Fendt
Model
F231GT
Model
F231GT Kommunal
Tractor Case
Model
1046
Model
1246
Model
323
Model
353
Model
383
Model
423
Model
433
Model
453
Model
523
Model
533
Model
553
Model
633
Model
644
Model
654
Model
724
Model
733
Model
743
Model
743XL
Model
744
Model
745
Model
745S
Model
745XL
Model
824
Model
833
Model
844
Model
844S
Model
844XL
Model
845
Model
845XL
Model
884
Model
933
Model
946
Model
D323
Tractor Deutz
Model
10006
Model
10006U
Model
13006
Model
16006
Model
2505
Model
2506
Model
3005
Model
3006
Model
4005
Model
4006
Model
4006F/S
Model
4006U
Model
4505
Model
4506
Model
4506US
Model
5005
Model
5006
Model
5006U
Model
5206
Model
5206U
Model
5505
Model
5506
Model
5506U
Model
6006
Model
6006U
