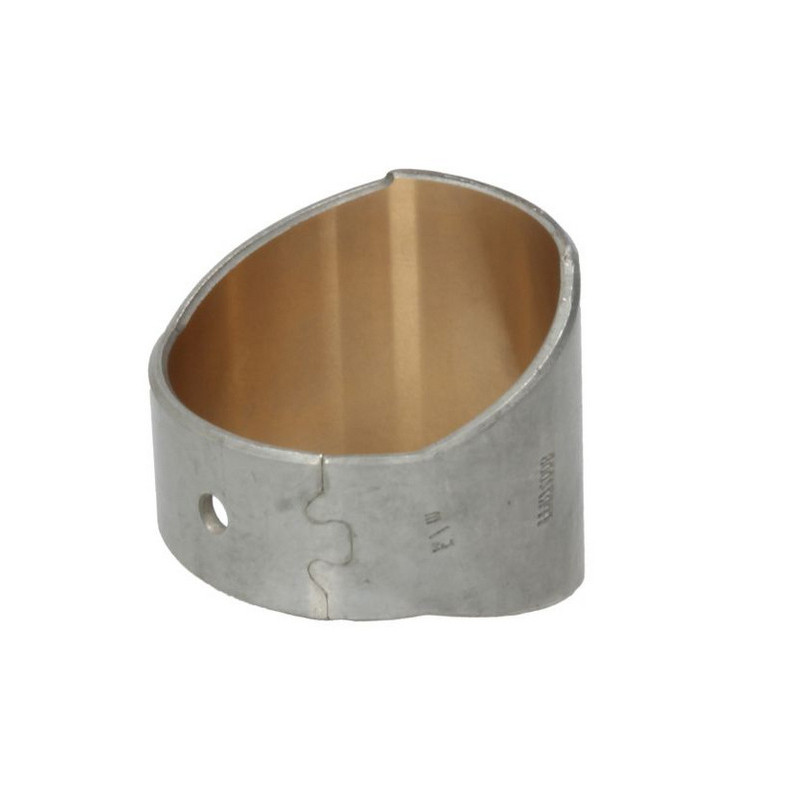

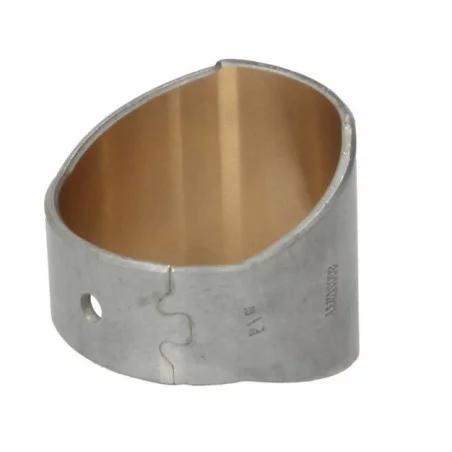

CONNECTING ROD BUSHING FOR JOHN DEERE R74008

The connecting rod bushing for John Deere R74008 is a fitting part designed for the connecting rod assembly on many of the brand’s agricultural applications. It can be installed on both tractors and certain combine harvesters. To identify it correctly, the first useful reference is its dimensions: 47.655 x 47.681 mm. Check that these match your model and any listed variants.

What is the purpose of a connecting rod bushing?

In a connecting rod assembly, this bushing is a wear part that helps guide the assembly and ensure proper fit. When replacing it, the goal is to find a part number that matches both the measured dimensions and the specific engine application. With this type of part, selecting the wrong variant can result in improper installation, even if the tractor belongs to the correct series.

The dimensional specifications and part number to verify

Part number R74008 identifies this bushing when searching for a compatible replacement part. However, the dimensions 47.655 x 47.681 mm remain the most immediate point of verification. This is particularly useful when multiple versions exist depending on the engine, the country of destination, or an ongoing series update. Be sure to check the complete model designation of your machine, including the designations USA, MEX, 6076H, 6081H, or 6081T when they appear.

Must-See John Deere Applications

In addition to the numerous series compatibilities detailed with the part, this bushing is also recommended for the following applications:

• 40 Series: 4240S (252663=>), 4440 (USA) (SB570601=>), 4640 (SB570601=>), 4840 (SB572027=>), 8440 (241469=> & SB572027; with R71074 connecting rods)
• 50 Series: 4050E, 4250, 4350, 4450, 4650, 4850, 8450 (241469=> & SB572027; With R71074 connecting rods)
• 8030 Series: 8130, 8230T, 8330, 8330T, 8430 (241469=> & SB572027; With connecting rods R71074), 8430T, 8530
• Combine harvesters: 1085, 1085H, 1177, 1188, 2058, 2064, 2066, 8820, CTS, CTSII

Some applications require specific details regarding R71074 connecting rods or a serial number range. This information is essential for selecting the correct part.

Useful Information Before Ordering

To select the correct bushing, first note the part number listed in your maintenance manual, then verify the exact dimensions and model designation of the machine. For models such as 7710, 7810, 8100, 8200, or 8300, compatibility depends on the engine version and sometimes on a change starting at a specific serial number. For the 4455, the distinction between MEX-6076T, MEX-6466T, and USA must also be observed.

If your John Deere matches one of the listed model numbers and the measured dimension is correct, this ring provides a clear starting point for finding the part number that fits your setup.

Dimensions and Technical Specifications

• 47.655 x 47.681 mm

Compatibility by Make and Series

JOHN DEERE · 5020 Series

• 5720

JOHN DEERE · 55 Series

• 4055
• 4255
• 4455 (MEX-6076T)
• 4455 (MEX-6466T)
• 4455 (USA)
• 4555
• 4755
• 4955

JOHN DEERE · 60 Series

• 4560
• 4760
• 4960

JOHN DEERE · 7000 Series

• 7700
• 7800

JOHN DEERE · 7010 Series

• 7710 (6081H) (090000=> )
• 7710 (6081T) (=>089999)
• 7810 (USA - 6081T) (=>089999 )
• 7810 (USA - 6081H) (090000 and up)

JOHN DEERE · 7020 Series

• 7820 (USA)
• 7920

JOHN DEERE · 8000 Series

• 8100 (6076H) (=>009999 )
• 8100 (6081H) (010000=> )
• 8100T
• 8200 (6076H) (=>009999)
• 8200 (6081H)
• 8200T
• 8300 (6076H) (=>009999 )
• 8300 (6081H)
• 8300T
• 8400
• 8400T

JOHN DEERE · 8010 Series

• 8110
• 8110T
• 8210
• 8210T
• 8310
• 8310T
• 8410
• 8410T

JOHN DEERE · 8020 Series

• 8120
• 8120T
• 8220
• 8220T
• 8320
• 8320T
• 8420
• 8420T
• 8520
• 8520T

JOHN DEERE · 8060-8070 Series

• 8560
• 8570

JOHN DEERE · 9000 Series

• 9100
• 9120
• Combine Harvester
• 1085
• 1085H
• 1177
• 1188
• 2058
• 2064
• 2066
• 8820

JOHN DEERE · CTS Series

• CTS
• CTSII
• R74008

FAQ — Frequently Asked Questions

What does the dimension 47.655 x 47.681 mm correspond to?

This dimension serves as a reference to identify the R74008 connecting rod bushing. It should be compared to your removed part and the specifications in your technical documentation, as this family of bushings is selected first by dimensions, then by application and machine variant.

Is this bushing compatible with John Deere Series 40 models such as the 4240S, 4440, 4640, 4840, and 8440?

Yes, this bushing is suitable for these models, subject to the specified model variations. The 4240S is listed starting with 252663, the 4440 (USA) and the 4640 starting with SB570601, the 4840 starting with SB572027, and the 8440 with a condition related to the R71074 connecting rods.

Why do some compatibility listings mention 6081H, 6081T, USA, or MEX?

These designations are used to distinguish between engine versions or market variants within the same John Deere model. They are important for selecting the correct bushing, for example on the 7710, 7810, 8100, 8200, or 8300, where compatibility also depends on the engine code or a serial number threshold.

Is part number R74008 also designed for John Deere combine harvesters?

Yes, this bushing is also suitable for several John Deere combine harvesters. The provided list includes the 1085, 1085H, 1177, 1188, 2058, 2064, 2066, 8820, as well as the CTS and CTSII models, which extends its application beyond tractors alone.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts
