310 MM CLUTCH KIT FOR NEW HOLLAND L AND TL MODELS

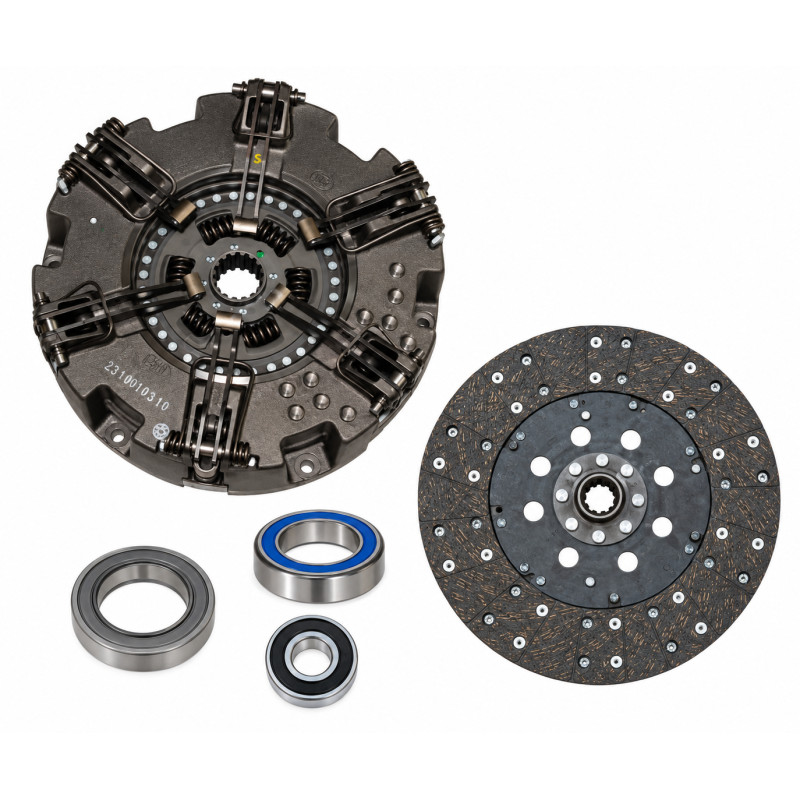

This complete clutch kit is designed for New Holland L and TL series tractors. It includes all the components needed for a clutch replacement: the clutch mechanism, a 310 mm drive plate, and the clutch release bearing. To select the correct part number, it is helpful to also check the disc dimensions, particularly the 16Z 40x45 specification listed for the drive disc.

A kit for clutch repair

On a tractor, the clutch connects and disconnects the engine from the transmission during startup, gear changes, and maneuvering. When replacement is necessary, a kit containing the main components allows you to restore the system as a cohesive unit rather than replacing a single, isolated part.

Here, the listed components include the mechanism, the drive plate, and the thrust plate. The thrust plate is essential for the mechanism’s operation, while the drive plate’s diameter is the primary criterion for identifying the correct assembly.

Dimensions to Compare Before Ordering

The diameter of the feed disc is specified as 310 mm. This value alone allows you to rule out many similar assemblies. To further narrow down the identification, the feed disc is specified as 16Z 40x45—useful information for matching this part number to the component removed from the tractor.

Another dimension is also listed: 10Z 22x25 for the PTO disc. This specification can help distinguish between two similar assemblies, especially if your tractor is equipped with a clutch configuration linked to the PTO. Compare these dimensions with the original assembly before confirming the replacement.

New Holland Models Affected

This part number is associated with New Holland L and TL series tractors. The models explicitly listed are the L75, L85, L95, TL70A, TL80, TL80A, TL90, and TL90A. This model information helps guide your search, but it does not replace verifying the clutch dimensions when multiple mounting configurations exist.

Within the same tractor family, a similar model designation alone does not guarantee that the clutch assembly is an exact match. Cross-referencing the exact model, disc diameter, and hub dimensions remains the most reliable way to confirm compatibility.

Useful guidelines for selecting this part number

Before ordering, check the diameter of the drive plate, the number of teeth indicated by 16Z, and the 40x45 dimensions of the specific assembly. If you are replacing the entire assembly, also verify that the removed mechanism and thrust bearing match your tractor’s configuration.

The 10Z 22x25 dimension related to the power take-off (PTO) serves as an additional reference when distinguishing between two very similar variants. If in doubt, rely on the markings and dimensions noted on the old clutch to confirm the correct part number before purchasing.

Dimensions and Technical Specifications

• 310 MM

Compatibility by brand and series

New Holland · L Series

• L75
• L85
• L95

New Holland · TL Series

• TL70A
• TL80
• TL80A
• TL90
• TL90A
• CONTAINS

FAQ — Frequently Asked Questions

What does this clutch kit for New Holland contain?

This kit includes the clutch mechanism, a 310 mm drive plate, and the thrust bearing. A PTO plate size of 10Z 22x25 is also listed in the available information, which serves as an additional identification reference before ordering.

What do the 16Z 40x45 specifications for the drive plate correspond to?

These dimensions are used to identify the correct clutch disc. The 16Z designation corresponds to the number of teeth on the hub, while 40x45 helps distinguish the mounting configuration. Always compare these values with the old disc to avoid installing it on the wrong shaft.

Is this kit suitable for the New Holland L75, L85, L95, TL70A, TL80, TL80A, TL90, and TL90A?

Yes, these models are among the applications explicitly listed for this part number. Since there may be mounting variations within the same series, also confirm the 310 mm diameter and the spline dimensions measured on your removed clutch.

Why is a 10Z 22x25 PTO dimension listed?

This dimension provides an additional check when a clutch assembly also includes a power take-off function. Above all, it helps distinguish between similar assemblies. Check this dimension on the removed part to confirm that the configuration matches your tractor.

Original replacement part numbers and brand names are provided for comparison purposes only. This does not imply that these are original parts.
