COMPLETE CLUTCH KIT FOR FENDT FAVORIT 600

The KTEML0014complete clutch kit is a compatible replacement part designed for Fendt Favorit 600 and Favorit Classique tractors. It includes the main components that need to be replaced when servicing a worn clutch, along with a 310 mm drive plate. This kit is ideal when you’re looking for a complete set rather than individual parts.

A kit designed for clutch repair

The clutch provides a temporary connection between the engine and the transmission. On a tractor, it is engaged during startup, when shifting gears, and for the smooth transmission of power. When several components show signs of wear, replacing the complete kit allows you to start fresh with a uniform assembly rather than replacing just a single part.

This part number addresses a common workshop need: replacing the essential clutch components in a single operation, while retaining the part numbers specific to the machine in question.

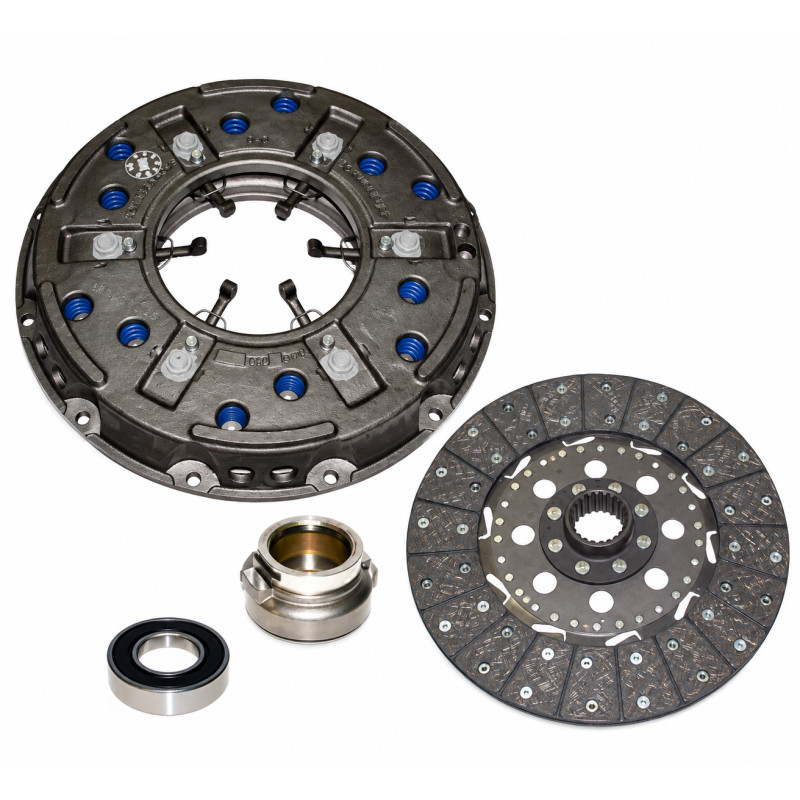

Contents of Kit KTEML0014

The kit includes the following parts:

• clutch mechanism;
• 310 mm drive plate;
• clutch release bearing;
• pilot bearing.

The inclusion of the disc, thrust bearing, and pilot bearing helps address the main wear points encountered during a clutch replacement. The disc diameter is a decisive selection criterion here, especially when multiple configurations may exist within the same tractor family.

Fendt Applications and Selection Guidelines

This part number is intended for Fendt tractors in the Favorit 600 and Favorit Classique series. If you are working on one of the models listed in the compatibility section of this sheet, first verify the exact model designation of the tractor and the diameter of the installed clutch disc.

Before ordering, it is also helpful to inspect the overall condition of the removed clutch to confirm that replacing the mechanism, disc, thrust bearing, and pilot bearing is indeed necessary for your repair. A single model series may have had several different configurations depending on the version.

When to Consider Replacing the Complete Kit

A complete kit is generally recommended when the clutch slips, shifting becomes difficult, vibrations occur during startup, or a noise is heard from the control mechanism. An uneven clutch pedal or less precise operation may also indicate that the entire assembly needs servicing.

When disassembling, take the opportunity to inspect the associated components according to the procedure specified for your tractor. To select the correct part number, base your choice on the exact model of the machine and the diameter of the drive disc. If these two points match, you’ll have a clear basis for identifying the correct part.

Dimensions and Technical Specifications

• 310 mm

Compatibility by Make and Series

Fendt

• Compatible brand

Fendt · Condition

• New
• Favorit 600 LS
• Favorit 600 LSA
• Favorit 610 LS
• Favorit 611 LS
• Favorit 611 S
• Favorit 4 S
• Favorit 10 S
• Favorit 10 SA
• Favorit 11 S
• Favorit 11 SA
• agricultural transport
• haymaking
• livestock farming

Fendt · Favorit Series

• 600

FAQ — Frequently Asked Questions

What does the KTEML0014 clutch kit include?

This kit includes the main components needed to replace the clutch: the clutch mechanism, a 310 mm drive plate, the clutch release bearing, and the pilot bearing. This kit is suitable when you want to replace wear parts related to the clutch control and power transmission at the same time.

For which Fendt tractors is this clutch kit intended?

This kit is designed for Fendt Favorit 600 and Favorit Classique tractors, including the following models: Favorit 600 LS, 600 LSA, 610 LS, 611 LS, 611 S, 4 S, 10 S, 10 SA, 11 S, and 11 SA. Always verify the exact model designation of your tractor before ordering.

Does the 310 mm diameter refer to the entire mechanism?

No, the 310 mm refers to the drive plate included in the kit. This measurement is useful for distinguishing one clutch version from another within the same tractor family. Check this diameter on the old part or in your machine’s documentation.

When should you replace a complete clutch kit rather than a single part?

A complete replacement is recommended when multiple components are worn out at the same time or when the clutch exhibits slippage, difficulty shifting gears, vibrations upon startup, or abnormal noise. Replacing the entire assembly prevents the installation of wear parts at different levels of wear.

Original equipment part numbers and brands are provided for comparison purposes only. This does not imply that these are original equipment parts.
