Deutz 06/07 Clutch Kit KTEMDEPOP | CAM AGRI

DUAL CLUTCH KIT FOR DEUTZ 06 AND 07 SERIES KTEMDEPOP

Ref.: KTEMDEPOP

€649.15Tax excl.€778.98 Tax incl.-15%
€763.71 Tax excl.

In stock, Shipping within 24 hours


KTEMDEPOP dual clutch kit for Deutz 06 and 07 series tractors, with 300/250 mm mechanism, 250 mm clutch disc, thrust bearing, and pilot bearing. Checking the 36 x 42 mm and 26 x 32 mm splined profiles helps ensure you select the correct part number.


This product is compatible? Check compatibility

Product's description

The KTEMDEPOP dual-clutch kit is designed for Deutz tractors in the 06 and 07 series equipped with a dual clutch. It includes the components typically replaced during a rebuild: the clutch mechanism, clutch disc, thrust plate, and pilot bearing. To ensure you select the correct part number, the clutch dimensions and spline profiles are the most useful references, in addition to the compatibility information listed in the product sheet.

A complete kit for rebuilding the clutch

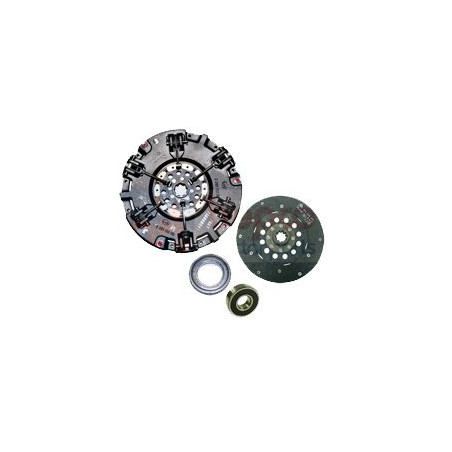

This kit includes the main components of the clutch system:

  • a 300/250 mm 6-finger dual-clutch mechanism, with 8 splines measuring 36 x 42 mm;
  • a 250 mm clutch disc with 10 splines measuring 26 x 32 mm;
  • a 65 x 97 x 23 mm clutch thrust plate;
  • a pilot bearing measuring 20 x 52 x 15 mm.

This assembly is suitable when multiple wear parts need to be replaced in a single service. On an agricultural tractor, replacing the entire assembly prevents the need to remove the transmission again shortly thereafter due to a clutch release bearing or pilot bearing that was left in place while operating with the mechanism and disc.

The Role of the Dual Clutch on the Tractors in Question

On this type of tractor, the dual clutch is used to control forward motion and PTO drive. It is a common configuration on Deutz tractors of this generation, particularly for tasks that require PTO power. The clutch assembly connects the engine to the transmission and disengages it when the operator activates the control.

As wear sets in, several signs may appear: slipping, difficulty shifting gears, vibrations during startup, or noise coming from the control mechanism. In this context, a complete kit provides a comprehensive solution for restoring the main components of the clutch.

Useful identifiers for this part number

The first thing to check is the mounting type: this part number corresponds to a dual-clutch system. Next, check the diameters and spline profiles. Here, the mechanism is listed as 300 / 250 mm, while the clutch disc is specified as having a diameter of 250 mm. The specified profiles are 36 x 42 mm for the mechanism and 26 x 32 mm for the clutch disc.

These values are important for distinguishing between assemblies that look similar but are technically different. If your tractor has been modified at any point, it’s best to inspect the existing clutch and the relevant shaft directly before completely disassembling it.

When to Replace This Kit

This kit is suitable for transmission overhaul, replacing a worn clutch, or tractor restoration. During the procedure, it is also helpful to check the condition of the flywheel, the wear on the splines, and the specified adjustment for your machine. If you are looking for a part number that matches these dimensions and these Deutz applications, the KTEMDEPOP is a kit worth checking against your installation.

Dimensions and Technical Specifications

  • 300 mm
  • 36 x 42 mm
  • Diameter: 250 mm
  • 26 x 32 mm
  • Dimensions: 65 x 97 x 23 mm
  • Dimensions: 20 x 52 x 15 mm

Compatibility by make and model

Deutz

  • 6006F
  • 6806F
  • 7006F
  • 7206F
  • 6807
  • 7007
  • 7207
  • 7807
  • agricultural transportation
  • livestock farming

FAQ — Frequently Asked Questions

What exactly does the KTEMDEPOP clutch kit contain?

This kit includes the main components needed for a clutch rebuild: a 300/250 mm 6-finger dual mechanism, a 250 mm clutch disc, a 65 x 97 x 23 mm thrust bearing, and a 20 x 52 x 15 mm pilot bearing. The indicated grooved profiles help ensure proper installation.

Is this kit compatible with the Deutz 6006F, 6806F, 7006F, 7206F, 6807, 7007, 7207, and 7807?

Yes, this part number is designed for the Deutz models listed in the compatibility section. To confirm your selection, also check for the presence of a dual clutch and verify the dimensions listed for your setup: 300 / 250 mm mechanism, 250 mm disc, and 36 x 42 mm and 26 x 32 mm profiles.

What do the dimensions 300 / 250 mm and 250 mm listed on this kit refer to?

The 300/250 mm dimensions refer to the dual-clutch mechanism, with a primary diameter of 300 mm and a secondary diameter of 250 mm. The 250 mm dimension corresponds to the clutch disc included. These dimensions are crucial for distinguishing between similar but different versions.

Why should the thrust bearing and pilot bearing also be replaced during a clutch overhaul?

Replacing the thrust bearing and pilot bearing at the same time makes sense during a complete overhaul, since these parts work in conjunction with the clutch. If either of them is worn, the tractor may exhibit noise, erratic operation, or less precise control—even with a new clutch mechanism and disc.

The original replacement part numbers and brands are provided for comparison purposes only. This does not imply that these are original parts.

For more information, see data sheet in "product feature" section.

Product's features

FR
Brand DEUTZ, DEUTZ-FAHR
Family Spare parts for tractors
Origin Adaptable part - Non Authentic
Net Weight (kg) 0
Customs Code 87089997
Tractor Deutz
Model
6807
Model
7007
Model
7207
Model
7807
