LEFT SIDE BELTS CLAAS COMMANDOR 228 CS COMBINE HARVESTER

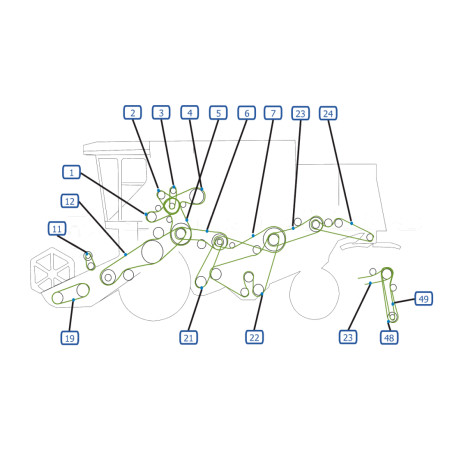

▶️ Locate the number of the belt you are looking for on the image opposite (you can enlarge the image if necessary by clicking on it) and refer to the "List of spare parts" tab below to find your belt.
▶️ By clicking on the small magnifying glass you can add your item to the basket .
▶️ If you do not see all the belts, click on "See other spare parts" at the bottom of the page to display all the items.
- Free quotation
- French company
List of spare parts
1 x HYDRAULIC PUMP BELT FROM NO. 15900371 - 633030.2
Ref.: GA0201108
1 x HYDRAULIC PUMP BELT UP TO NO. 15900370 - 629002.1
Ref.: GA1601103
1 x AIR CONDITIONING COMPRESSOR BELT - 629908.1
Ref.: GA1443160
1 x HOPPER DRAIN BELT FROM NO. 15900371 - 661093.0
Ref.: GA1423202
1 x HOPPER DRAIN BELT UP TO NUMBER 15900370 - 629763.0
Ref.: GA1423210
1 x MAIN BELT 5 GROOVES FROM NO 15900371 - 644403.0
Ref.: GA1426260
1 x RETURN BELT CLEANING FROM NUMBER 15900371 - 644141.1
Ref.: GA1429343
1 x RETURN BELT CLEANING UP TO NUMBER 15900370 - 603336.1
Ref.: GA1429345
1 x CUTTER BAR DRIVE BELT FROM NO 15900461 - 644419.0
Ref.: GA0302428
1 x CUTTER BAR DRIVE BELT UP TO NUMBER 15900460 - 603430.0
Ref.: GA1402412
1 x CUTTER BAR DRIVE BELT DISTANCE BETWEEN SHAFT 1463 MM - 603017.3
Ref.: GA1402436
1 x CUTTING HOUSING BELT UP TO 5.10 M - 713506.1 - 713506.2
Ref.: GA0101200
1 x CUTTING HOUSING BELT FROM 6.00 M - 671013.1
Ref.: GA0202230
1 x RETURN BELT SPREADER SMALL STRAW - 713506.1 - 713506.2
Ref.: GA0101200
1 x RETURN BELT SPREADER SMALL STRAW - 506671.1
Ref.: GA1454323
1 x BELT SPREADER SMALL STRAW 531 RPM FROM NO 70910057 - 501925.0
Ref.: GA0201215
1 x BELT SPREADER SMALL PAIL 531 RPM UP TO NUMBER 70910056 - 802931.0
Ref.: GA1401241
1 x BELT SPREADER SMALL STRAW 676 RPM FROM NO 70910057 - 687046.1
Ref.: GA0301211
1 x BELT SPREADER SMALL STRAW 676 RPM UP TO NUMBER 70910056 - 750288.0
Ref.: GA1401234
