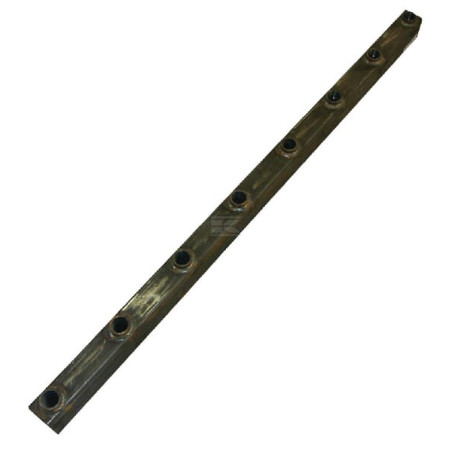

LOADER TEETH SET - 1400 MM - 8 BUSHINGS

Tine frame for front loader - 1.40 metre - 8 bushes

A wide, robust front loader tine frame

The 1.40-metre (1400 mm) front-loader tine frame is designed for demanding agricultural handling jobs, where a greater width provides greater load capacity. It is fitted with 8 10° conical tines, ensuring a good compromise between material penetration, handling capacity and stability.

Ideal for handling manure, forage, straw, silage or bulk materials, this frame offers a wide action zone for agricultural front-end loaders.

Frame technical specifications

• Overall length: 1.40 m (1400 mm)

• Number of bushes: 8

• Beam: 80 x 60 mm

• Beam thickness: 4 mm

• Bush spacing: positions evenly spaced along length

• Tine type: 10° cone loader tines

Steel design ensures maximum strength while facilitating uncompromising daily use.

Compatible loader tines (10° cone)

This frame is compatible with the same bolt-on loader tine models as for the other lengths, offering the flexibility to choose according to the materials to be processed:

• Loader tooth M20 x 1.5 - L 1100 mm
  Ref. CAM221156

• Loader tooth Ø35 - L 1250 mm - M20 x 1.5
  Ref. DDKV125035

• Loader tooth Ø35 - L 810 mm - M20 x 1.5
  Ref. DDKV81035

This choice allows you to adapt the tines to the working depth, type of material and conditions of use.

Agricultural applications

This front-loader tine frame is ideally suited to a wide range of applications:

• Manure handling

• Loading forage and silage

• Handling straw and green waste

• Versatile agricultural work

Suitable for farms, agricultural contractors and farm maintenance services.

✅ Advantages of the 1.40 m tine frame

✔ 1 .40-meter width suitable for 8 tines
✔ 8 bushes for even distribution
✔ Robust beam 80 x 60 x 4 mm
✔ Compatible with 10° conical teeth
✔ Simple, durable mounting
✔ Suitable for front-end loaders

In a nutshell

The front loader tine frame - 1.40 m with 8 bushes is a robust, versatile and high-performancesolution for agricultural handling work. Its compatibility with several models of 10° conical tines means it can be adapted to different needs and equipment.
