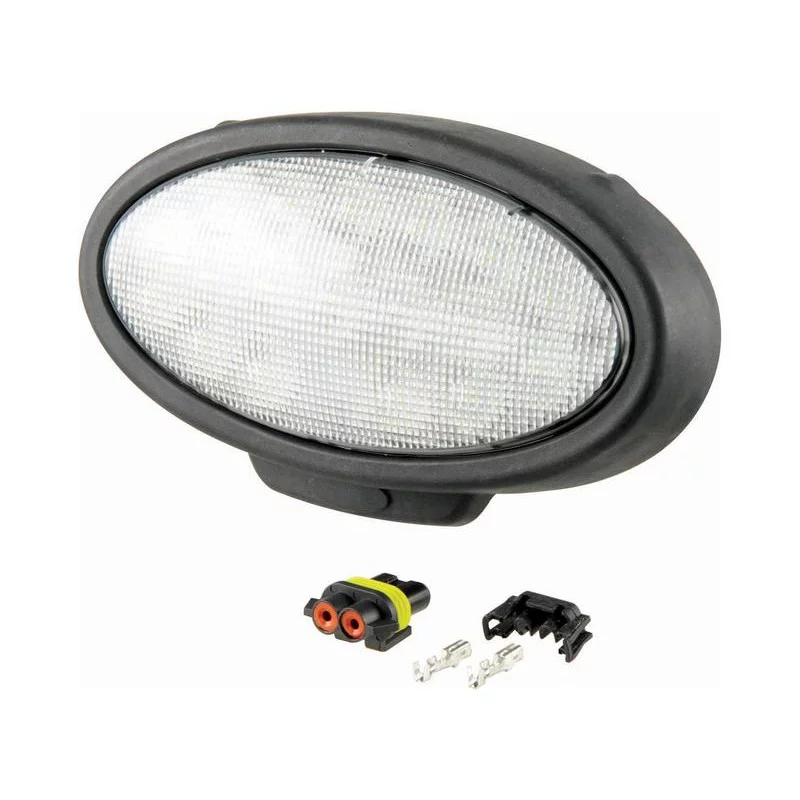

LED Work Light for Cab Roof – Part No. CAM199425

The CAM199425 LED work light is designed to provide powerful, even lighting on John Deere tractors, combine harvesters, and agricultural machinery. With its 18 high-performance LEDs delivering up to 4,100 theoretical lumens and 3,500 actual lumens, it significantly improves visibility during nighttime operations or in low-light conditions.

Its rugged aluminum housing, IP69K waterproof rating, and operating voltage range of 10 to 30 V make it a work light perfectly suited for intensive agricultural use.

Powerful lighting for safe working conditions

The CAM199425 LED headlight effectively illuminates work areas to improve driver comfort and safety during nighttime operations.

It is ideally suited for:

Applications

• tilling;
• seeding;
• harvesting;
• transport;
• handling;
• spraying;
• forestry work;
• farm maintenance.

Its narrow beam provides excellent range for optimal visibility in front of the machine.

Benefits of the CAM199425 LED Headlight

This LED headlight features a rugged design built for demanding agricultural environments.

Key Features

• 3,500 effective lumens;
• 4,100 theoretical lumens;
• 18 high-performance LEDs;
• 10 to 30-volt power supply;
• Low power consumption:
  • 2.5 A at 12 V;
  • 1.25 A at 24 V;
• narrow beam with long range;
• 160° beam angle;
• high-strength aluminum housing;
• high-strength safety plastic lens;
• IP69K protection rating;
• CE and ECE R10 certification;
• interference-suppressed headlight;
• DT connector;
• mounting bracket for installation on the cab roof;
• right- or left-side installation.

Technical Specifications

Dimensions

• Total length: 190.5 mm
• Height: 108 mm
• Width: 70.4 mm
• Cable length: 100 mm

Performance

• Light source: LED
• Number of LEDs: 18
• Effective lumens: 3,500
• Theoretical lumens: 4,100
• Lux value: 478
• Beam: narrow
• Angle: 160°

Electrical Specifications

• Voltage: 10 to 30 V
• Current draw at 12 V: 2.5 A
• Current draw at 24 V: 1.25 A
• Connector: DT

Resistance

• Operating temperature: -45°C to +60°C
• Protection rating: IP69K
• Aluminum housing
• Safety plastic lens
• Noiseless
• CE and ECE R10 compliant
• RoHS compliant

John Deere compatibility

The CAM199425 LED work light is compatible with the following John Deere machines.

5R Series

• 5090R
• 5100R
• 5115R
• 5125R (North American Edition)

6R Series

• 6110R
• 6115R
• 6120R
• 6125R
• 6130R
• 6140R
• 6145R
• 6150R
• 6155R
• 6170R
• 6175R
• 6190R
• 6195R
• 6210R
• 6215R

7R Series

• 7210R
• 7230R
• 7250R
• 7270R
• 7290R
• 7310R

8R / 8RT Series

• 8225R
• 8245R
• 8245R (South America Edition)
• 8270R
• 8270R (South America Edition)
• 8295R
• 8295R (South America Edition)
• 8320R
• 8320R (South America Edition)
• 8320RT
• 8335R
• 8345R
• 8345R (South America Edition)
• 8345RT
• 8370R
• 8370R (South America Edition)
• 8370RT
• 8400R
• 8400R (South America Edition)

9R / 9RT / 9RX Series

• 9370R
• 9420R
• 9420RX
• 9470R
• 9470RT
• 9470RX
• 9520R
• 9520RT
• 9520RX
• 9570R
• 9570RT
• 9570RX
• 9620R
• 9620RX

Combine Harvesters

• T550
• T560
• T660
• T670
• W540
• W550
• W650
• W660

Why Choose an LED Headlight?

LED headlights offer many advantages over older halogen headlights:

• much more powerful lighting;
• lower power consumption;
• very long lifespan;
• greater resistance to vibrations;
• instant operation;
• low heat output;
• excellent visibility during nighttime work.

Why Choose Camagris?

At Camagris, we offer a wide range of lighting equipment for tractors and agricultural machinery: LED headlights, work lights, rotating beacons, taillights, front headlights, cab lighting, and electrical accessories compatible with the leading agricultural brands.

When you order from Camagris, you’ll enjoy:

• premium-quality parts and equipment;
• fast delivery in France and Europe;
• items in stock for many products;
• customer service specializing in agricultural parts;
• excellent value for the money.

The CAM199425 LED work light is the ideal solution for improving the lighting on your John Deere and working efficiently, regardless of lighting conditions.
