Diagnosing an out-of-order Tractor Starter

The starter motor is an essential part of your tractor's starting system, and when it malfunctions it can bring your machine to a standstill, causing costly delays. Diagnosing a faulty starter requires an understanding of the various components and the signs of malfunction. Here's a comprehensive guide to diagnosing an out-of-service (OOS) tractor starter, taking into account the main starter brands and common problems.

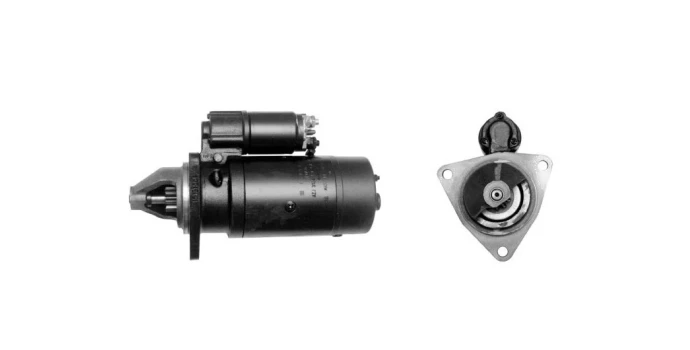

How to Diagnose an Out of Order Tractor Starter : Complete Guide

The main brands of Tractor starters

Many modern tractors are equipped with starters from well-known manufacturers, each offering specific features:

• Iskra Letrika iskra Letrika's high-quality starter motors are renowned for their robustness and reliability, and are used in many tractors.
• Mahle mahle is a brand synonymous with innovation and durability, offering starters capable of operating in extreme conditions.
• Bosch a world leader in the automotive components industry, Bosch starters are renowned for their energy efficiency and reliability.
• Magneti Marelli : This Italian brand is renowned for its high-precision electrical components, including starters.
• Denso denso offers compact, high-performance starters, widely used in tractors for their ability to deliver high torque.
• ADI aDI offers robust starters for demanding agricultural environments.
• Prestolite prestolite is a specialist brand of starter motors for industrial vehicles, offering reliable, long-lasting products.
• Lucas lucas is a historic brand in the field of electrical components, with starters renowned for their longevity and performance.

Signs of starter malfunction

1. Solenoid problems

   • Symptoms : An audible click but no start-up.
   • Explanation: The solenoid acts as a switch for the starter. If it is defective, it will fail to send battery current to the starter, preventing the engine from running.

2. Drive Sprocket

   • Symptoms : Starter turns, but engine won't start.
   • Explanation: The drive pinion must engage with the flywheel to turn the engine. If the pinion is worn or does not engage properly, the starter will not start the engine.

3. Lug or cable problems

   • Symptoms : Intermittent starting or no reaction at all.
   • Explanation: The terminals or cables connecting the battery to the starter may be loose, damaged or oxidized. This results in a poor electrical connection, preventing the starter from operating correctly.

4. Masse braid or Ground Cable

   • Symptoms : Slow start or no start at all.
   • Explanation: The earth braid or earth cable provides the return path for the electric current to the battery. If this cable is damaged, corroded or incorrectly connected, the electrical circuit is interrupted, affecting starter operation.

5. Oxidation of Battery terminals

   • Symptoms : Difficult starting or no starting at all.
   • Explanation: Oxidation of battery terminals can lead to poor electrical connection, reducing current flow to the starter.

6. Problems with Battery

   • Symptoms : Slow starting, starter struggling to turn, or no response at all.
   • Explanation: A battery that is too weak, discharged or of poor quality may not supply enough current to operate the starter. In addition, a dead or undersized battery can cause similar problems.

7. Starter with gearbox

   • Advantages : A geared starter uses a gear to increase torque while reducing the speed of the starter motor. This enables the motor to be started more quickly and with less effort from the battery.
   • How to use : These starters are particularly useful for tractors with heavy diesel engines or for operations in cold climates, where extra torque is needed to start the engine.

Starter diagnosis

To diagnose an out-of-order starter, follow these steps:

1. Check the Battery

   • Make sure the battery is in good working order and sufficiently charged.
   • Clean battery terminals to remove any oxidation.

2. Inspect cables and connectors

   • Check all cables and connectors between battery and starter. Make sure they are tight, undamaged and free of corrosion.

3. Test the Solenoid

   • If you hear a click but the motor doesn't start, test the solenoid to make sure it's working properly.

4. Examine the Drive Sprocket

   • If the starter runs but the motor won't start, inspect the drive pinion for wear or blockage.

5. Check the Mass Braid

   • Make sure that the ground braid is properly connected and in good condition. Replace if necessary.

Conclusion

Diagnosing an out-of-order tractor starter requires careful attention to several components, including the solenoid, drive pinion, cables and battery. Understanding the signs of malfunction and knowing where to look can help you resolve problems quickly, minimizing downtime. At Camagriswe offer a complete range of high-quality starters for all major tractor brands, guaranteeing reliable, long-lasting performance. Don't hesitate to contact us to find the right starter for your needs.

How to test a starter motor, what are the main symptoms, what noise does a faulty or defective starter make, what to do if a starter motor won't turn over or if the battery indicator light is on, what are the visual checks of a starter motor in the event of a problem or if the starter motor won't start the engine?

How to test a Starter complete Guide

The starter motor plays a crucial role in starting your tractor's engine. When it's not working properly, it can prevent the engine from starting, leading to costly downtime. Here's how to test a starter, identify the main symptoms of a faulty starter, and the steps to take if your starter won't turn over or the battery warning light is on.

How to Test a Starter

Testing a starter requires a few basic tools and a methodical approach to identifying the cause of the problem.

1. Battery check

   • Step 1: Before testing the starter, make sure the battery is in good condition and sufficiently charged. Use a voltmeter to check the battery voltage. It should be around 12.6V for a fully charged battery.
   • Step 2: If the voltage is low, recharge or replace the battery before continuing.

2. Solenoid test

   • Step 1: If the starter doesn't turn, listen for the sound the solenoid makes when you turn the key. A quick click indicates that the solenoid is working, but if you don't hear any noise, it may be faulty.
   • Step 2: Use a continuity tester to check whether the solenoid allows current to flow when activated. If not, the solenoid must be replaced.

3. Starter test

   • Step 1: If the solenoid works, but the motor won't run, disconnect the starter and test it directly with a power source. Use jumper cables to connect the starter directly to the battery.
   • Step 2: If the starter runs when connected directly, the problem could be in the cables or connections. If the starter still does not turn, it is probably defective and needs to be replaced.

4. Visual Inspection

   • Step 1: Visually inspect the starter for corrosion, burns or visible damage to the starter housing.
   • Step 2: Check electrical connections and make sure cables are secure and in good condition.

Main symptoms of Starter Faulty

1. Click but No Start

   • Symptom: You hear a click when you turn the key, but the engine doesn't run.
   • Possible cause: Defective solenoid or jammed drive pinion.

2. Slow or hard start

   • Symptom: Engine runs slowly before starting, or does not start at all.
   • Possible cause: Low battery, faulty battery cables, or damaged earth braid.

3. No Noise

   • Symptom: No noise is emitted when you turn the key.
   • Possible cause: Battery problem, bad wiring, or starter completely out of order.

4. Squeaking noise

   • Symptom: A grinding noise is heard during start-up.
   • Possible cause: Worn or defective drive sprocket, damaged flywheel.

Sounds of a failed or faulty starter

• Quick or Single Click : Often indicates a faulty solenoid or low battery.
• Squeaking or squealing noise drive sprocket: May mean that the drive sprocket does not engage properly with the flywheel, or that the sprocket is worn.
• No Noise this may indicate an electrical problem, such as a discharged battery, faulty wiring or a completely disabled starter.

What to do if a Starter does not turn or if the Battery Indicator Light is on

1. Check the Battery

   • Action: Make sure the battery is charged and the connections are clean and secure. If the battery indicator is lit, this may indicate a charging problem or a low battery.

2. Check Connections

   • Action: Inspect all cables and electrical connections for signs of corrosion or loosening. Clean and tighten connections if necessary.

3. Test Solenoid and Starter

   • Action: Use the methods described above to test the solenoid and starter. If either is faulty, it must be replaced.

4. Check the Mass Braid

   • Action: Make sure the grounding braid is intact and well connected. Replace it if it is worn or corroded.

Visual Controls of a Starter in the event of a problem

1. Check Electrical Connections

   • Look for loose, corroded or damaged cables. Make sure all connections are clean and tight.

2. Inspect Drive Sprocket

   • Check the condition of the drive sprocket for wear or damage. A damaged pinion will not engage properly with the flywheel.

3. Look for signs of overheating

   • Examine the starter for signs of overheating, such as burn marks or discoloration. This could indicate an internal problem requiring starter replacement.

4. Check the Mass Braid

   • Make sure the ground braid is in good condition and properly connected. Poor grounding may prevent the starter from operating properly.

Conclusion

Diagnosing a faulty tractor starter requires a systematic approach, starting by checking the battery and electrical connections, then testing the solenoid and starter itself. Symptoms such as clicking, grinding noises or the absence of noise can provide valuable clues to the cause of the problem. A failed starter should be visually inspected for signs of damage, and defective components replaced to ensure reliable engine starting. At Camagriswe offer a wide range of quality starters for all makes and models of tractors, ensuring you find the right product for your specific needs.
