Hydraulic coupler - Hydraulic quick coupling

In the agricultural world, the hydraulic coupling is an indispensable tool for quick and safe connection and disconnection of your hydraulic systems. Whether screw-in, push-pull or suitable for high pressures, there are specific criteria to be met when choosing a coupling. How do you determine the right model? How to crimp it correctly? We address these questions and many more to help you make the right choice.

Understanding the role of hydraulic quick couplings

Hydraulic quick-release couplings play a crucial role in hydraulic systems, enabling efficient connection and disconnection of fluid lines. They are designed to minimize fluid loss and maintain a constant pressure optimal in the circuit.

These fittings are often used in a variety of working environments, such as agriculture, construction and manufacturing. Their design incorporates locking mechanisms that ensure a secure and rapid connection, even under high pressure.

Benefits include:

• Reduced maintenance time
• Improved safety thanks to non-return valves
• Ease of use with push-pull systems

These features make quick connectors an indispensable choice for meeting specific customer needs, guaranteeing both performance and reliability.

Hydraulic coupler types: push-pull, screw-in

Hydraulic push-pull couplings are particularly appreciated for their ease of use. They enable quick connection by simply pushing the two parts together, then just as easy disconnection by pulling them apart. This system is ideal for environments where tool changes are frequent, such as in the agricultural sector.

Screw couplings, on the other hand, offer a more secure connection. They are often used in applications requiring a solid, vibration-resistant connection. The connection is made by screwing the male coupling onto the female coupling, ensuring optimum sealing even under high pressure.

Here are just a few of the advantages of screw-in hydraulic couplings:

• Increased safety thanks to a fixed connection
• Vibration resistance and shock resistance
• Adapted to high-pressure conditions

These features make screw couplings indispensable for systems requiring maximum robustness and reliability.

Choosing the right flexible for its hydraulic coupling

To choose the right hose for your hydraulic connection, several criteria need to be taken into account. First of all, it's essential to consider the work pressure required for your application. Make sure the hose can withstand the maximum pressure without breaking.

Next, assess the operating temperature. Hoses must be able to withstand temperature variations to avoid premature deterioration.

Also take into account the inside diameter of the hose, which must correspond to the desired fluid flow rate. An inappropriate diameter can lead to pressure loss and affect system efficiency.

Here are a few points to check when making your choice:

• Hose material: rubber, thermoplastic, or metal
• Chemical compatibility with the fluid used
• Radius of curvature to avoid excessive bending

By following these recommendations, you will optimize the safety and performance of your hydraulic system.

Different sizes: 3/8, 1/2, 3/4

Sizes 3/8, 1/2 and 3/4 are commonly used in hydraulic systems for various applications. Each of these sizes corresponds to a specific fitting diameter, thus influencing the fluid flow rate and pressure supported.

For example, the 3/8 size fitting is often used for applications requiring quick and easy handling, such as hand-held tools. They offer a good compromise between flexibility and pressure resistance.

The 1/2 size is ideal for systems requiring higher fluid flow rates. It is frequently used in agricultural and industrial hydraulic circuits.

Finally, the 3/4 connection is suitable for high-pressure, high-flow applications. It is perfect for heavy equipment and systems requiring increased robustness.

Here is a summary of common uses:

• 3/8: portable tools, small equipment
• 1/2: agricultural hydraulic circuits, industrial applications
• 3/4: heavy equipment, high pressure and high flow rates

How to crimp a hydraulic hose

To crimp a hydraulic hose nipple, start by selecting the right nipple and skirt for your application. Make sure the diameter matches the hose specifications.

Next, cut the pipe to the desired length using a clean pipe cutter. Remove any residue or burrs from the ends to ensure optimum connection.

Then insert the skirt onto the pipe. Apply a light coat of lubricant to the nozzle to ease insertion.

Push the ferrule into the pipe until the collar is in contact with the skirt. Now place the whole assembly in the crimping press.

Check that the tool is correctly calibrated for the pipe diameter. Activate the press and crimp according to the manufacturer's recommended settings.

After crimping, visually inspect the connection to make sure it's tight and secure.

Visit hydraulic couplingtractor hydraulic power take-off for agricultural applications

Hydraulic fittings are indispensable in the agricultural sector for connecting equipment to the hydraulic systems of tractors and other machinery. They guarantee fast, safe connections, making farmers' work easier.

Push-pull couplings, for example, enable instant connection without the need for tools, which is particularly useful when changing accessories frequently. These couplings are often made of galvanized carbon steel, ensuring durability and corrosion resistance.

For high-pressure applications, screw connections are the preferred choice. They offer optimum sealing, essential for preventing hydraulic fluid leakage. ISO standards, such as ISO 7241-1 "A", are commonly used to ensure interchangeability and compatibility.

The use of these fittings improves productivity by reducing maintenance downtime. They also ensure safety by minimizing the risk of accidental disconnection.

Hydraulic Push-Pull Valve Couplings: ISO-A Standard

Visit iSO-A push-pull hydraulic couplings are essential agricultural devices, designed to facilitate hydraulic connections on tractors and other agricultural equipment. Made of galvanized carbon steelthese couplings are robust and corrosion-resistant.

Standards for Hydraulic Couplings

• ISO 7241-1 "A" (ISO-A) this is the most common standard for rear couplers on agricultural tractors, offering universal interchangeability and a secure connection.
• ISO 7241-1 "B" (ISO-B) more suitable for industrial applications and park and garden equipment.

Advantages of Push-Pull couplers

Push-Pull couplings enable rapid connection and disconnection without fluid loss, even under pressure, guaranteeing greater safety and efficiency in the field. Their ergonomic design makes them easy to use, reducing downtime and improving productivity.

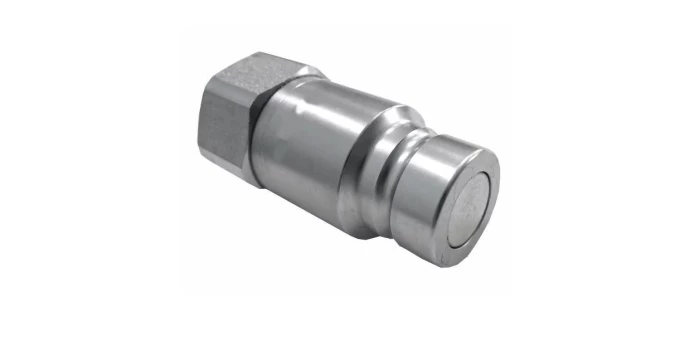

Flat-Face Hydraulic Couplings ISO 16028

Visit iSO 16028 flat-face hydraulic couplings are designed for demanding applications requiring clean and secure connections, such as construction machinery, industrial equipment and agricultural machinery.

Benefits of ISO 16028 couplings

• Flat-face design oil seal: Prevents oil leaks and reduces dirt intrusion during connection and disconnection, keeping hydraulic systems free from contaminants.
• ISO 16028 standard : Ensures universal interchangeability, facilitating replacement and compatibility between different manufacturers.
• Robustness : Made generally from steel with a rustproof surface treatment, they are suitable for harsh environments.

Use and applications

These couplings are particularly well-suited to systems requiring pressurized connections, offering high reliability for tractors, loaders and other hydraulic equipment.

Flat-Face High-Pressure Hydraulic Screw-Type Couplings Male or Female

Visit screw-on flat-face hydraulic couplings are robust fittings designed for high-pressure applications, offering a secure connection even under extreme conditions. They are compatible with similar profiles such as Stucchi and are available in 1/4" à 2".

Technical data, flow rate, pressure, connections

• Permissible pressure up to 600 bar
• Material high-strength carbon steel
• Flow up to 1000L/min
• Seals nBR (nitrile) for -20°C to +100°C, Teflon anti-extrusion
• Connection screw connection for easy connection and disconnection under residual pressure on both sides

Benefits and applications

Flat-face screw-on couplings minimize the risk of leaks and contamination in hydraulic systems, making them ideal for agricultural, industrial and construction machinery. Their screw-on design guarantees a firm, secure connection, even under high pressures, while facilitating handling when lines are under residual pressure.

Push-Pull Hydraulic Couplings Special Tractor

Visit hydraulic couplings push Pull rapids are specially designed for agricultural tractors, making it easier to connect implements to the hydraulic circuit. These couplers feature a female module in 1/2" ISO A standardwhich can be easily connected to the equipment. They are available with different tractor-side layouts, the most common being :

• Male M22x150the standard most widely used in agriculture.
• 7/8 SAE and 7/8 JIC bulkhead pass-through.
• Male 15L DIN, M18x150 and 1" ORFS.

These various options ensure maximum compatibility with the different types of hydraulic circuits found on tractors. Their robust design and interchangeability make them easy to use and maintain, while guaranteeing fast, reliable connection of farm implements.

Advantages of Push-Pull Couplings for Tractors

1. Easy to connect : Thanks to their ISO A module, these couplings can be easily connected to the hydraulic circuits of farm implements, reducing downtime.

2. Wide Compatibility the various male layouts enable us to adapt to the most common hydraulic configurations found on modern tractors.

3. Robustness and durability : Designed to withstand demanding working conditions, these couplings ensure long-lasting performance even in harsh agricultural environments.

4. Reliability and safety : Connections and disconnections are leak-free, guaranteeing optimum safety in the field.

Conclusion

Push Pull hydraulic quick couplers are indispensable for farmers using implements that require frequent and secure hydraulic connections. Their versatility and ease of use make them an essential choice for maximizing the efficiency of farming operations. At Camagriswe offer a complete range of couplings to suit all tractor requirements and configurations.

What is a hydraulic coupler?

A hydraulic coupler is a device that enables hydraulic lines to be quickly connected or disconnected from equipment without losing fluid or introducing contaminants. Primarily used on tractors and agricultural machinery, it facilitates the transmission of the hydraulic pressure required to operate attached implements, such as loaders, trailers and other equipment. Different types of coupling are available, such as valved, flat-face or push-pull, each adapted to specific uses to ensure a reliable, leakproof connection.

How to choose a hydraulic coupling

When choosing a hydraulic connection, here are the key points to consider:

1. Thread type make sure the connection thread matches that of your hydraulic system (metric, BSP, NPT, etc.).

2. Working pressure check that the connection can withstand the maximum pressure of your hydraulic system.

3. Material choose a material compatible with your fluid (steel, stainless steel, brass, etc.).

4. Connection type determine whether you need screw-on, flat-face or push-pull fittings, depending on the application.

5. Sealing and Standards : Choose fittings that comply with safety and performance standards (ISO, DIN).

These criteria will ensure that you make the right choice for your hydraulic needs.

How do you determine a hydraulic connection?

To determine a hydraulic connection, follow these steps :

1. Identify the thread measure the outside diameter of the thread and the pitch (distance between thread crests). Use tools such as thread gauges or measuring rings.

2. Check Thread Type determine the thread type (metric, BSP, NPT, JIC, etc.) by comparing dimensions with reference tables.

3. Check Seal Type note whether the fitting is conical, flat or O-ring to identify the type of seal.

4. Measuring Nominal Height check the nominal diameter to make sure it matches your application.

By following these steps, you'll be able to identify precisely the type of hydraulic connection required for your installation.
